Cylinder/piston assemblies
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_5.71.1.html[11/12/2015 18:40:47]

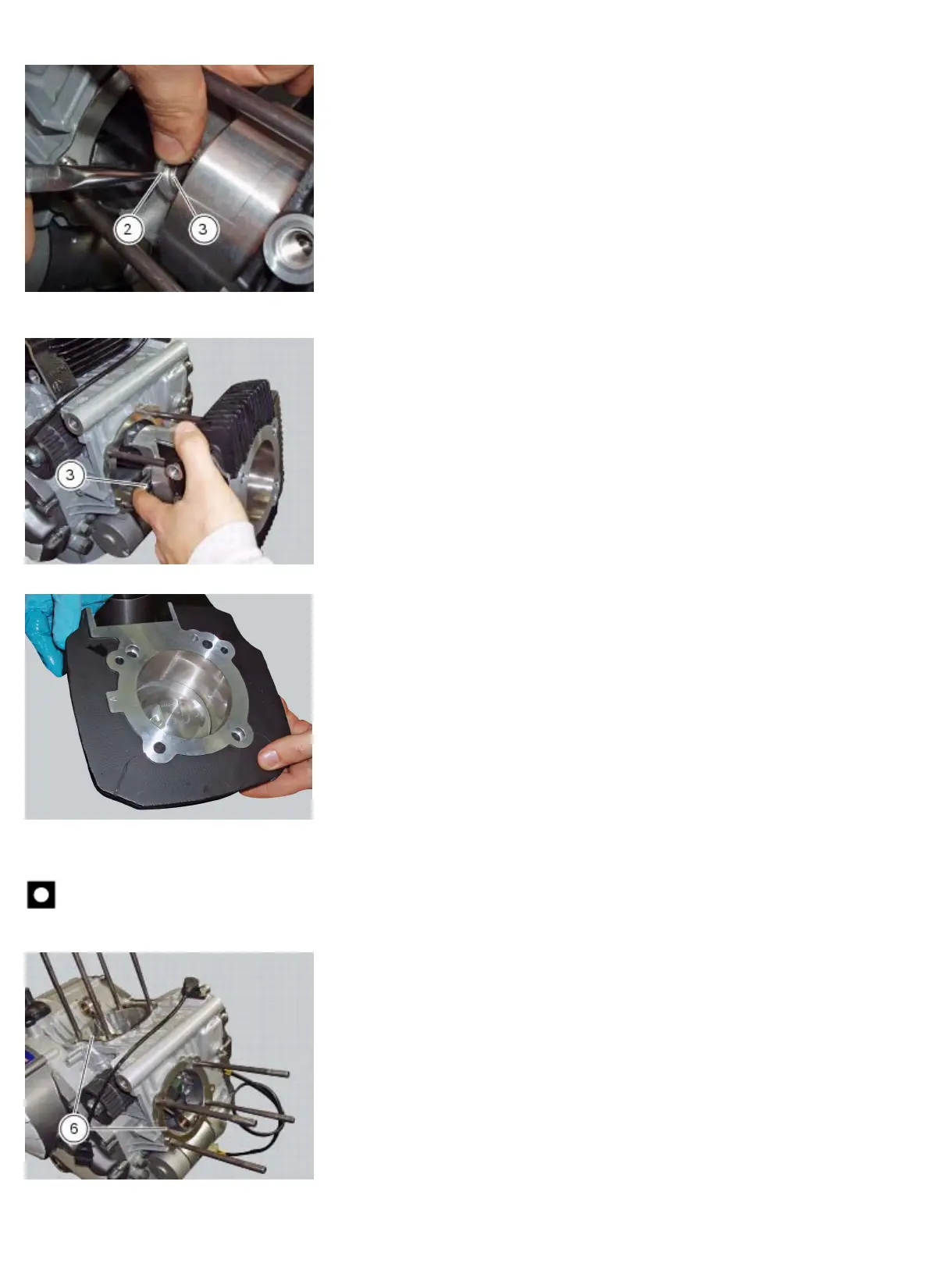

Remove the circlip (2) of the gudgeon pin (3) from the clutch side.
Working from the opposite side, drive out the gudgeon pin (3) sufficiently to release the connecting rod.
Lift the cylinder/piston assembly clear of the engine crankcase studs.
If work is to be carried out on the piston, carefully withdraw it from the cylinder.
To remove the vertical cylinder-piston assembly, proceed as described above for the horizontal cylinder.
Remove cylinder-crankcase gaskets (6) from the cylinder barrel.
Important
Mark the pistons to show from which cylinder they were removed:
V= Vertical - H= Horizontal.
Overhaul of the cylinder barrel/piston components
Overhauling the cylinder
