Cylinder/piston assemblies
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_5.71.1.html[11/12/2015 18:40:47]
Remove the timing belts and the
timing belt pulleys
9 - 4.2, Removal of the timing
system assembly
Remove the cylinder heads from
the engine
9 - 4.4,
Removal of the cylinder
head assembly

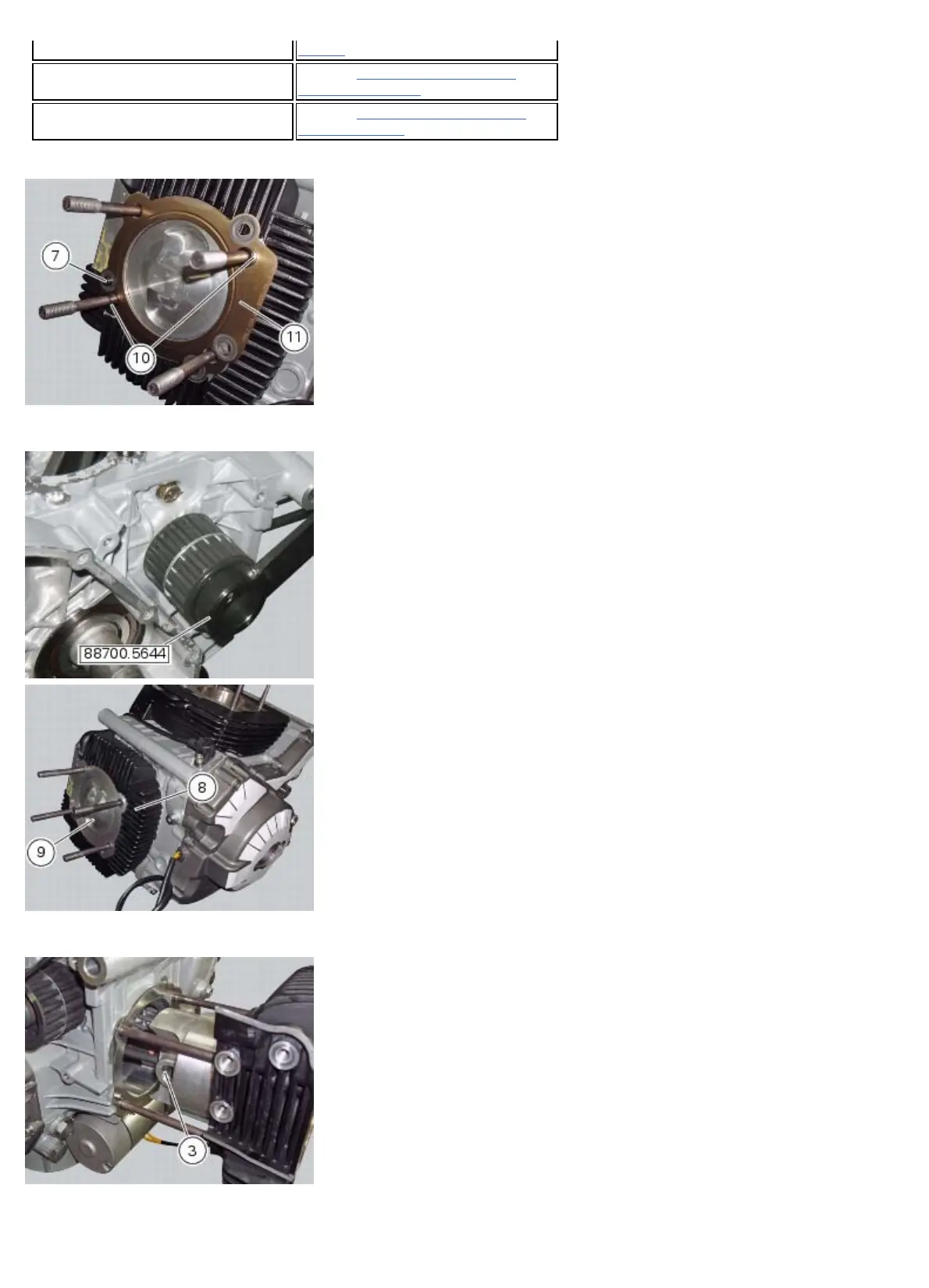

Remove the dowel (7), bushes (10) and head gasket (11) from their seats on the cylinder barrel.
Use the tool no. 88700.5644 to bring the horizontal cylinder (8) piston (9) close to TDC.
Carefully lift the cylinder barrel (8) off the crankcase, keeping it vertical.
If necessary, rock the cylinder slightly using both hands or tap its base gently with a rubber mallet. Continue to lift the
cylinder until you can access the gudgeon pin (3).
Since insertion of piston in the barrel is a difficult operation to perform at the time of reassembly, remove the piston
together with the barrel as an assembly as described below.
Close the opening in the engine crankcase with a rag or soft paper to prevent foreign material or solid combustion residue
from falling in.
