INTAKE MANIFOLDS
796 ABS
CYLINDER HEAD : TIMING SYSTEM
796 ABS
VERTICAL CYLINDER HEAD
796 ABS
HORIZONTAL CYLINDER HEAD
796 ABS
INTAKE MANIFOLDS
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
Removal of the intake manifolds
Operations Section reference
Remove the seat 5 - 3, Removal of the seat
Remove the tank covers 5 - 2,
Removal of the fuel tank
fairings
Remove the fuel tank 8 - 2,
Removal of the fuel tank
Remove the battery 6 - 2,
Removal of the battery
Remove the battery support 6 - 2,
Battery support
Disconnect ECU connector from
main wiring harness
6 - 12,
Removal of the electronic
control unit
Connect the starter motor/solenoid
cable
6 - 3,
Removal of the starter motor
Disconnect the HT leads 6 - 12,
Spark plug
Remove the ABS control unit 7 - 6,
Removing of the ABS control
unit
Remove the airbox 8 - 7,
Removal of the airbox
Disconnect the throttle cable 7 - 8.1,
Removal of the throttle
twistgrip
Remove the throttle body 8 - 6,
Removal of the throttle body
Note
The procedure can also be carried out with the engine installed in the frame. For clarity, the photos show the engine
removed from the frame.

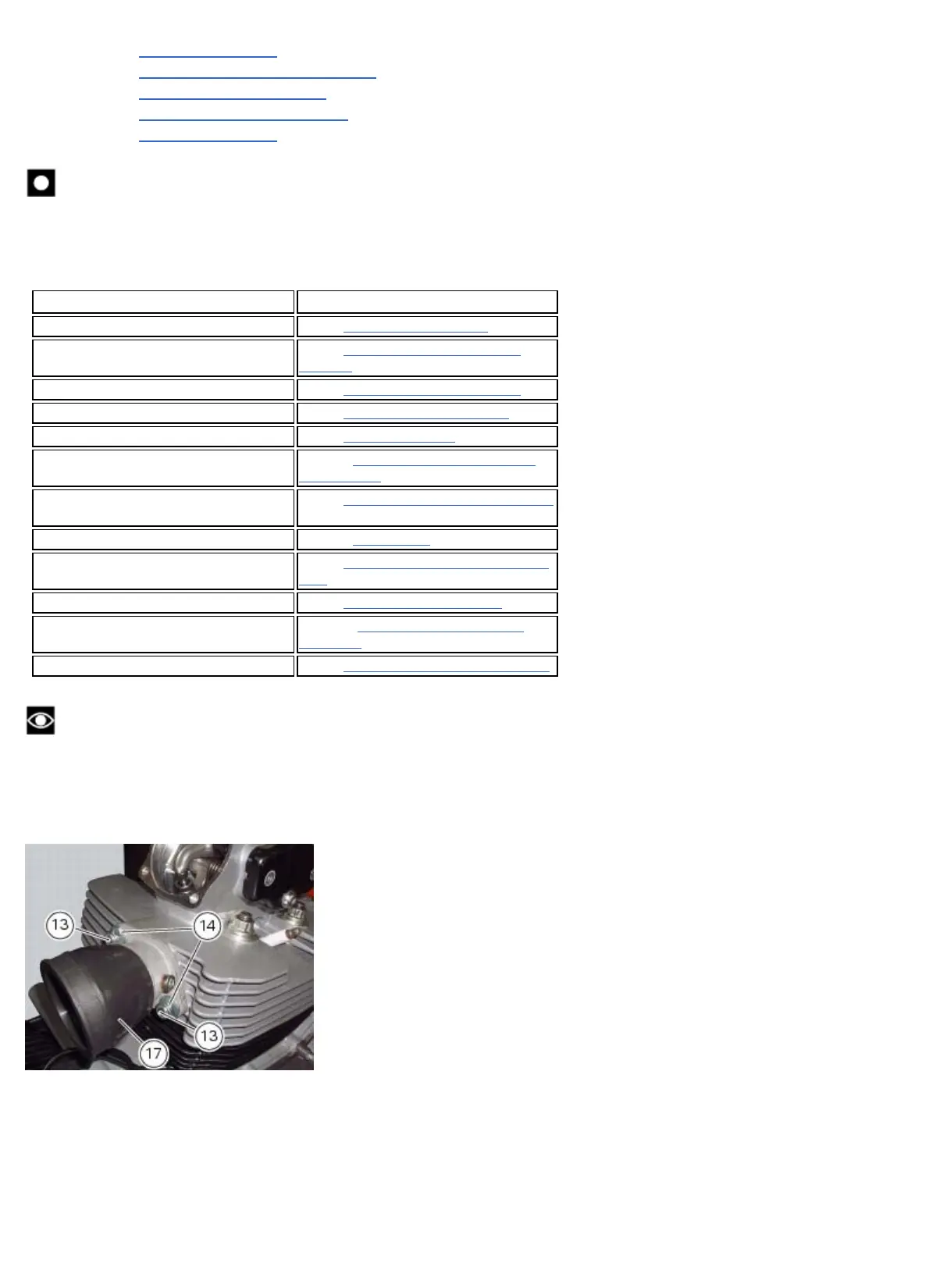

Unscrew and remove the nuts (14) securing the intake manifolds of the vertical and horizontal cylinder heads from the
studs (13).
Remove the manifolds (17).
If necessary, remove the studs (12) and (13) from the cylinder heads.
