Rear swingarm
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_13.51.1.html[11/12/2015 18:40:35]
The maximum permissible end float is 0.1 mm.
When a 0.10 mm feeler gauge or shim can only be inserted with difficulty, there is no need to install any further shims.
Otherwise, use the two available shim sizes (0.20 mm and 0.10 mm) to obtain the specified end float.
Example:
Measured end float Shims on left-hand side. Shims on right-hand side
0.10 - 1 x 0.10 mm
0.20 1 x 0.10 mm 1 x 0.10 mm
0.50 1 x 0.20 mm 1 x 0.20 mm+
1 x 0.1 mm
Important
The thicker of the two shim packs must always be installed on the right-hand side of the swingarm.
The thinnest shim should always be installed so that it is contact with the swingarm.
NEVER install 0.1 mm shims on the left-hands side.
The left-hand side shim pack shall be max. 2 mm thick (1.8+0.2 max.).
Side-to-side movement of the rear end of the swingarm must be below 1 mm.
Refitting the swingarm

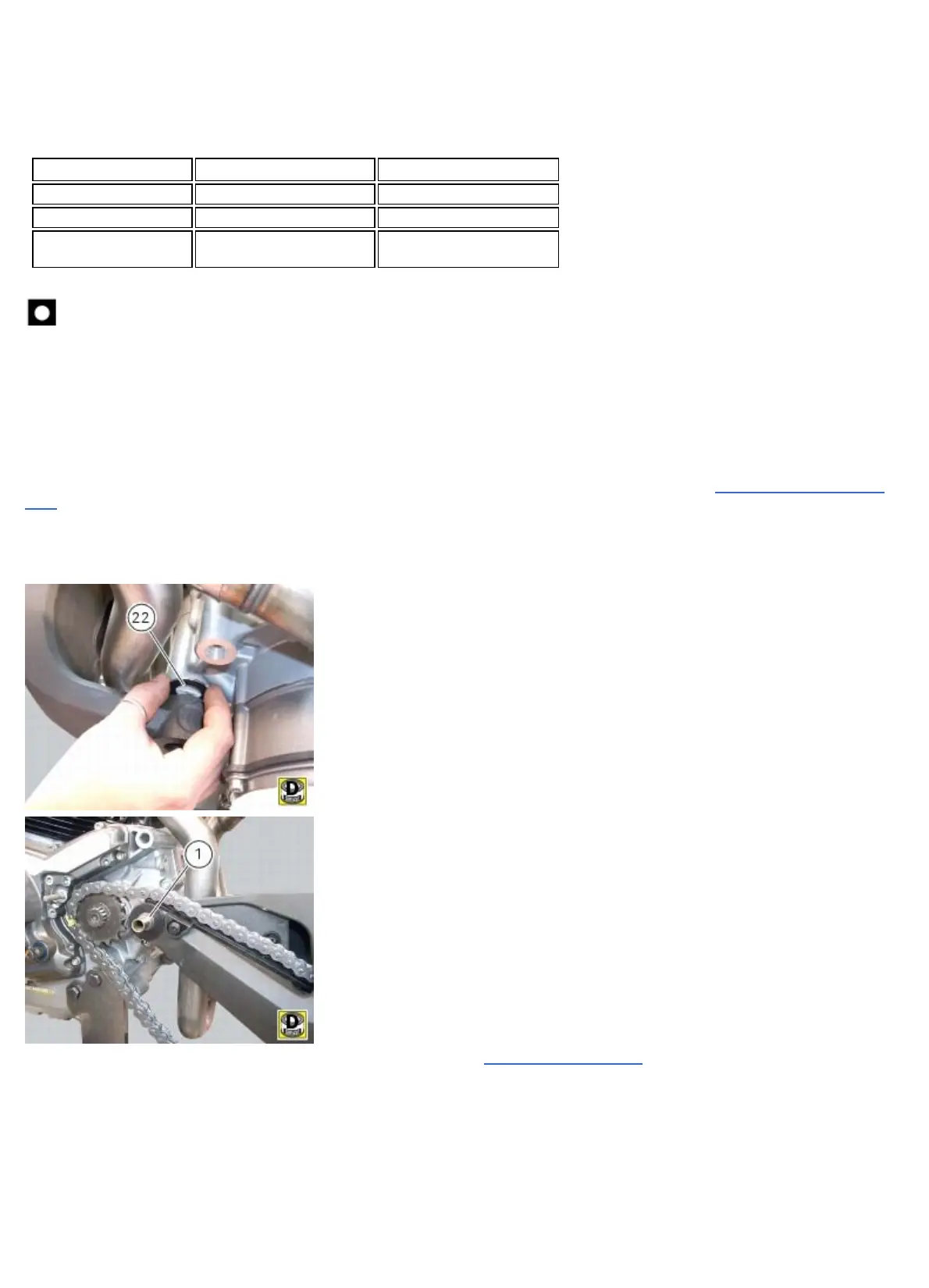

Smear grease on either side of shim (22) selected when checking the end float (see paragraph “Checking swingarm end
float” in this section). Fit swingarm to engine with the selected shim (22) on the right-hand side.
Fit shaft (1) (duly greased) on the left-hand side and insert it by half its length.
Push the left arm of swingarm against engine and fit between the right arm and the engine the shim thickness (22)
determined after measuring the end float.
Fully fit shaft (1), paying attention not to damage shims (22).
Tighten the screw (15) to a torque of 18 Nm ±5% (Sect. 3 - 3, Frame torque settings), while holding the nut (16).
