Footrest brackets
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_15.53.1.html[11/12/2015 18:40:37]
the exploded view diagram.
Removal of the footrest brackets
The following removal operations apply to both left and right footrests.

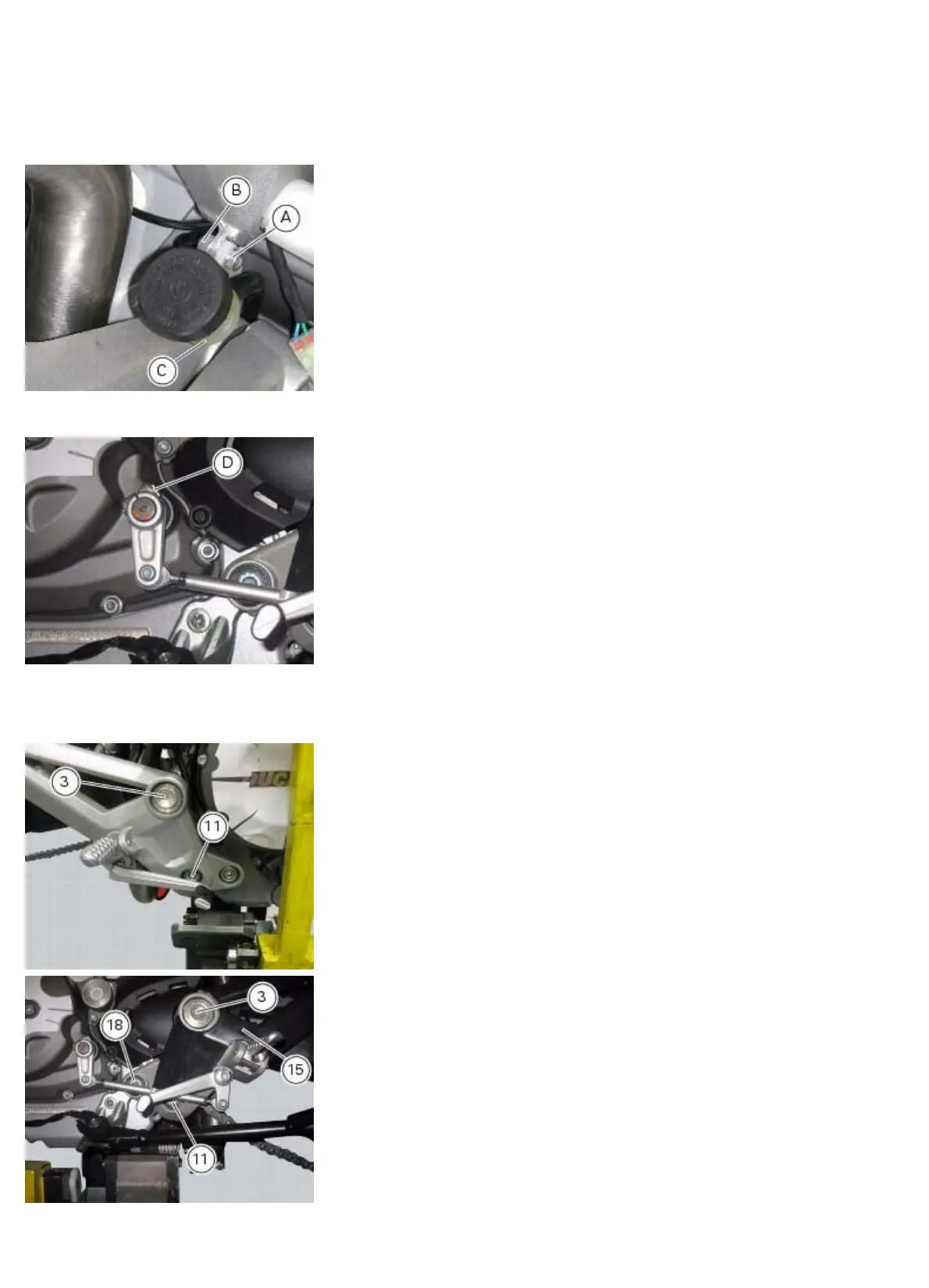

To remove the right-hand footrest, unscrew the screws (A) while holding the nut (B) and remove the rear brake fluid
reservoir (C).
Before removing the left footrest bracket, unscrew the screw (D) securing the gearchange lever to the engine, but leave
the gearchange assembly attached to the bracket.
Unscrew the upper two screws (3) securing the bracket to the swingarm.
Recover the washers (17) located between the bracket and the frame.
Unscrew the lower screws (11) and (18) securing the LH footrest bracket (15) to the crankcase, recovering the two
washers (2).
Remove the brake master cylinder (E) by unscrewing the two screws (F): slide the brake master cylinder (E) off the
pushrod (G).
Disconnect the rear brake sensor (H) from the main wiring harness.
