Footrest brackets
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_15.53.1.html[11/12/2015 18:40:37]

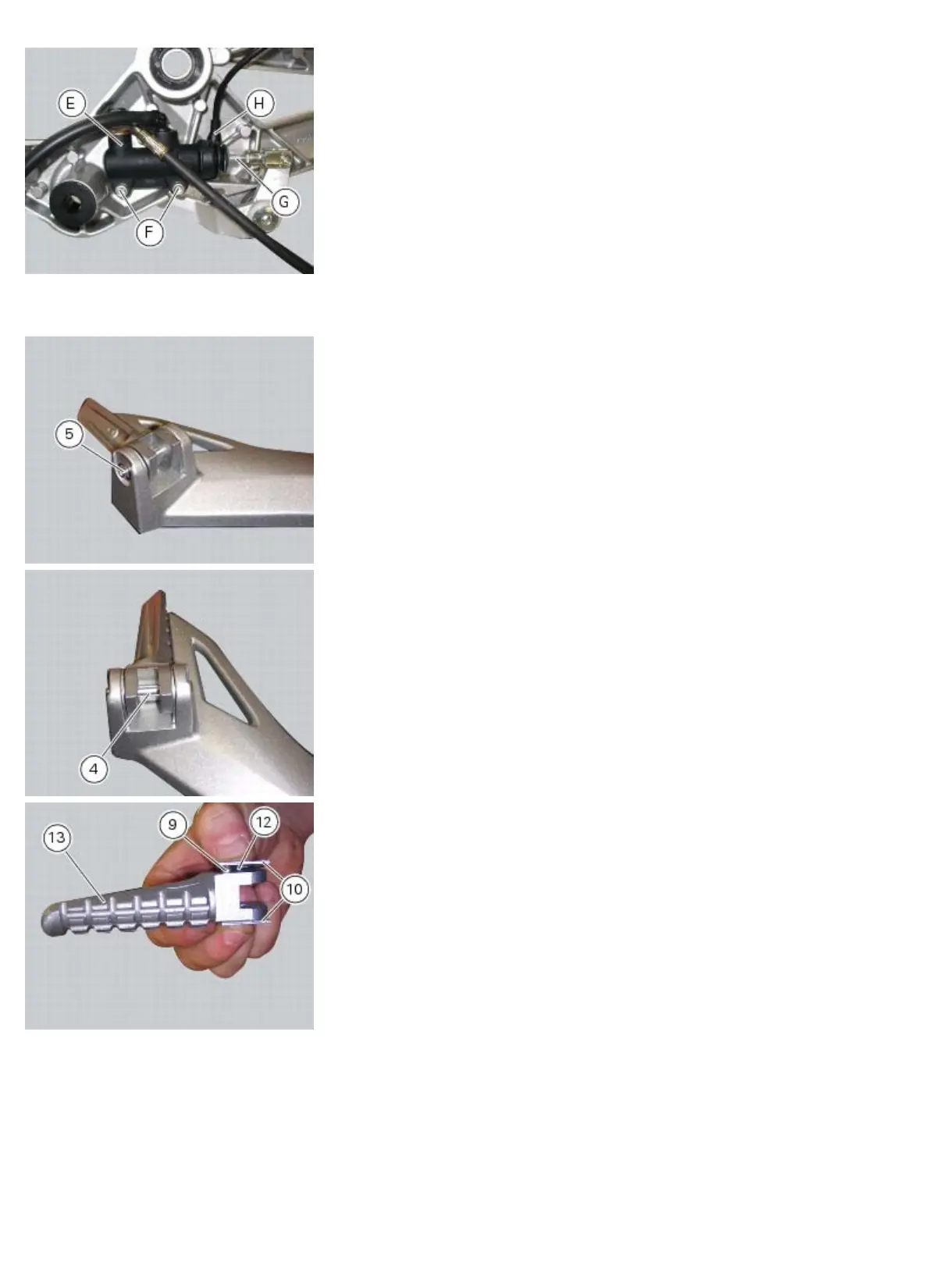

Remove the RH footrest bracket assembly (8).
To separate the rear RH footrest (13) from the footrest bracket (8), remove the circlip (5) and drive out the pin (4) to
release the footrest (13), the plates (10), the ball (9) and the spring (12).
To separate the front RH footrest (7) from the bracket (8), remove the circlip (5) and drive out the pin (4) to release the
footrest (7) and the spring (6).
