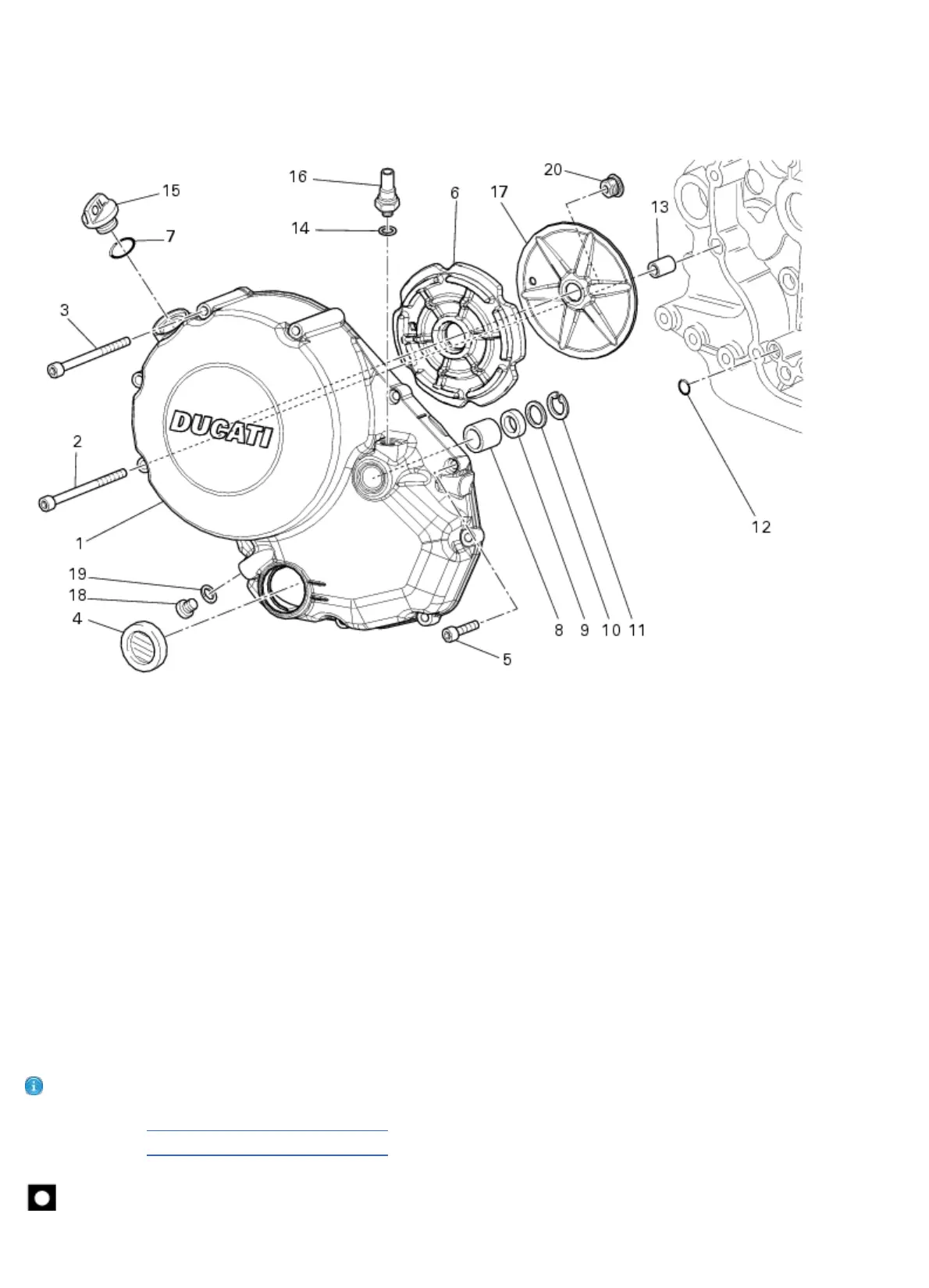

6.2 -Clutch assembly: clutch cover
1 Clutch-side crankcase cover
2 Screw
3 Screw
4 Oil level sight glass
5 Screw
6 Panel (BLACK)
7 O-ring
8 Bush
9 Sealing ring
10 Shim washer
11 Circlip
12 O-ring
13 Locating bush
14 Sealing washer, thickness 2
15 Plug
16 Pressure switch
17 Cover
18 Plug
19 Sealing washer
20 Screw
Spare parts catalogue
796
CLUTCH-SIDE CRANKCASE COVER
796 ABS
CLUTCH-SIDE CRANKCASE COVER
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
