Ducati Monster 796 - Removal of the Throttle Body

Throttle body
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_6.59.1.html[11/12/2015 18:40:40]
33 Hose
Spare parts catalogue
796
INTAKE MANIFOLDS
796
AIR INTAKE - OIL BREATHER
796 ABS
INTAKE MANIFOLDS
796 ABS
AIR INTAKE - OIL BREATHER
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but can be found in the
exploded view diagram.

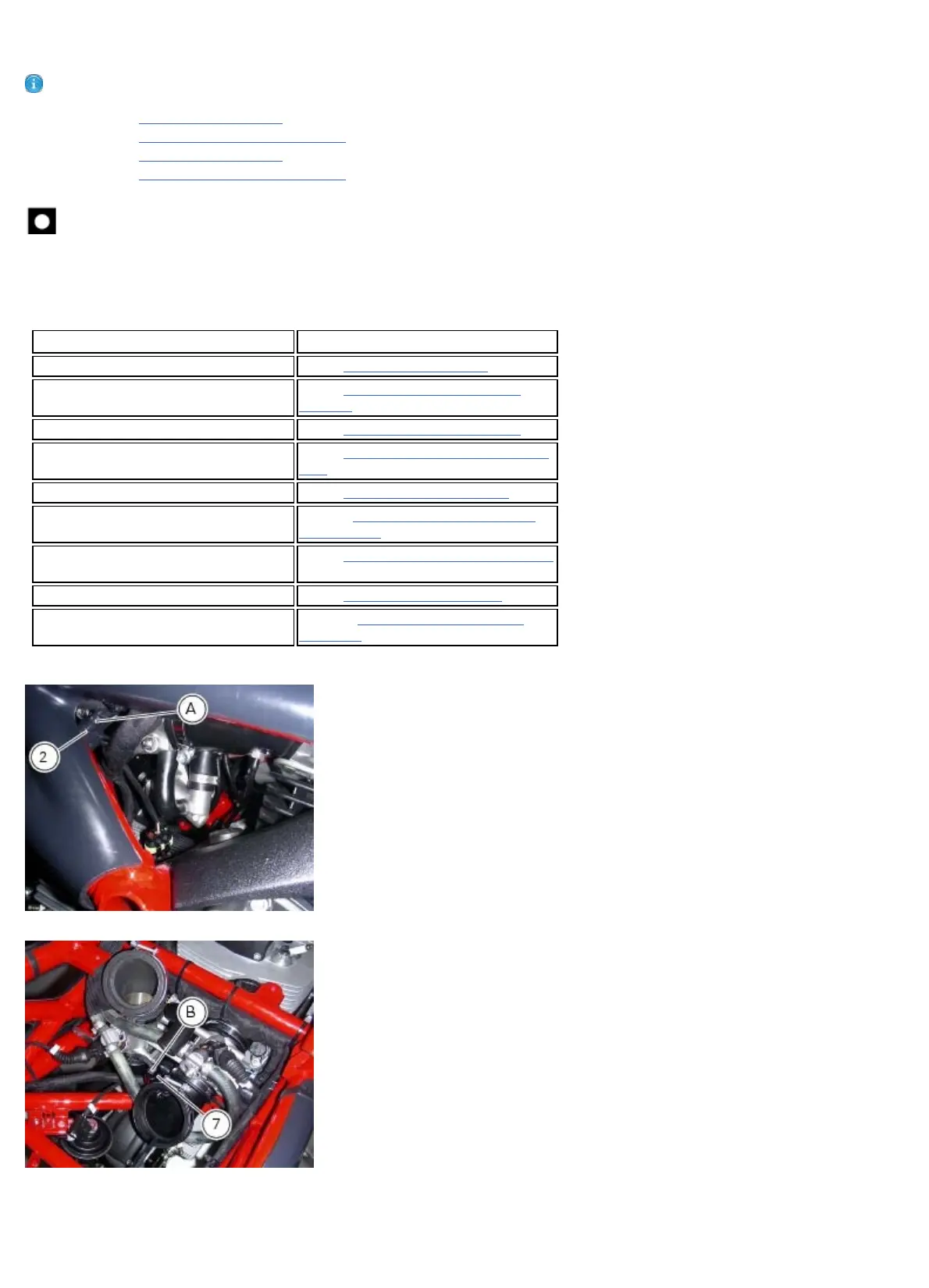

Removal of the throttle body
Operations Section reference
Remove the seat 5 - 3, Removal of the seat
Remove the tank covers 5 - 2,
Removal of the fuel tank
fairings
Remove the fuel tank 8 - 2,
Removal of the fuel tank
Remove the ABS control unit 7 - 6,
Removing of the ABS control
unit
Remove the battery 6 - 2,
Removal of the battery
Remove the ECU connector 6 - 12,
Removal of the electronic
control unit
Connect the starter motor/solenoid
cable
6 - 3,
Removal of the starter motor
Remove the airbox 8 - 7,
Removal of the airbox
Disconnect the throttle cable 7 - 8.1,
Removal of the throttle
twistgrip
Disconnect the connector (A) connecting the main wiring harness to the throttle position sensor (2).
Disconnect the wiring connector (B) connecting the main wiring harness to the air temperature sensor (7).
Disconnect the connector (C) connecting the main wiring loom to the stepper motor (31).
