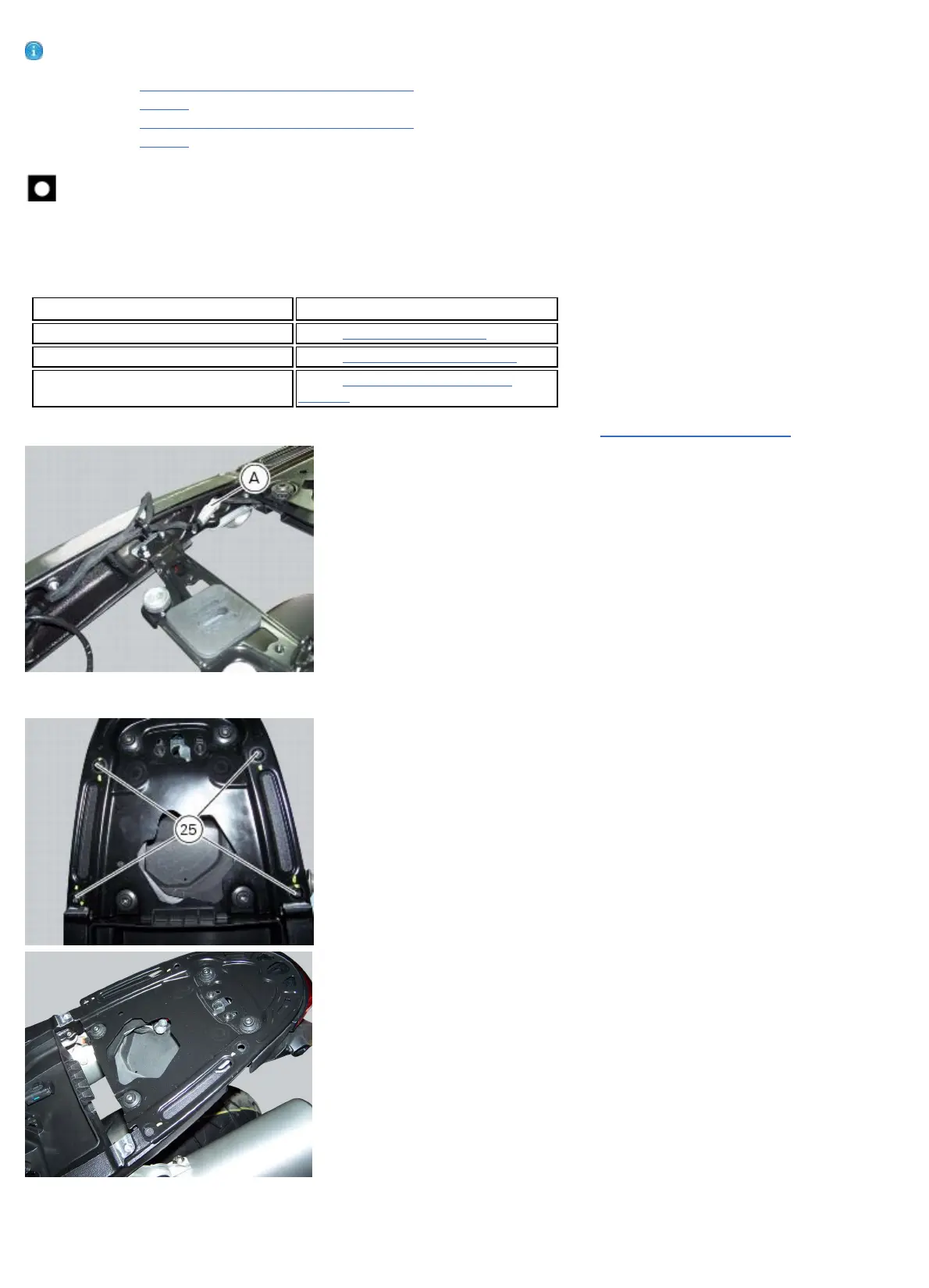

Removal of the tail light-protection-number plate holder assembly
Operations Section reference
Remove the seat 5 - 3, Removal of the seat
Remove the tool tray 5 - 3,
Removal of the tool tray
Remove the exhaust valve motor 8 - 8,
Removal of the exhaust
system
Disconnect the rear wiring connector (A) from main wiring harness (Sect. 6 - 1,
Routing of wiring on frame).
Unscrew the four screws (25) and slide the tail light - number plate holder assembly off the rear subframe, as shown in
the photo.
Unscrew and remove the screws (30).
While holding the special screws (19), unscrew the screws (10) and remove the plate (24) from the tail light -
number plate holder assembly: recover the washers (9).
