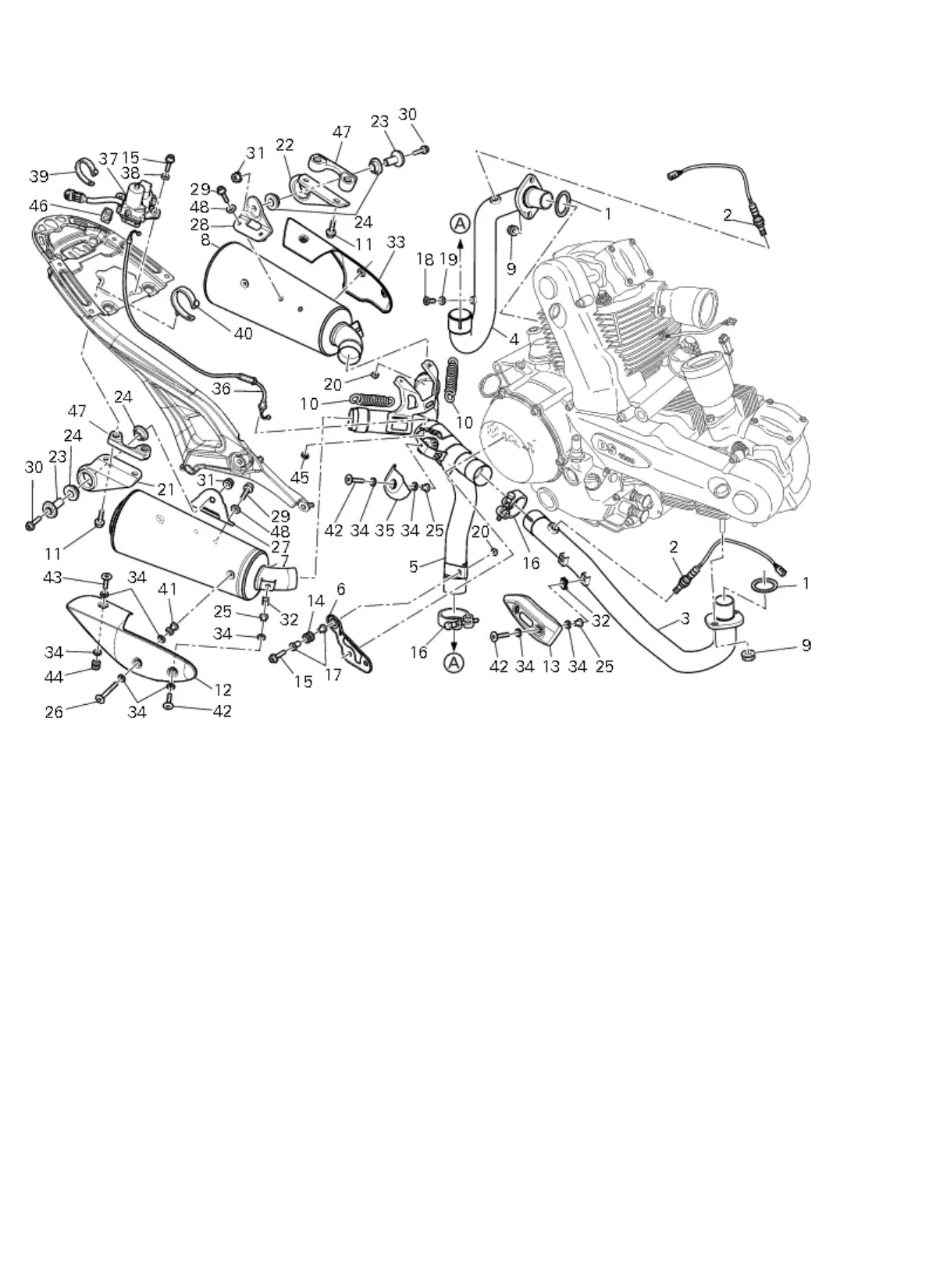

8 -Exhaust system
1 Exhaust gasket
2 Lambda sensor
3 Horizontal cylinder head exhaust pipe
4 Vertical cylinder head exhaust pipe
5 Centre exhaust pipe
6 Lower bracket
7 Right-hand silencer
8 Left-hand silencer
9 Nut
10 Spring
11 Screw
12 RH heat shield
13 Horizontal heat shield
14 Vibration damper mount
15 Screw
16 Strap
17 Spacer
18 Plug
19 Sealing washer
20 Special nut
21 Right-hand bracket
22 Left-hand bracket
23 Bush
24 Rubber pad
25 Spacer
26 Screw
27 RH silencer support bracket
28 LH silencer support bracket
29 Screw
30 Screw
31 Nut
32 Quick-release fastener
