Ducati Monster 796 - 10 Evaporative Emissions Canister

Evaporative emissions canister
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_10.62.1.html[11/12/2015 18:40:42]

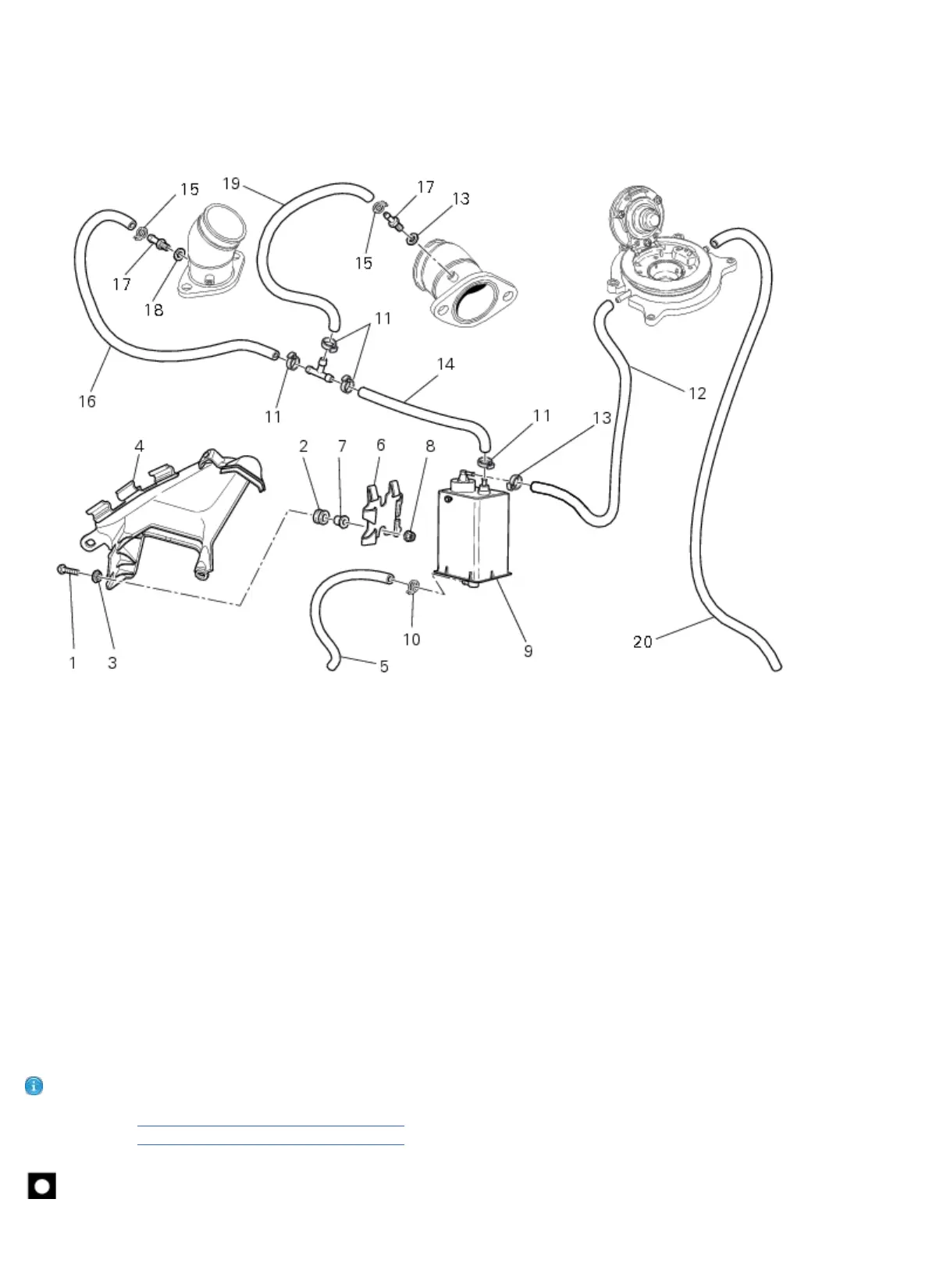

10 -Evaporative emissions canister
1 Screw
2 Rubber pad
3 Spacer
4 LH air deflector
5 Hose
6 Plate
7 Spacer
8 Nut
9 Evaporative emissions canister
10 Hose clip
11 Hose clip
12 Filter/oil reservoir hose
13 Hose clip
14 Union/filter pipe
15 Hose clip
16 Hose
17 Union
18 Aluminium gasket
19 Hose
20 Breather hose
Spare parts catalogue
796
EVAPORATIVE EMISSIONS CANISTER
796 ABS
EVAPORATIVE EMISSIONS CANISTER
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded
view diagram.
