Ducati Monster 796 - Disassembly and Reassembly of the Timing Pulleys; Refitting the Timing System Assembly

Cylinder head assemblies: timing belt covers/timing system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4B.68.1.html[11/12/2015 18:40:45]
Disassembly and reassembly of the timing pulleys

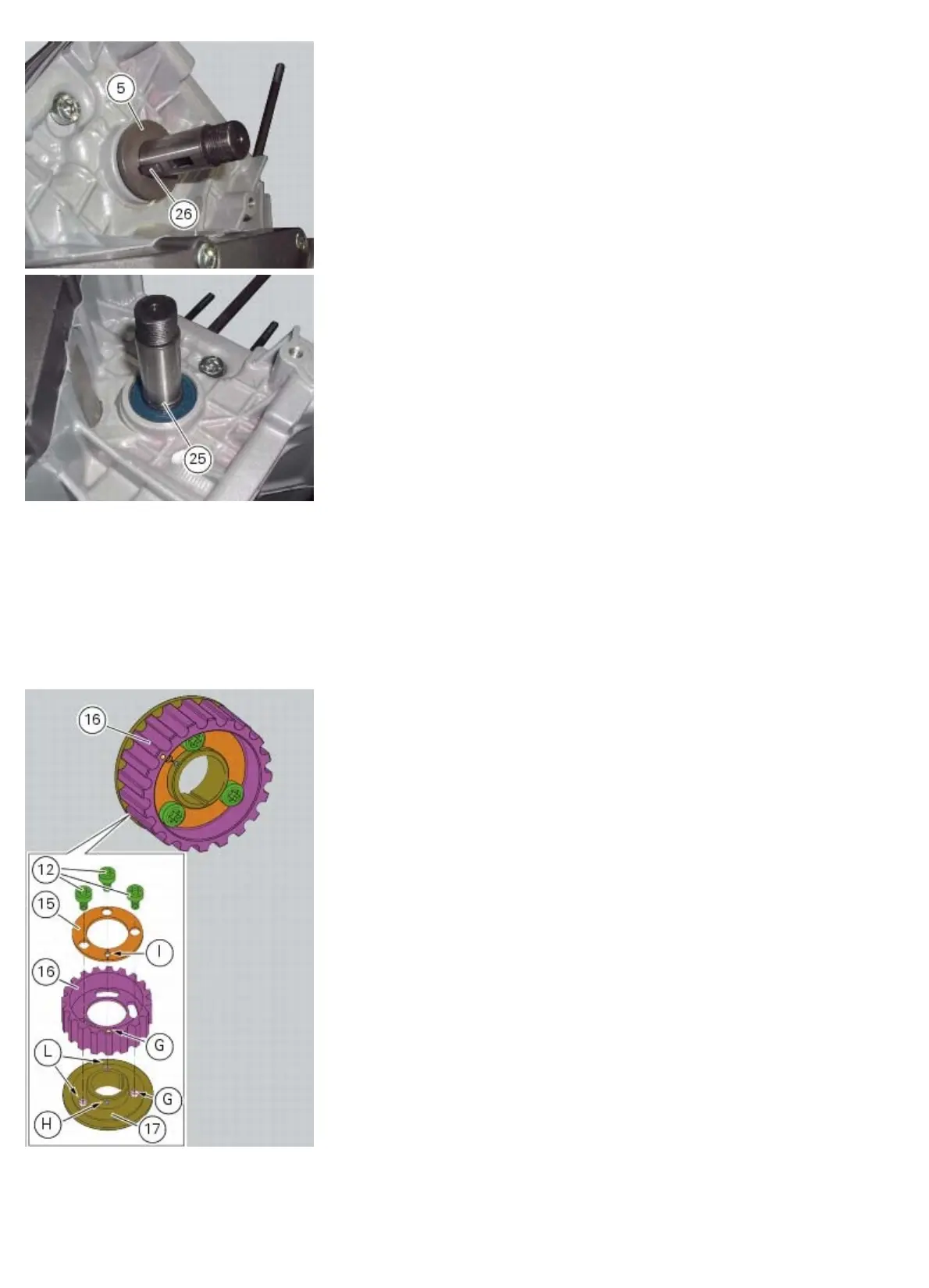

To disassemble pulley parts, loosen and remove the three screws (12), slide out washer (15) and remove pulley (16) from
flange (17).
To reassemble, fit the pulley (16) on the hub (17), aligning the timing mark (G) on the pulley with the timing mark (H) on
the hub.
Install the washer (15) up against the pulley, aligning the timing notch (I) with the timing mark (G) on the pulley and the
one (H) on the hub.
Insert the screws (12) in the threaded holes (L) of the hub.
Refitting the timing system assembly
Refitting the camshaft timing pulleys
Check that the keyway on the end of camshaft is in good condition and without burrs.
