Maintenance operations
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_4_3.17.1.html[11/12/2015 18:40:14]

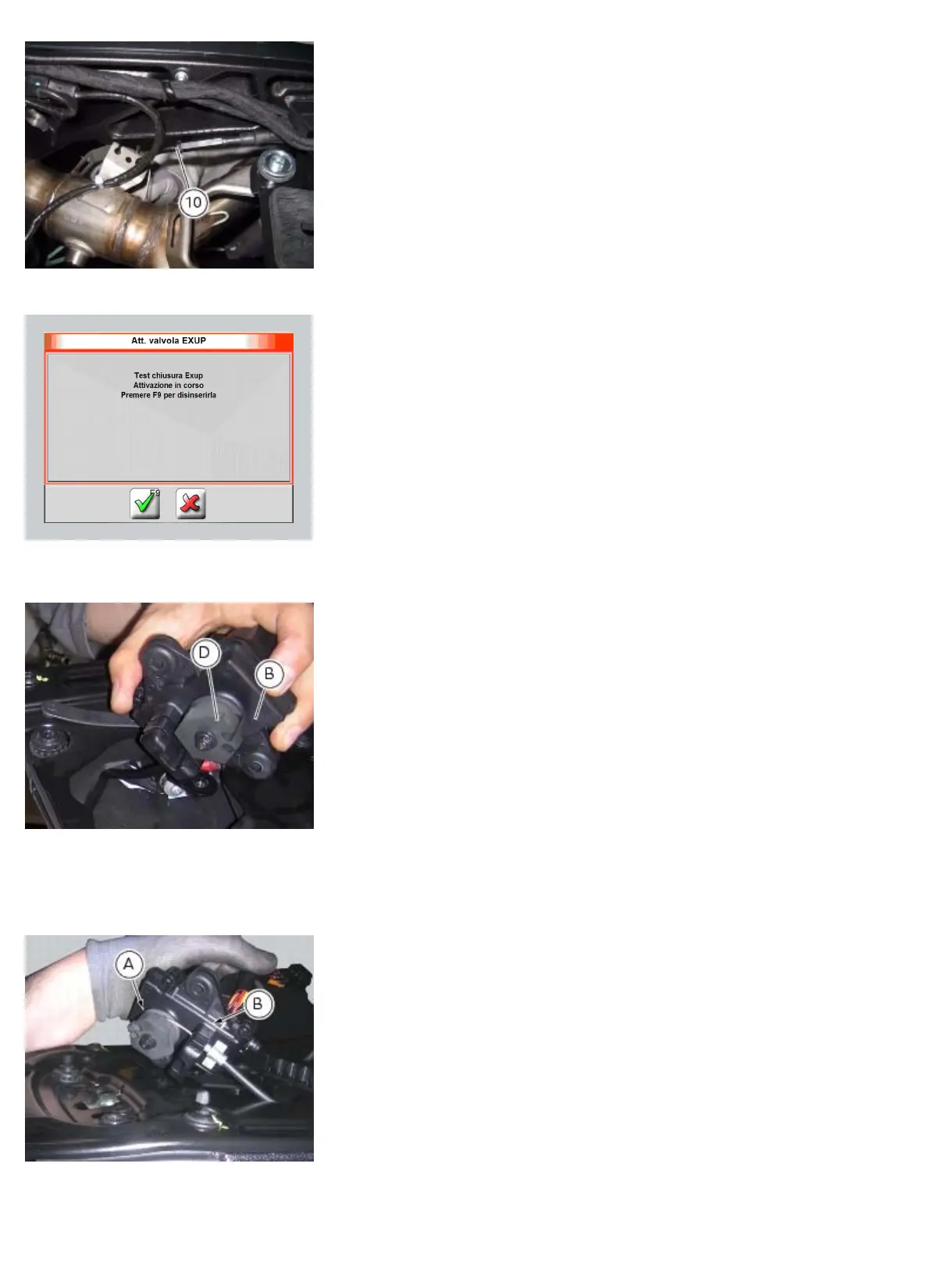

Press button “X” from this DDS page: the activation procedure page closes and system quits without going through test
selection.
Disconnect the DDS.
Turn the key to on, let make one complete turn and make sure that the vertex of the hexagon (D) in-between the cable
mounting holes is secure/fixed next to the notch (B).
Fitting a new motor and new cable
Insert cable end coming out of the straight sheath length on motor pulley into hole (A) shown.
Insert sheath end into the relevant seat (B) on the motor.
Fit the clip (C) to sheath terminal and make sure that it prevents cable from slipping out.
