Maintenance operations
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_4_3.17.1.html[11/12/2015 18:40:14]
Grease the end of the cable (6) and the pulley.

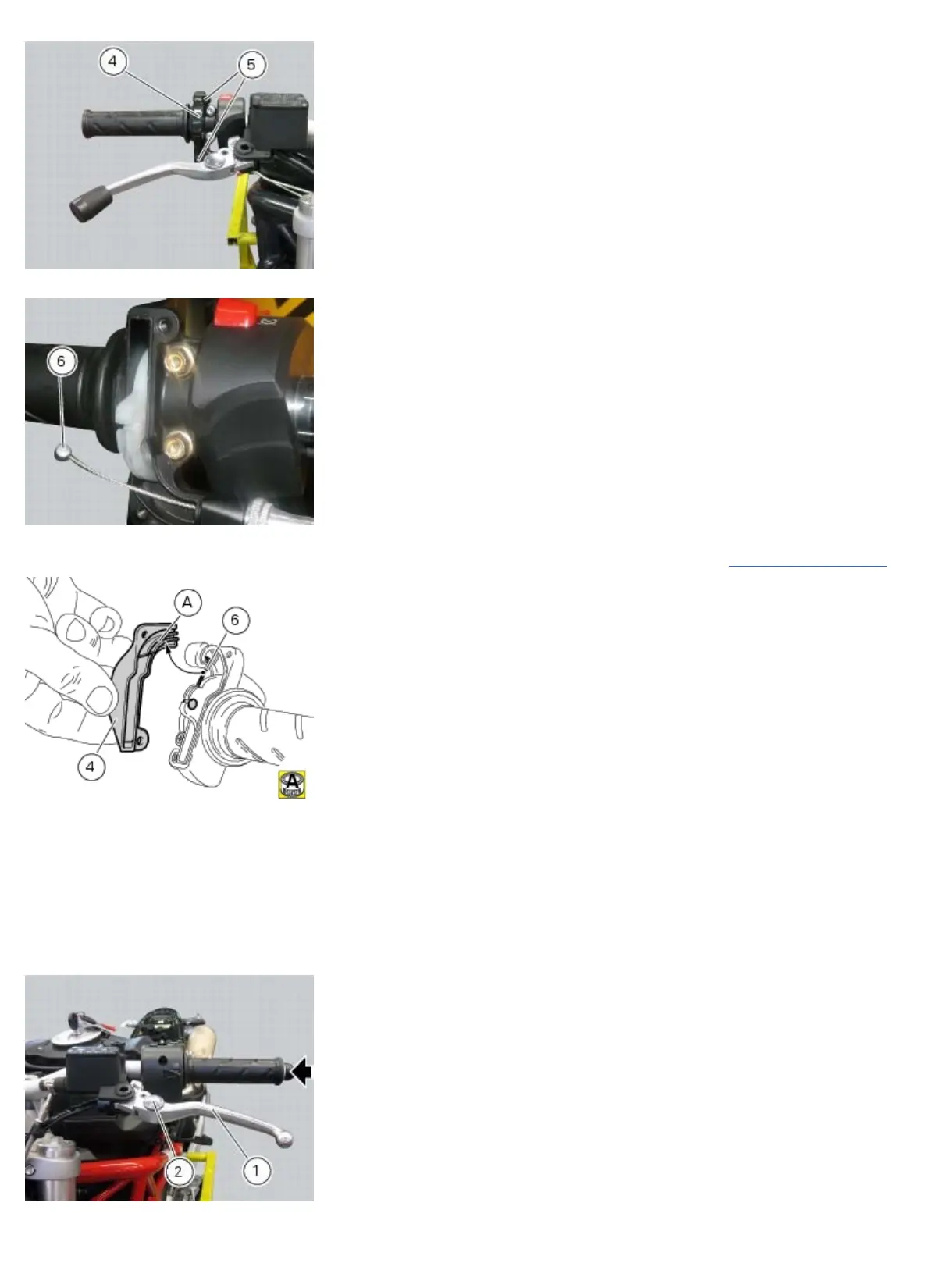

Carefully close the throttle assembly, inserting the cable (6) in the guide (A) on the upper twistgrip housing (4).
Tighten the twistgrip housing with the two screws (5) to a torque of 1.8 Nm ± 10% (Sect. 3 - 3, Frame torque settings).
Adjusting the clutch lever and front brake lever
Lever (1) disengages the clutch. It features a dial adjuster (2) for lever distance from the twistgrip on handlebar.
The lever distance is adjusted by 4 clicks of the knob (2), position no. 1 corresponds to the maximum distance between
the lever and the handgrip, whereas position no. 4 corresponds to the minimum distance.
When the clutch lever (1) is operated, drive from the engine to the gearbox and the drive wheel is disengaged. Correct
use of the clutch lever is very important in all riding situations, especially when moving off.
The position of the front brake lever can be adjusted in the same way.
