Clutch assembly: clutch cover
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_6B.73.1.html[11/12/2015 18:40:49]
Removal of the clutch cover
Operations Section reference
Drain the engine oil 4 - 3, Changing the engine oil and filter
cartridge
Disconnect the oil pressure
sensor
6 - 5,
Checking the indicating devices

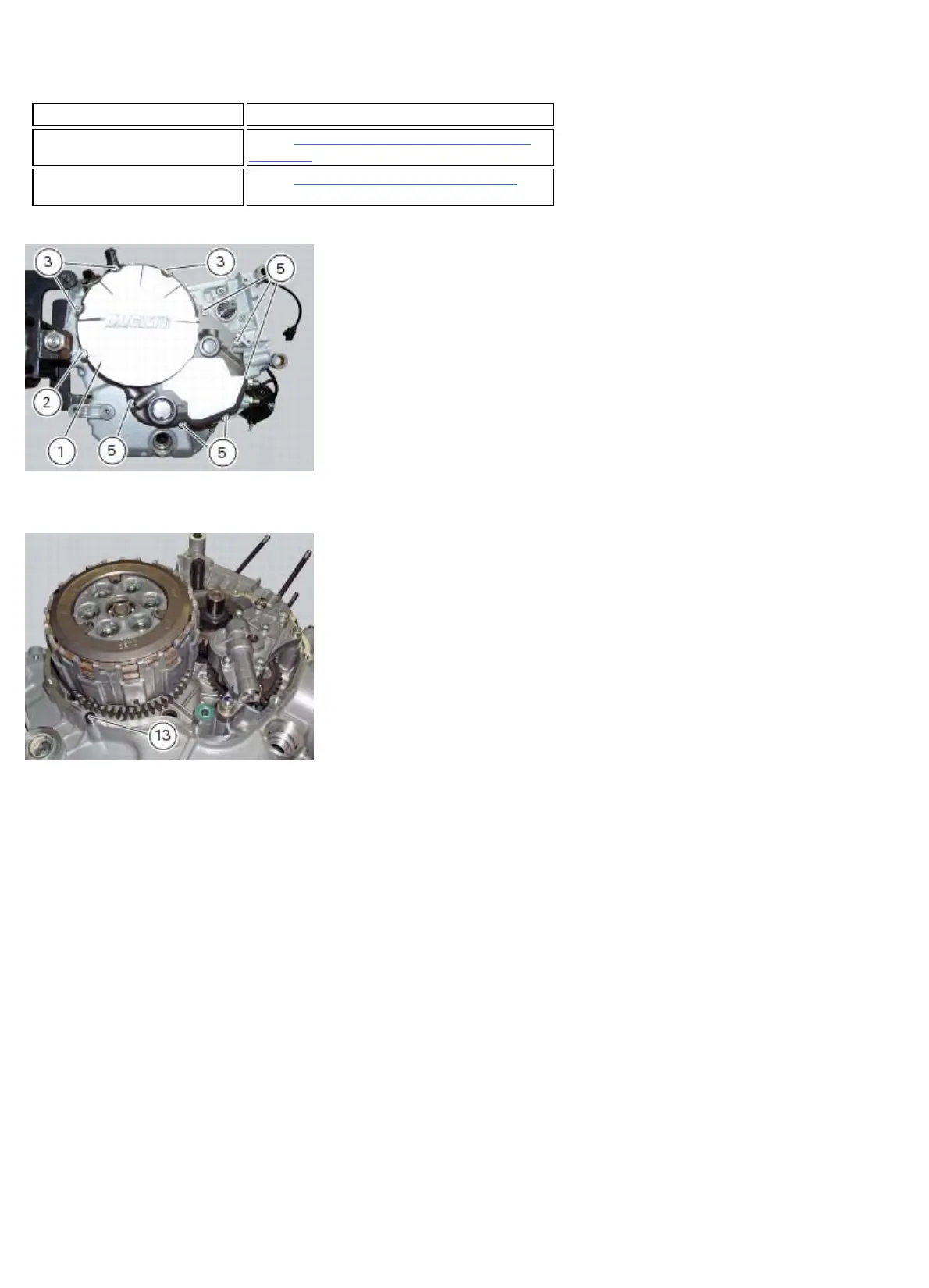

Unscrew the screws (2), (3) and (5) securing the clutch-side crankcase cover (1).
Tap around the edge of the cover with a plastic mallet to detach it from the crankcase half.
Remove the crankcase cover (1) taking care not to damage the locating bush (13).
Check the condition of the locating bush (13) and replace if deformed.
Disassembly of the clutch cover
Remove the plug (15) from the cover and the relative O-ring (7), the engine oil pressure switch (16) and its seal (14).
