Ducati Monster 796 - Refitting the Timing Belt Covers

Cylinder head assemblies: timing belt covers/timing system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4B.68.1.html[11/12/2015 18:40:45]

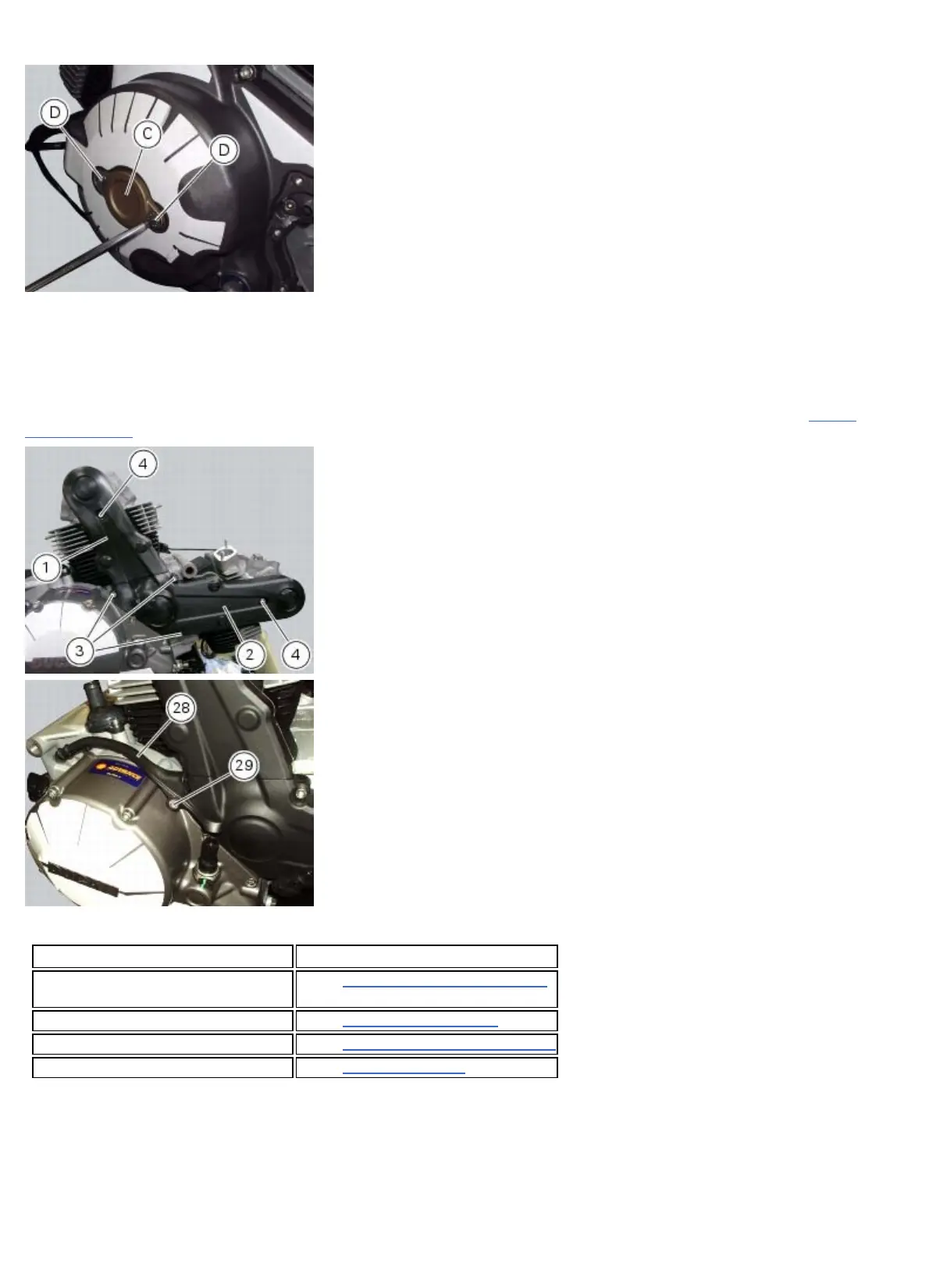

Before refitting the cover (C), check the condition of the O-ring and renew it if necessary.
Refitting the timing belt covers
Position the vertical timing belt cover (1) on the engine.
Start the screw (4) in its thread on the cover.
Locate the horizontal timing belt cover (2) on the engine.
Set the cable guide (28) with the spacer (30) on the cover (2) by starting the screw (29) on its thread.
Tighten the screw (4), the screws (3) and (29) to a torque of 10 Nm (Min. 9 Nm - Max. 11 Nm) (Sect. 3 - 3,
Engine
torque settings).
Operations Section reference
Refit the horizontal cylinder
exhaust pipe
8 - 8, Refitting the exhaust system
Refit the fuel tank 8 - 2,
Refitting the fuel tank
Refit the tank covers 5 - 2,
Refitting the fuel tank fairings
Refit the seat 5 - 3,
Refitting the seat
