Handlebar unit: Throttle twistgrip
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_8A.45.1.html[11/12/2015 18:40:32]
Remove the front brake lever 7 - 3, Removal of the front brake
master cylinder
Remove the clutch lever 7 - 8.2,
Removal of the clutch
master cylinder assembly

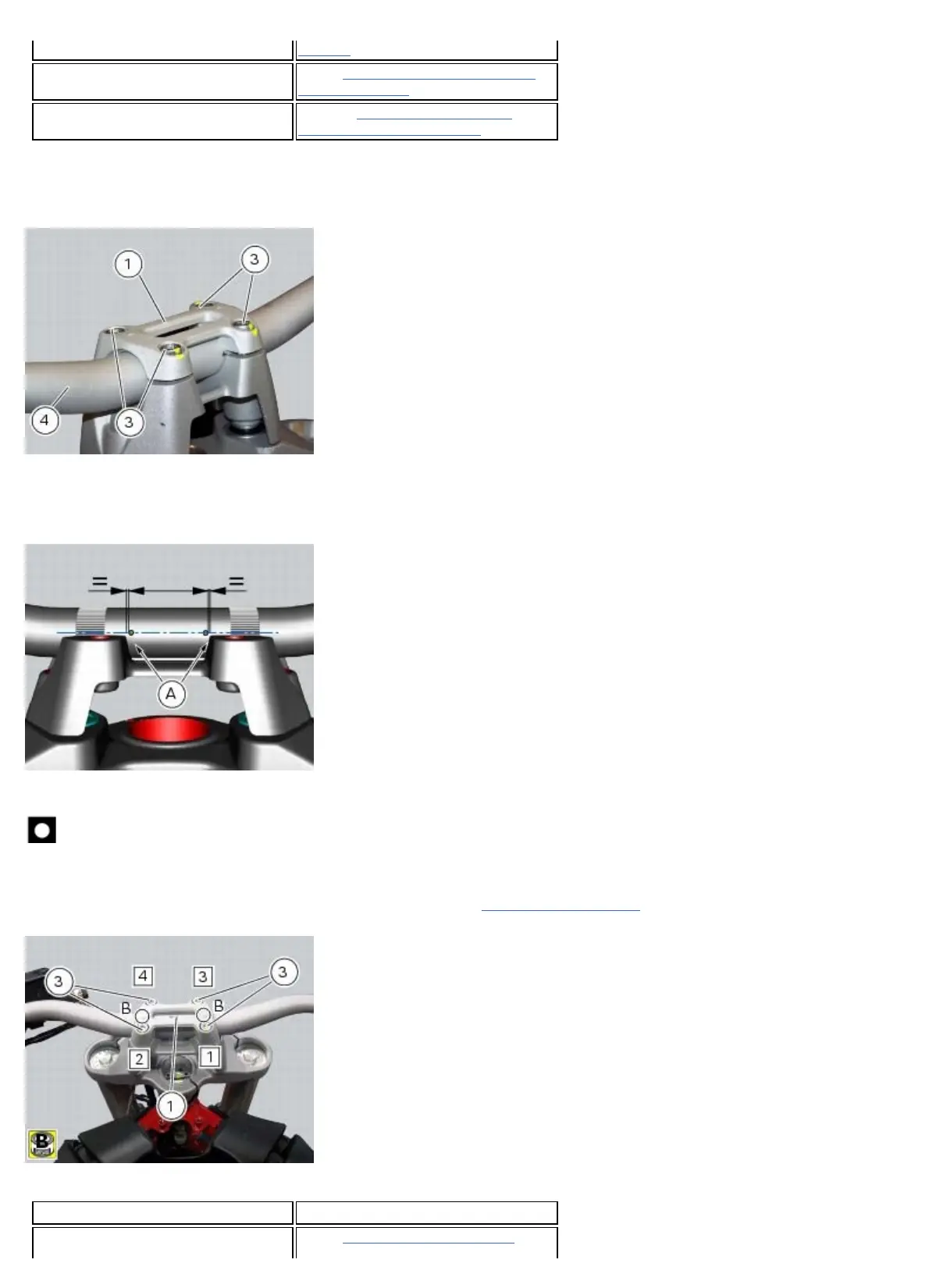

Unscrew and remove the screws (3) securing the upper clamp (1).
Remove the upper clamp (1).
Remove the handlebar (4) from its seat on the steering head.
To remove the grips (5), refer to the exploded view at the beginning of this chapter.
Refitting the handlebar
Position and orientate the handlebar (4) so that the punch marks (A) are equidistant from the lower clamp and aligned
with the face of the clamp.
Apply the recommended grease to the threads and undersides of the heads of the screws (3).
Important
Set the upper U-bolt (1) so that arrows (B) are pointing to the tank.
Refit the upper clamp (1) and insert the screws (3).
Tighten the screws (3) to a torque of 25 Nm ±5% (Sect. 3 - 3,
Frame torque settings), applying the sequence 1-2-3-4-3,
as indicated in the figure.
Operations Section reference
Refit the front brake lever 7 - 3, Refitting the front brake
