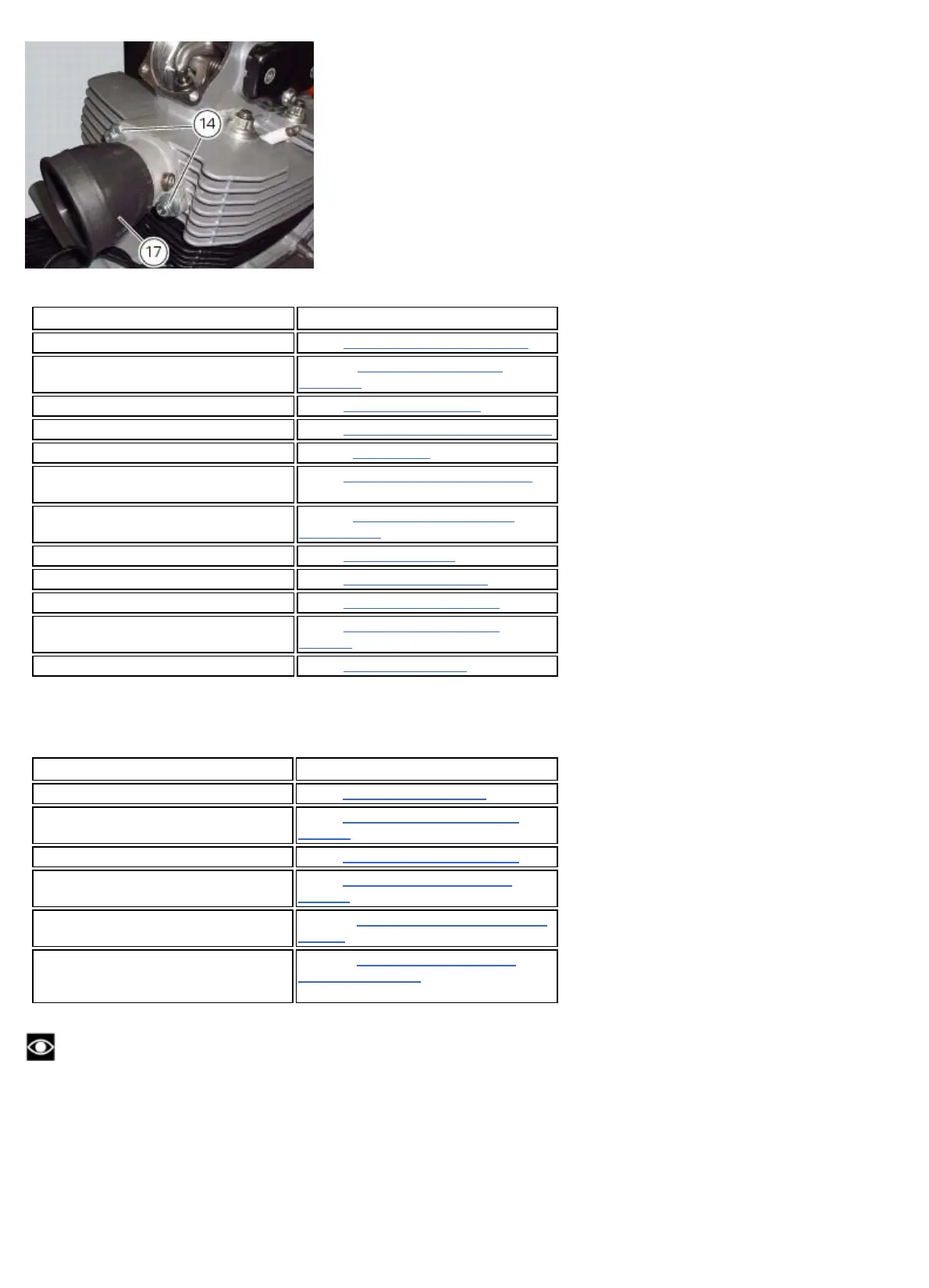

Ducati Monster 796 - Removal of the Side Covers

Cylinder head assemblies: camshafts
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4C.69.1.html[11/12/2015 18:40:46]
Operations Section reference
Refit the throttle body 8 - 6, Refitting the throttle body
Connect the throttle cable 7 - 8.1,
Refitting the throttle
twistgrip
Refit the airbox 8 - 7,
Refitting the airbox
Refit the ABS control unit 7 - 6,
Refitting the ABS control unit
Reconnect the HT leads 6 - 12,
Spark plug
Connect the starter motor/solenoid
cable
6 - 3,
Refitting the starter motor
Connect ECU connector to main
wiring harness
6 - 12,
Refitting the electronic
control unit
Refit the battery support 6 - 2,
Battery support
Refit the battery 6 - 2,
Refitting the battery
Refit the fuel tank 8 - 2,
Refitting the fuel tank
Refit the tank covers 5 - 2,
Refitting the fuel tank
fairings
Refit the seat 5 - 3,
Refitting the seat
Removal of the side covers
Operations Section reference
Remove the seat 5 - 3, Removal of the seat
Remove the tank covers 5 - 2,
Removal of the fuel tank
fairings
Remove the fuel tank 8 - 2,
Removal of the fuel tank
Remove the horizontal cylinder
exhaust pipe
8 - 8,
Removal of the exhaust
system
Remove the side timing belt covers 9 - 4.2,
Removal of the timing belt
covers
Remove the timing belts and
camshaft timing belt pulleys on the
heads
9 - 4.2,
Removal of the timing
system assembly
Note
For clarity, the figures show the cylinder head removed from engine.
Remove the retaining screws (18) and (1) and remove the cover (2) from the vertical cylinder head (10).
