Ducati Monster 796 - 14 Final Drive

Final drive
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_14.52.1.html[11/12/2015 18:40:36]

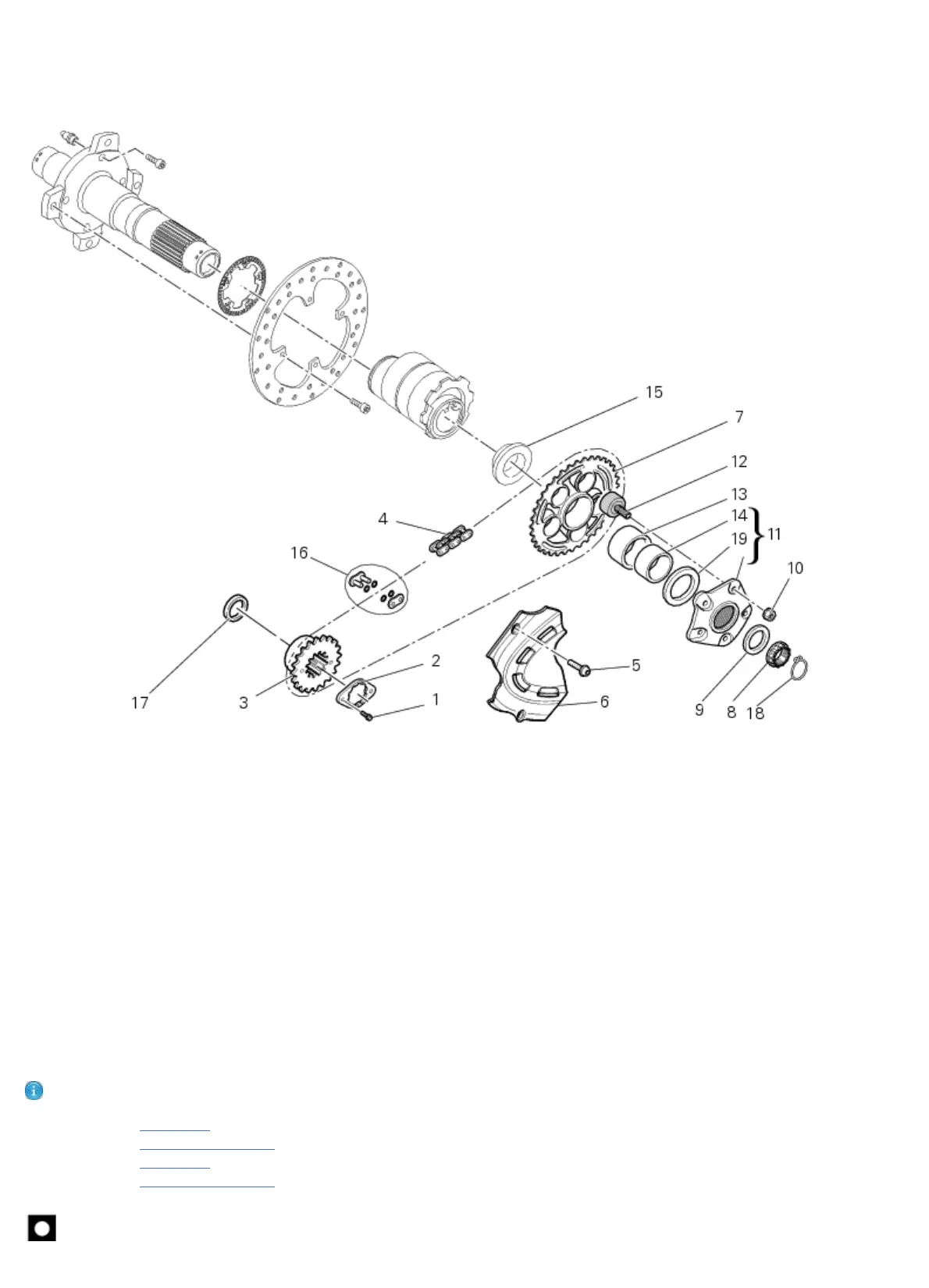

14 -Final drive
1 Screw
2 Sprocket stop plate
3 Front sprocket
4 Chain
5 Screw
6 Front sprocket cover
7 Rear sprocket (Z=39)
8 Nut
9 Washer
10 Nut
11 Rear sprocket flange
12 Cush drive bush
13 Bush
14 Bush
15 Spacer
16 Chain joint
17 Shim washer
18 Circlip
19 Washer
Spare parts catalogue
796
GEARBOX
796
REAR WHEEL AXLE
796 ABS
GEARBOX
796 ABS
REAR WHEEL AXLE
Important
