Crankcase assembly: external components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9A.78.1.html[11/12/2015 18:40:52]

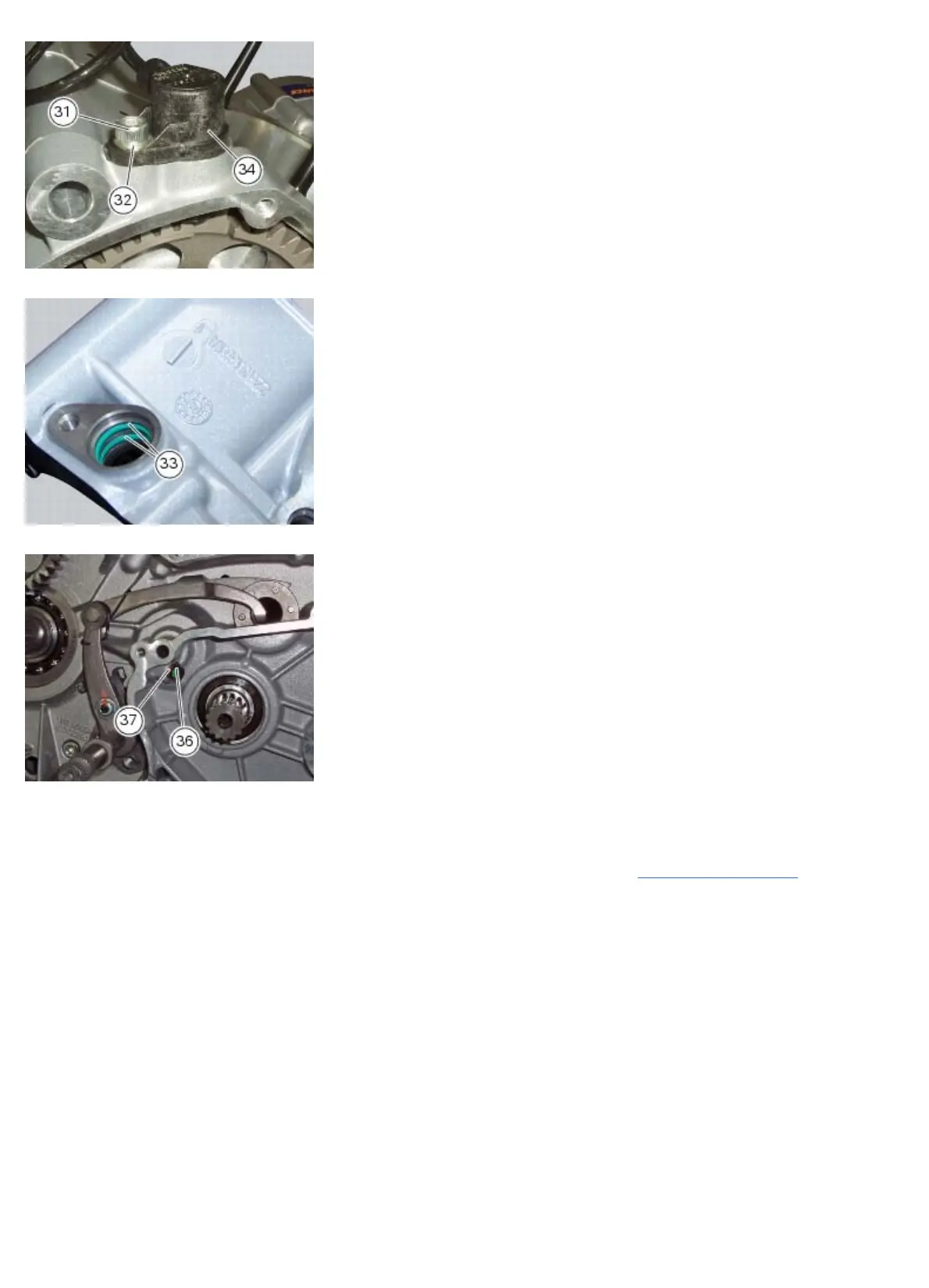

Check the condition of O-rings (33) on crankcase and renew them if necessary.
Remove the bush (36) and recover the seal (37), the spring (39) and the ball (38).
Refitting the external components
Check the condition of O-rings (11) and renew if necessary.
Install the oil vapour breather valve (10) in the crankcase along with O-rings (11), previously lubricated.
Tighten the screw (30) to a torque of 10 Nm (Min. 9 Nm - Max. 11 Nm) (Sect. 3 - 3,
Engine torque settings).
