Tail light-number plate holder and locks
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_18.56.1.html[11/12/2015 18:40:38]
Refitting the tail light-protection-number plate holder assembly
Refitting the rear turn signals
The following operations refer to the left side of the motorcycle, but apply also to the right side.

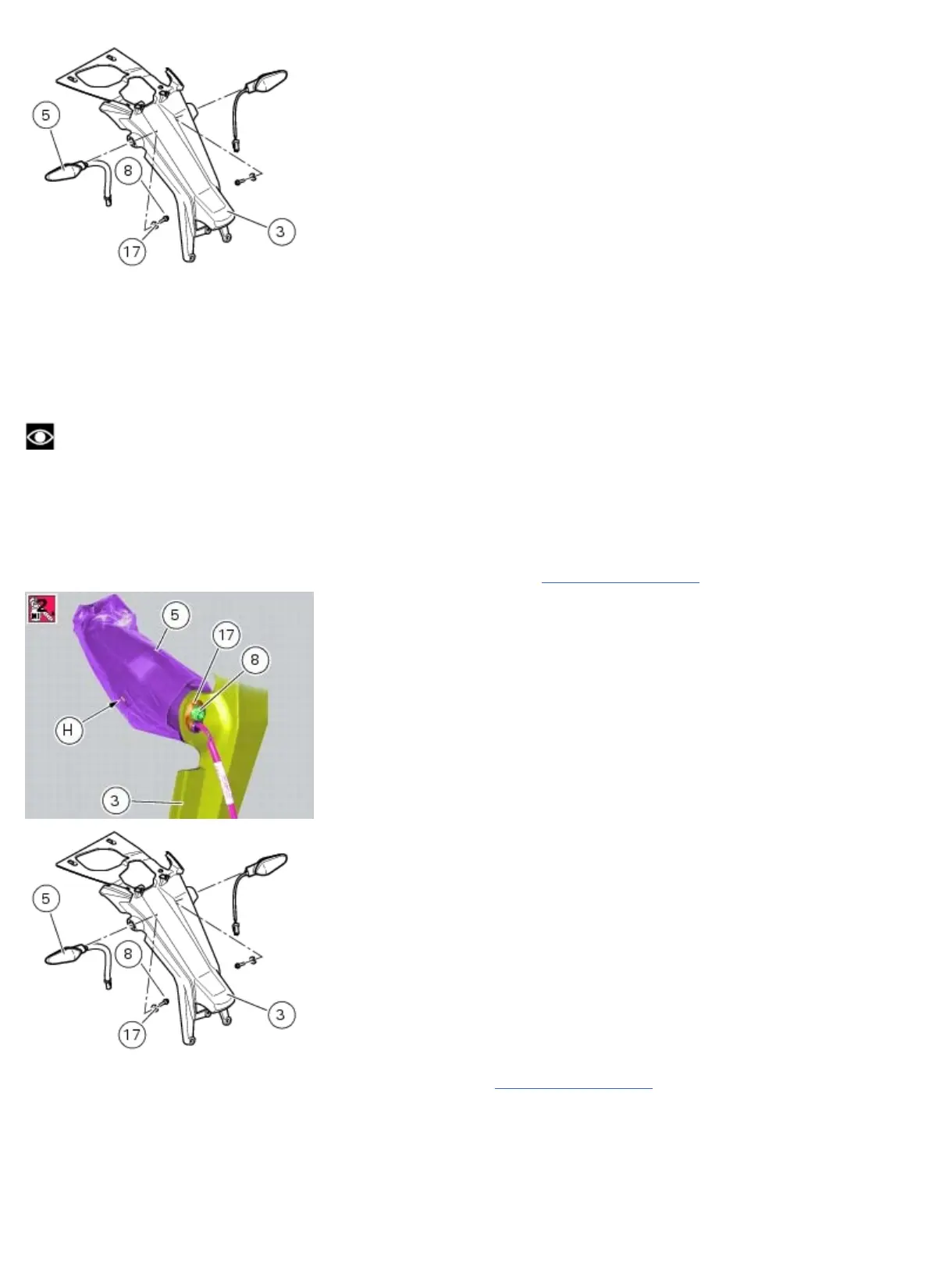

Insert wiring and left-hand turn indicator (5) into the mounting hole on number plate holder (3), positioned with the drain
slot (H) facing down, as shown below.
Note
The left-hand turn signal (5) can be identified through the indication “SX POST” (LH REAR) on the identification tag found
on its wiring.
Position the plate (17).
Apply prescribed threadlocker on the screw thread (8).
Fasten the right-hand turn indicator (8) starting screw in its thread, so that the slot on plate (7) perfectly matches the tab
on turn indicator, as shown in the figure.
Tighten the retaining screw (8) to a torque of 3 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Fit the tail light (2) to the number plate holder (3) and fit the screws (22).
Tighten the screws (22) to a torque of 3 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
