Tail light-number plate holder and locks
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_18.56.1.html[11/12/2015 18:40:38]

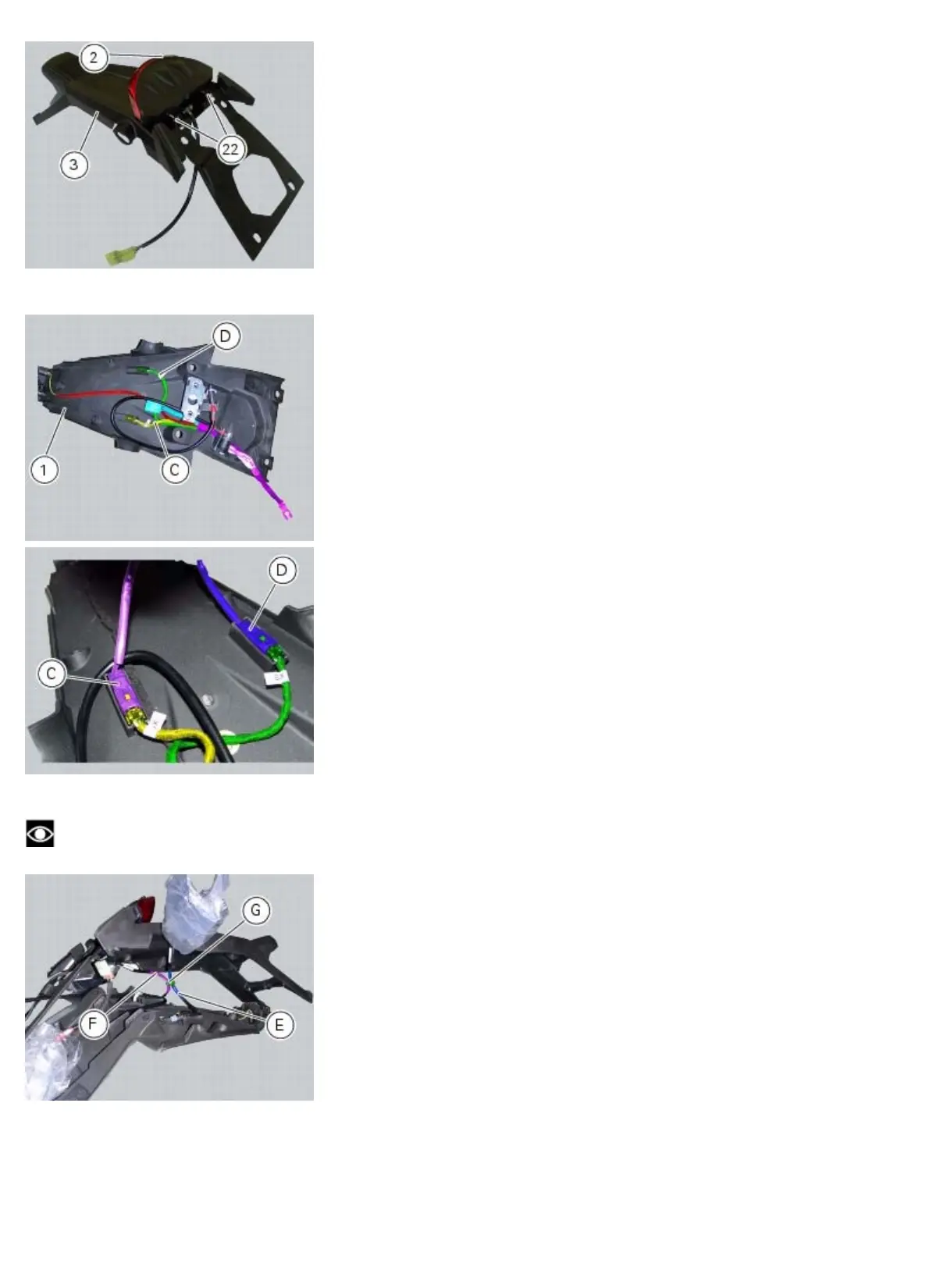

Connect the rear turn indicator wiring connector to the right (C) and to the left (D) to the rear wiring and place them
inside the specific splashguard (1) housings.
Refit clamp (G) fastening the rear right-hand turn indicator wiring (F) and rear left-hand turn indicator wiring (E).
Note
Never fully tighten clamp (E), leave a slight gap allowing for the free sliding of the two cables, as shown.
Connect the tail light wiring connector (B) to the tail light (2).
