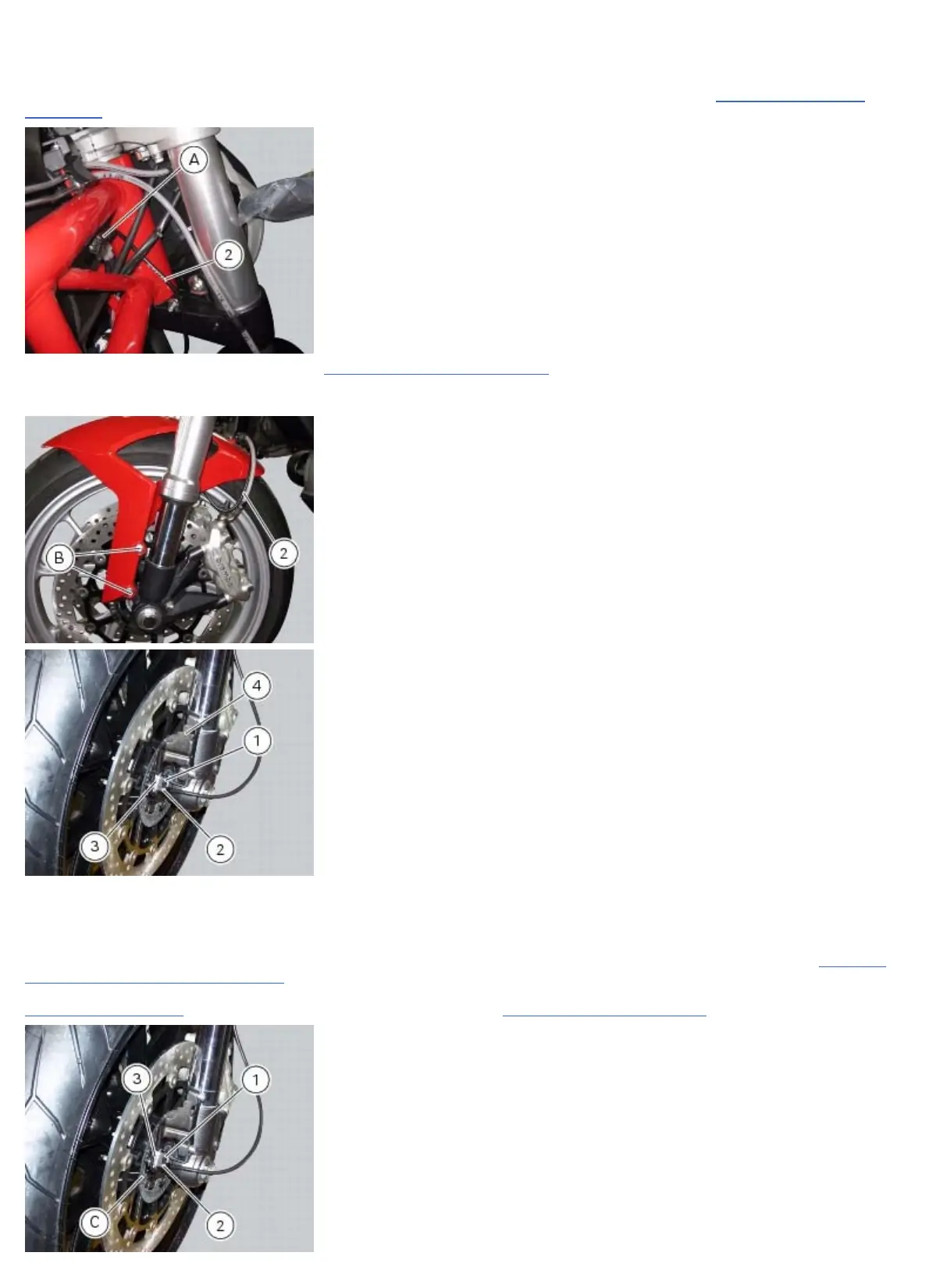

Replacing the front phonic wheel sensor
Disconnect the front ABS sensor (2) connector (A) from the main electric wiring.
Open all the retainer clamps of the front ABS sensor cable (2): refer to the tables in Sect. 7 - 6,
Flexible wiring/hoses
positioning.
Remove the front mudguard (Sect. 5 - 4, Removal of the front mudguard) and remove the speed sensor mounting bracket
(4): the bracket is fastened by the two screws (B) retaining the front mudguard (left-hand side).
Loosen retaining screw (1) and remove the front ABS sensor (2) with calibrated gasket (3).
Before refitting, make sure that the contact parts between the front ABS sensor (2) and its seat on mounting bracket (4)
are not damaged and are perfectly clean.
Fit the new front ABS sensor (2) on the bracket (4)
.
Check the air gap between the front ABS sensor (2) and the front phonic wheel (C) as indicated in Sect. 7 - 7, Adjusting
of the AIR-GAP phonic wheel sensor.
Fix the bracket (4) with sensor onto fork leg with the screw (1) and tighten it to a torque of 7 Nm ±10% (Sect. 3 - 3,
Frame torque settings) then refit the front mudguard (Sect. 5 - 4, Refitting the front mudguard).
