Cylinder head assemblies: camshafts
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4C.69.1.html[11/12/2015 18:40:46]

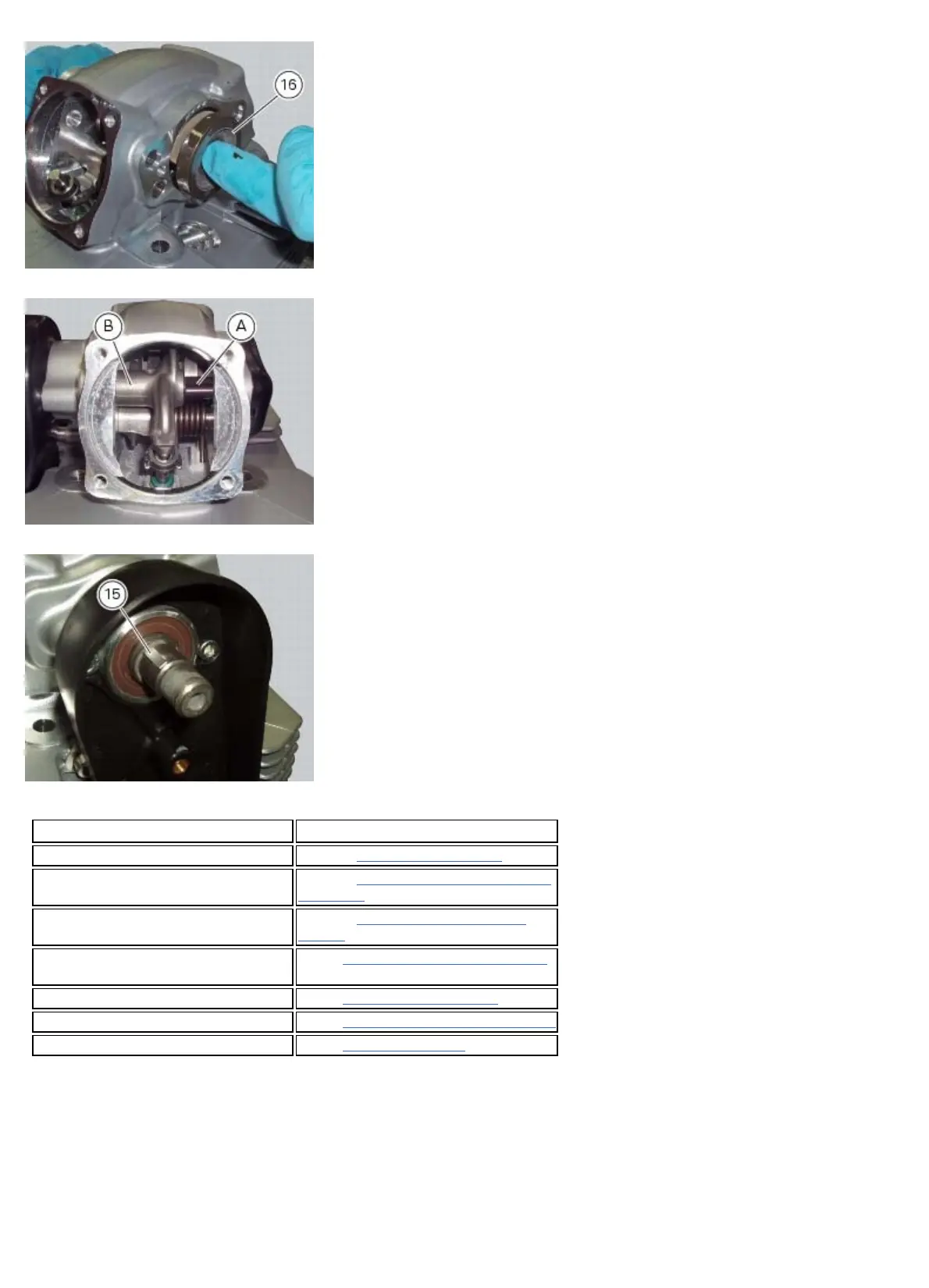

If removed, reposition clip (A) onto opening rocker arm (B).
Check the condition of the key (15) and its groove, and install it.
Operations Section reference
Refit the inner timing belt covers 9 - 4.3, Refitting side covers
Refit the timing belt pulleys on the
heads and the timing belts
9 - 4.2,
Refitting the timing system
assembly
Refit the timing covers 9 - 4.2,
Refitting the timing belt
covers
Refit the horizontal cylinder
exhaust pipe
8 - 8,
Refitting the exhaust system
Refit the fuel tank 8 - 2,
Refitting the fuel tank
Refit the tank covers 5 - 2,
Refitting the fuel tank fairings
Refit the seat 5 - 3,
Refitting the seat
Refitting side covers
Lubricate the new O-rings (19) with the recommended grease and fit on the end cap (20).
Fit the end cap (20) on the left-hand side of the cylinder head.
