Cylinder head assemblies: camshafts
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4C.69.1.html[11/12/2015 18:40:46]

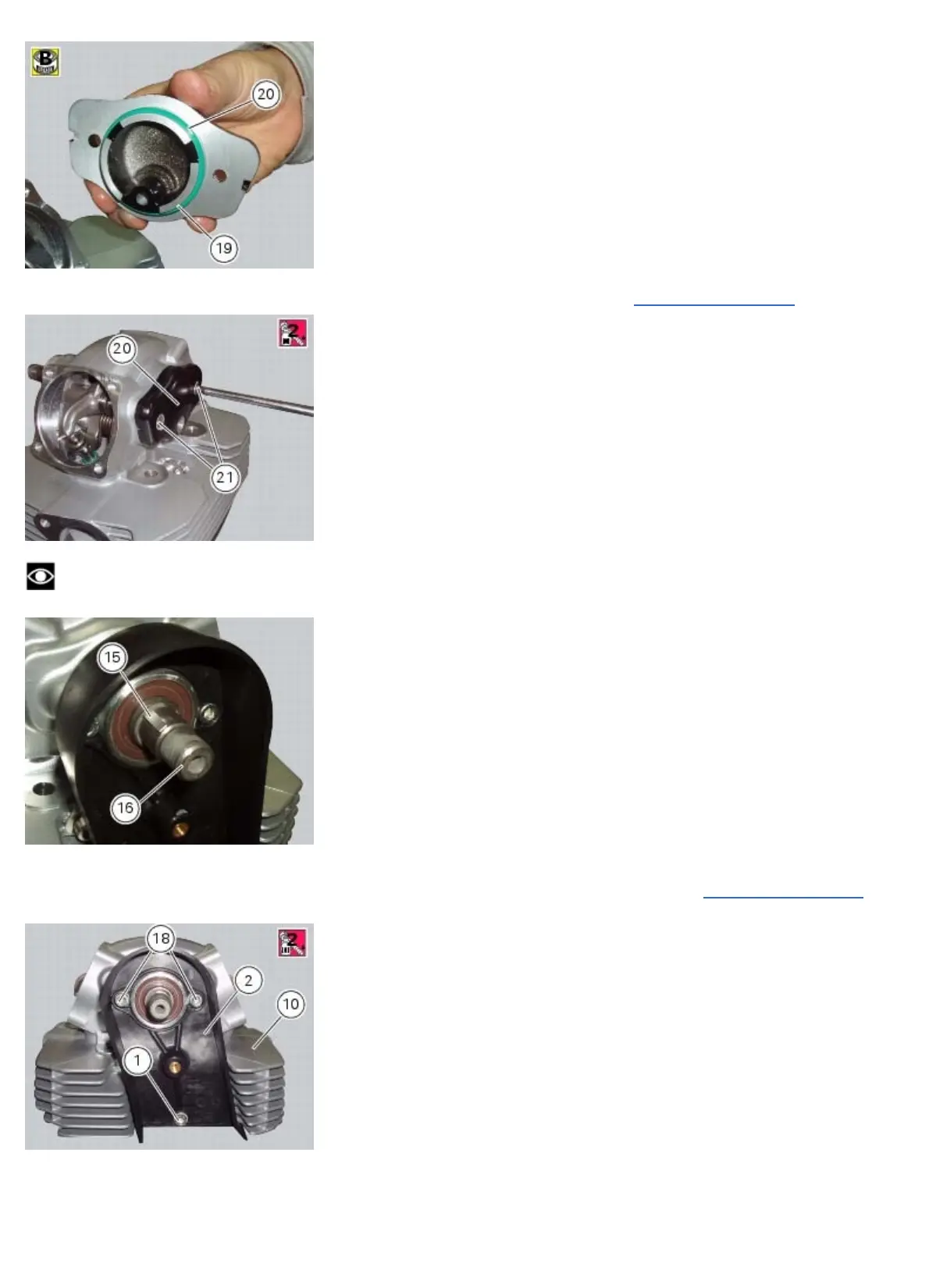

Fasten the cover (20) using the screws (21), with the recommended threadlocker.
Tighten the screws (21) to a torque of 10 Nm (Min. 9 Nm - Max. 10 Nm) (Sect. C 3,
Engine torque settings).
Note
Take care not to dislodge the key (15) located on camshaft (16).
Locate the cover (2) of the vertical cylinder head (10) on the left-hand side of the cylinder head and insert the retaining
screws (1) and (18).
Tighten the screws (18) and (1) to a torque of 10 Nm (Min. 9 Nm - Max. 11 Nm) (Sect. 3 - 3,
Engine torque settings).
Repeat the above operations for the other cylinder head (11).
