Ducati Monster 796 - Reassembly of the Oil Pump; Refitting the Oil Pump

Lubrication system: oil pump
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_2A.65.1.html[11/12/2015 18:40:43]

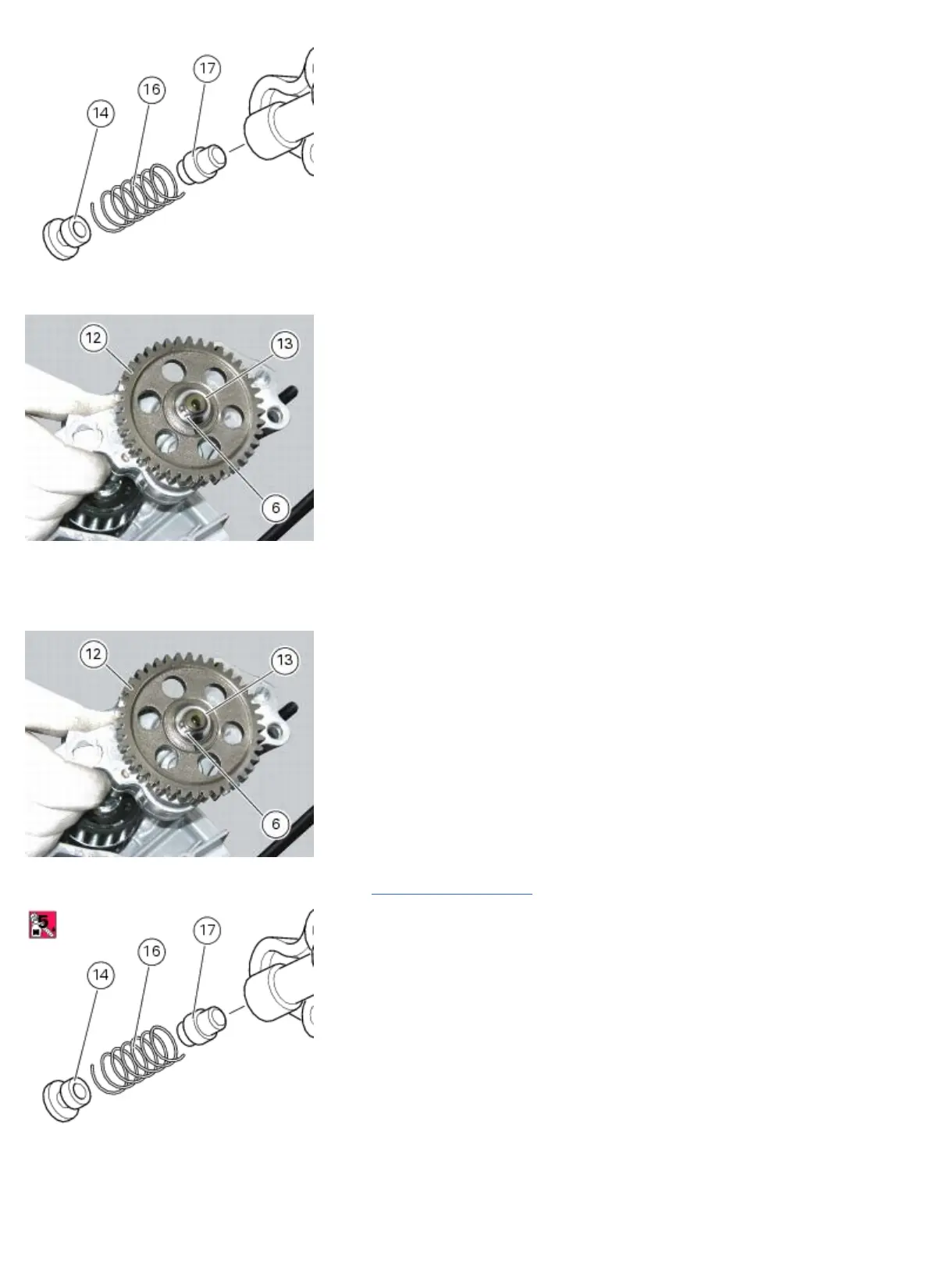

Remove the circlip (6), slide off the bush (13) and the circlip (3).
Slide out the pump drive gear (12).
Reassembly of the oil pump
Fit on the oil pump the pump drive gear (12), the circlip (3) and the bush (13).
Tighten the parts just fitted, inserting the circlip (6) in its seat.
Insert in the pump the by-pass valve (17), the spring (16) and screw the plug (14) and tighten the plug (3) to a torque of
17 Nm (Min. 15 Nm - Max. 19 Nm) Sect. 3 - 3,
Engine torque settings) by applying a threadlocker of medium strength.
Refitting the oil pump
If removed, apply specific threadlocker on the bushing (7) and screw it in the crankcase half, observing the height.
Position the reference bushings (15) and the oil sealing O-rings (2) and (4) according to the crankcase lubrication
channels.
