Ducati Monster 796 - Gearbox Assembly: Gearbox Shafts

Gearbox assembly: gearbox shafts
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_7B.76.1.html[11/12/2015 18:40:50]

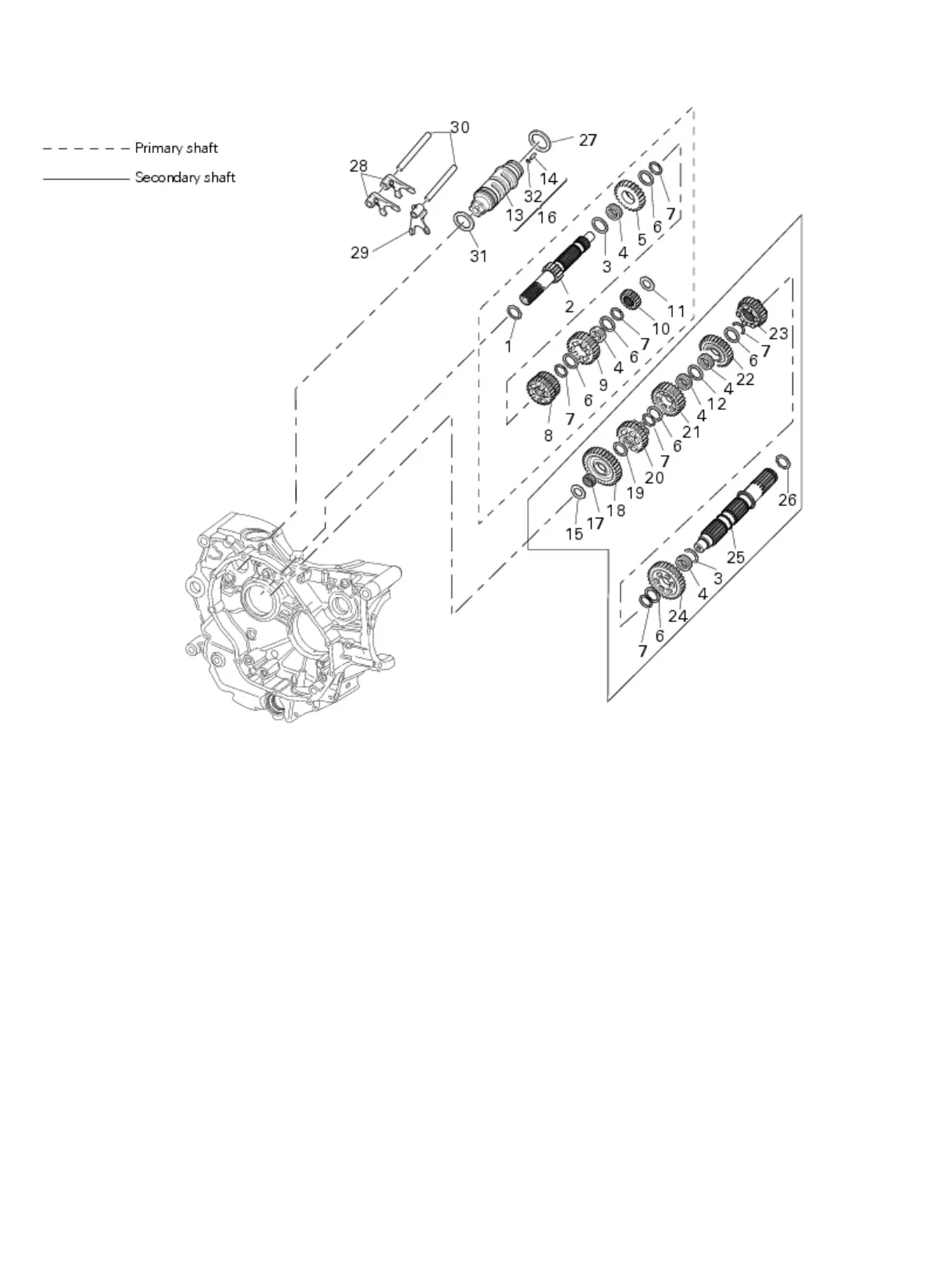

7.2 -Gearbox assembly: gearbox shafts
1 Shim, thickness 1
2 Gearbox primary shaft
3 Shim, thickness 0.5
4 Needle roller bearing
5
5
th
speed driving gear
6 Splined washer, thickness 0.5
7 Circlip
8
3
rd
- 4
th
speed driving gear
9
6
th
speed driving gear
10
2
nd
speed driving gear
11 Shim, thickness 1.8
12 Splined washer, thickness 0.5
13 Selector drum
14 Special needle roller (square cross-section)
15 Shim washer
16 Selector drum assembly
17 Needle roller bearing
18
1
st
speed driven gear
19 Shim, thickness 1
20
5
th
speed driven gear
21
4
th
speed driven gear
22
3
rd
speed driven gear
23
6
th
speed driven gear
24
2
nd
speed driven gear
25 Gearbox secondary shaft
26 Shim washer
27 Shim, thickness 1
28
1
st
, 4
th
- 2
nd
, 3
rd
speed selector fork
