Flywheel - alternator
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_8.77.1.html[11/12/2015 18:40:51]

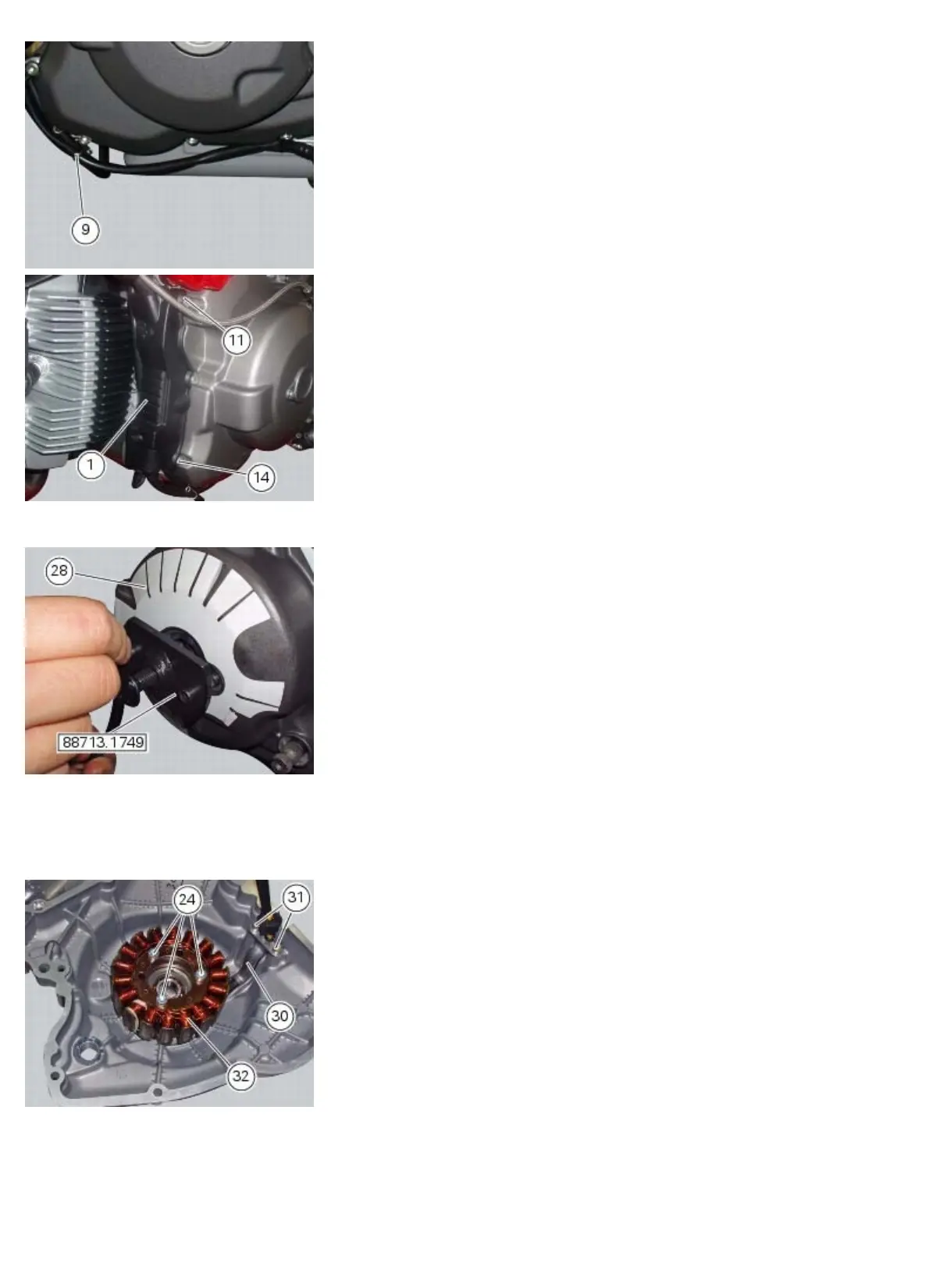

Fix service tool no. 88713.1749 to the holes left vacant by the two bolts (6) you have just removed.
Turn the tool shaft slowly to separate the cover (28) from the LH crankcase half.
Disassembly of the generator cover
Undo the three stator retaining screws (24) and the two screws (31) securing the cable guide bracket (30) from inside the
generator cover.
Remove the stator (32) and the cable guide bracket (30).
The generator cover is fitted with a bearing (26), held in place by circlip (27), which locates on the end of the crankshaft.
Remove the circlip (27) with circlip pliers.
Remove the bearing (26) using a universal puller.
