Rear shock absorber assembly
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_12.50.1.html[11/12/2015 18:40:35]
Overhauling the rear shock absorber

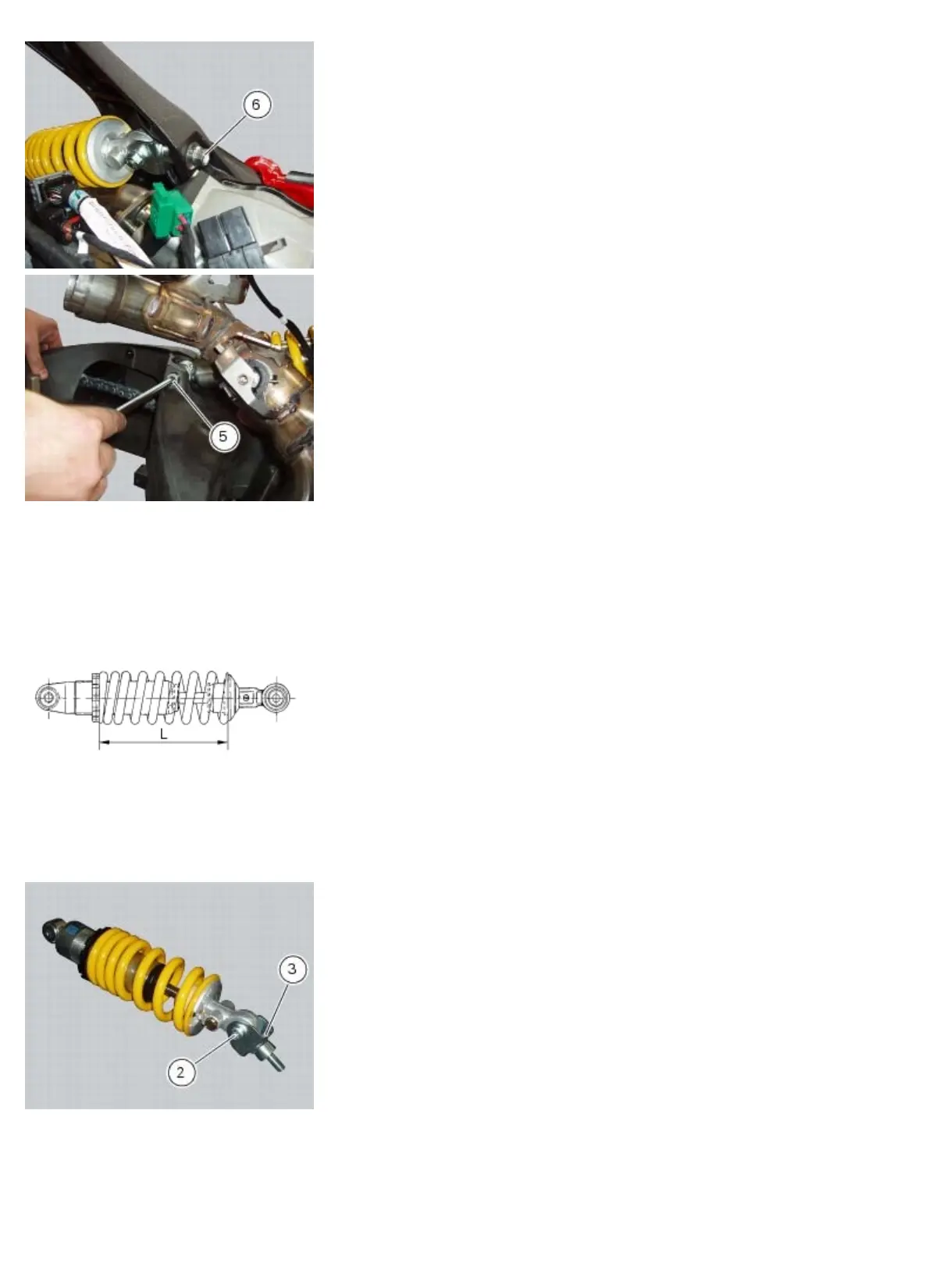

Before dismantling the shock absorber, measure the spring preload length (L). The same length must be restored on re-
assembly.
Disassembly of the rear shock absorber
Remove the shock absorber mounting (3) while holding the screw (2) and unscrewing the nut (4).
