Rear swingarm
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_13.51.1.html[11/12/2015 18:40:35]

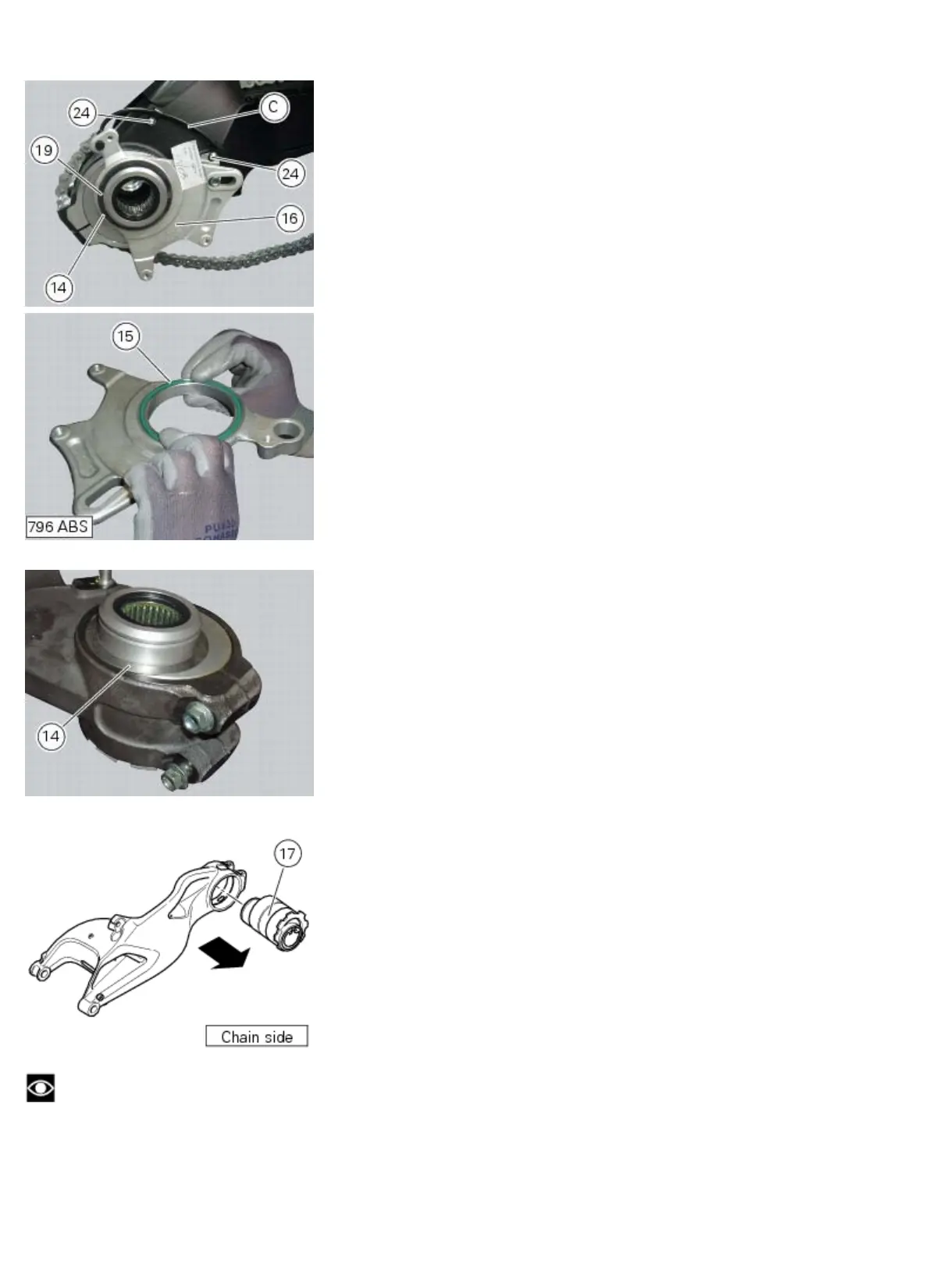

Loosen screws (24) and take the speed sensor cable (C) off the swingarm.
Remove the washer (14) and the calliper mounting bracket (16) with the two O-rings (15).
Remove the other washer (14).
Withdraw the eccentric hub (17) from the chain side of the swingarm.
Note
The rear hub is a component particularly critical to the dynamic safety of the motorcycle. under no circumstances may the
internal components of the hub be serviced or repaired. The hub may be ordered as a complete assembly, spare part
No. 756.2.006.1A.
Removal of the rear brake disc
Unscrew the four screws (31) and remove the phonic wheel (30).
