Frame inspection
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_17.55.1.html[11/12/2015 18:40:37]

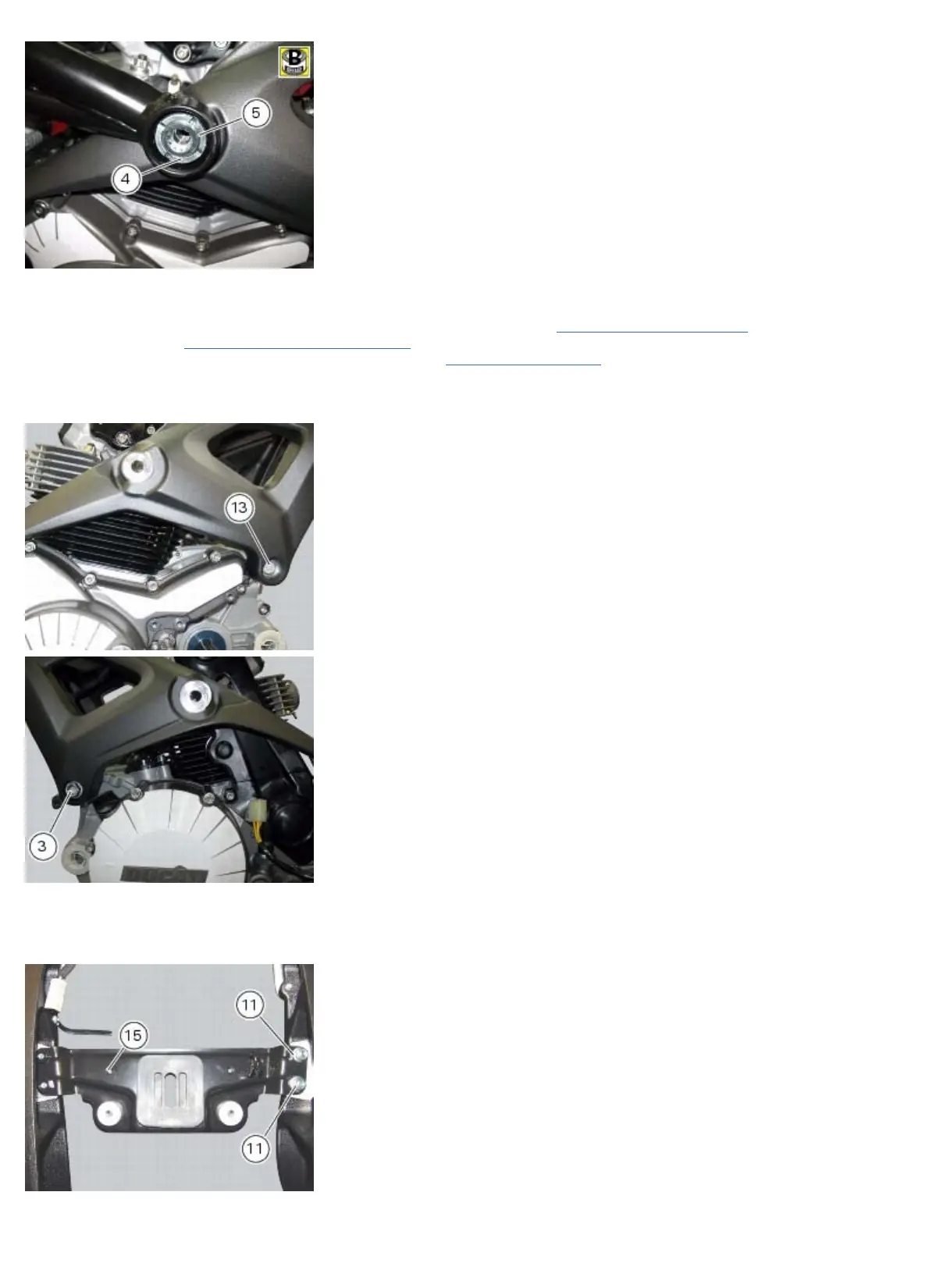

Removal of the rear subframe
Disconnect all the electrical parts connections from subframe (Sect. 6 - 1, Routing of wiring on frame), and remove the
silencers (Sect. 8 - 8,
Removal of the exhaust system).
Remove the frame as specified in the previous paragraph “
Removal of the frame”.
On the left-hand side of the motorcycle, restrain the pin (13) securing the rear of the subframe to the engine and
simultaneously unscrew the nut (3) on the right-hand side.
Withdraw the rear retaining pin (13) and remove the complete subframe assembly from the motorcycle.
Disassembly of the rear subframe
While holding the nuts (11), present only on the left-hand side of the rear subframe, unscrew the screws (12) and
remove the bracket (15).
