Frame inspection
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_17.55.1.html[11/12/2015 18:40:37]

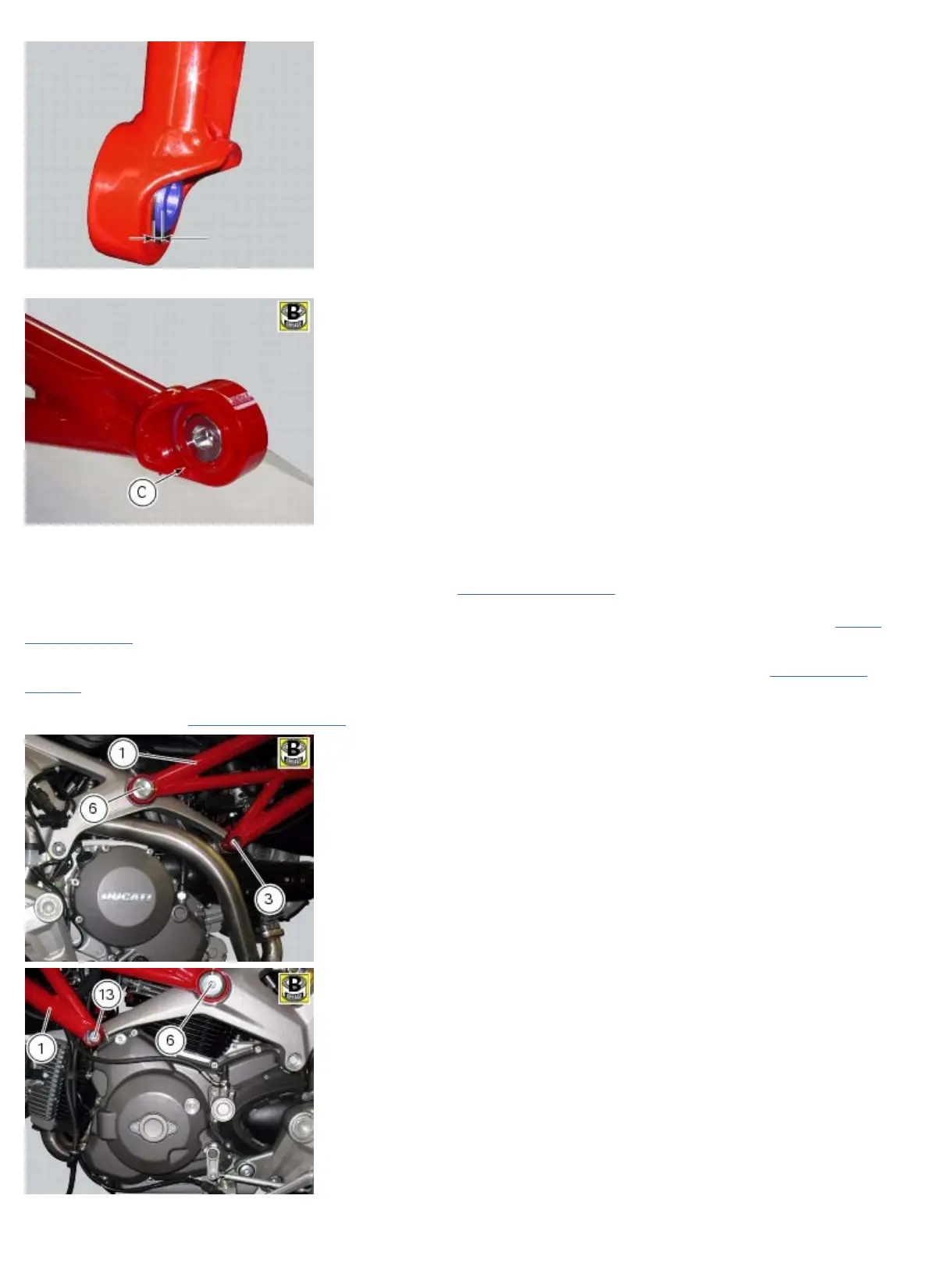

Loosen the clearance adjuster (4) with ring nut (5) until flush with the inner surface of frame bushes (C).
Withdraw the pin (13) from the engine block to release the rear subframe.
Apply the recommended grease to the threads of the pin (13) and of the nut (3).
Locate the frame (1) on the motorcycle and insert the pin (13) from the right-hand side.
Tighten the nut (3) to a torque of 60 Nm ±5% (Sect. 3 - 3,
Frame torque settings) while holding the screw (13).
Align the rear subframe and the frame (1), inserting the special screws (6) but without tightening at this stage.
Remove the special screws (6) and tighten the clearance adjusters (4) to a torque of 0.5 Nm ±10% (Sect. 3 - 3,
Frame
torque settings).
Locate service tool no. 88713.3166 on the ring nut (5) and fit the torque wrench to the tool.
Hold the clearance adjusters (4) and tighten the ring nuts (5) to a torque of 100 Nm ±5% (Sect. 3 - 3,
Frame torque
settings).
Lubricate thread and underside of special screws (6), then start them on the frame, and tighten them to a torque of 60
Nm ±5% (Sect. 3 - 3,
Frame torque settings).
