Ducati Monster 796 - Removal of the Airbox

Air intake
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_7.60.1.html[11/12/2015 18:40:41]
Spare parts catalogue
796
CRANKCASE HALVES
796
AIR INTAKE - OIL BREATHER
796 ABS
CRANKCASE HALVES
796 ABS
AIR INTAKE - OIL BREATHER
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
Removal of the airbox
Operations Section reference
Remove the seat 5 - 3, Removal of the seat
Remove the tank covers 5 - 2,
Removal of the fuel tank
fairings
Remove the fuel tank 8 - 2,
Removal of the fuel tank
Remove the ABS control unit 7 - 6,
Removing of the ABS control
unit
Remove the battery 6 - 2,
Removal of the battery
Remove the ECU connector 6 - 12,
Removal of the electronic
control unit
Connect the starter motor/solenoid
cable
6 - 3,
Removal of the starter motor

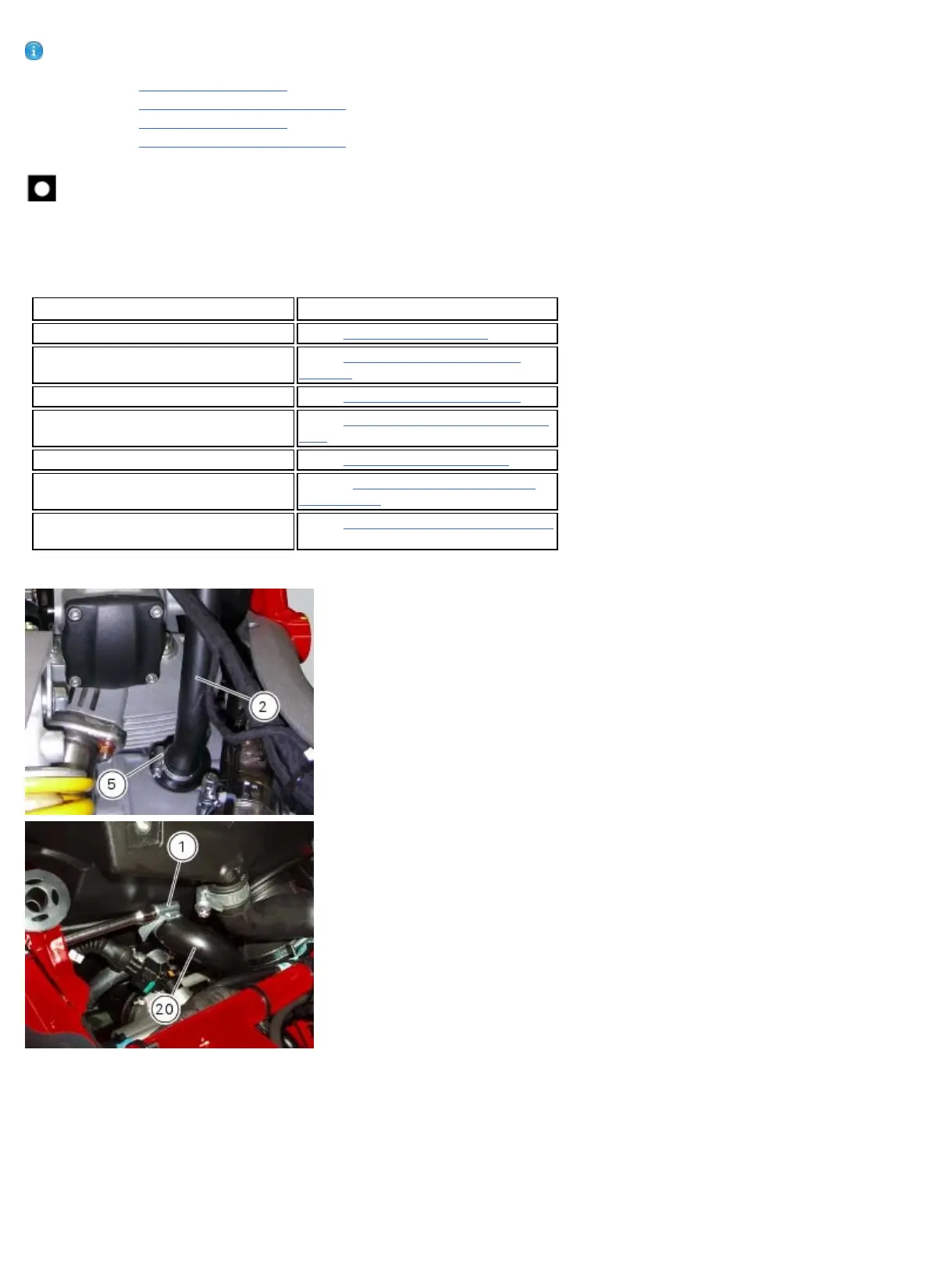

Detach the oil breather pipe (2) and the stepper motor tube (20) by slackening ties (1) and (5).
In the ABS version loosen the screws (31), to remove the hose guide (3) and collect the spacers (4).
