Seat
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_5_3.21.1.html[11/12/2015 18:40:17]

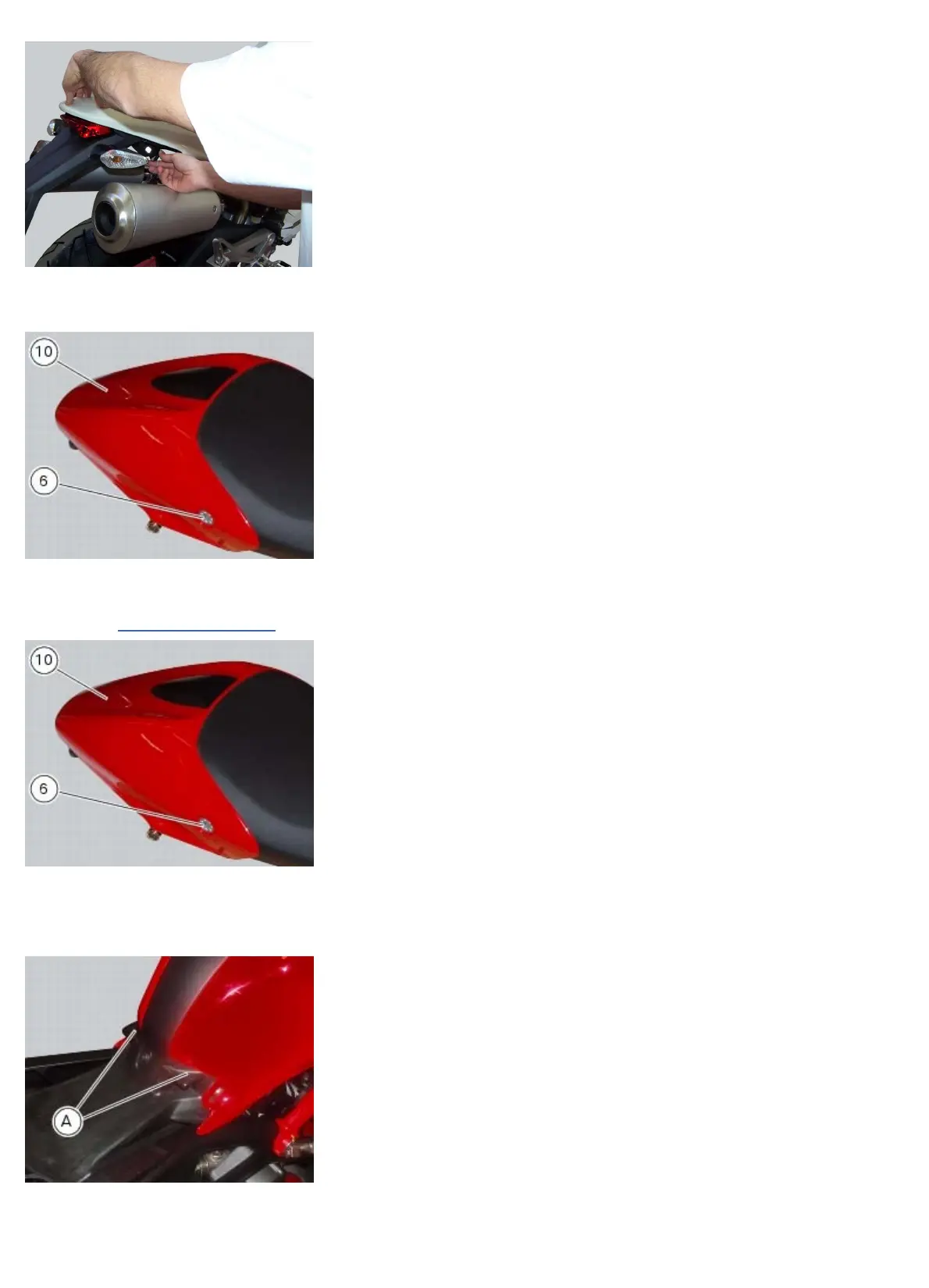

Disassembly of the seat
Unscrew the two special screws (6) and slide out the seat cover (10).
Reassembly of the seat
Refit the seat cover (10) to the seat inserting and tightening the special screws (6) to a tightening torque of 5 Nm ±10%
(Sect. 3 - 3,
Frame torque settings).
Refitting the seat
Refit the seat inserting the front ends of the seat base into the tabs (A) on the tank, then push the rear end of the seat
until you hear the screw in the lock click into place.
