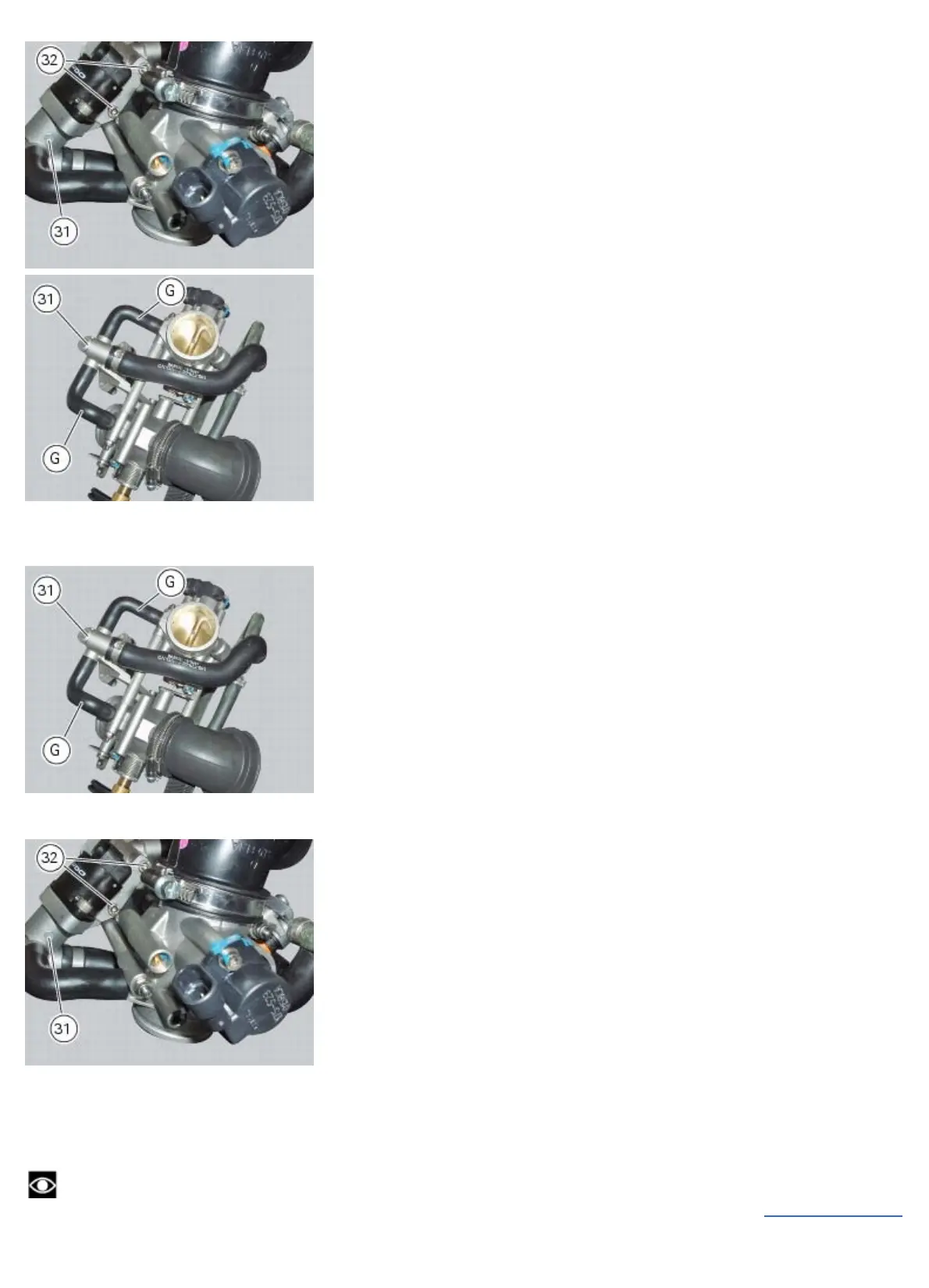

Refitting the stepper motor
Connect the hoses (G) to the throttle body.
Locate the stepper motor (31) with its support on the throttle body, fitting the screws (32).
Tighten the screws (32).
Refitting the throttle body
If the hoses (4) and (16) were removed, reconnect them to the throttle body with the clamps (3), positioning the hoses
and clamps as shown in the figure.
Note
The air temperature sensor (7) is installed on the vertical cylinder manifold (16); refer to Sect. 6 - 12, Air pressure sensor
for its installation.
