Ducati Monster 796 - Refitting the Oil Breather Valve; Removal of the Oil Breather Valve

Air intake
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_7.60.1.html[11/12/2015 18:40:41]
For the remaining reassembly operations, reassemble following the removal procedure in the reverse sequence, and route
wiring as shown in Sect. 6 - 1,
Routing of wiring on frame.

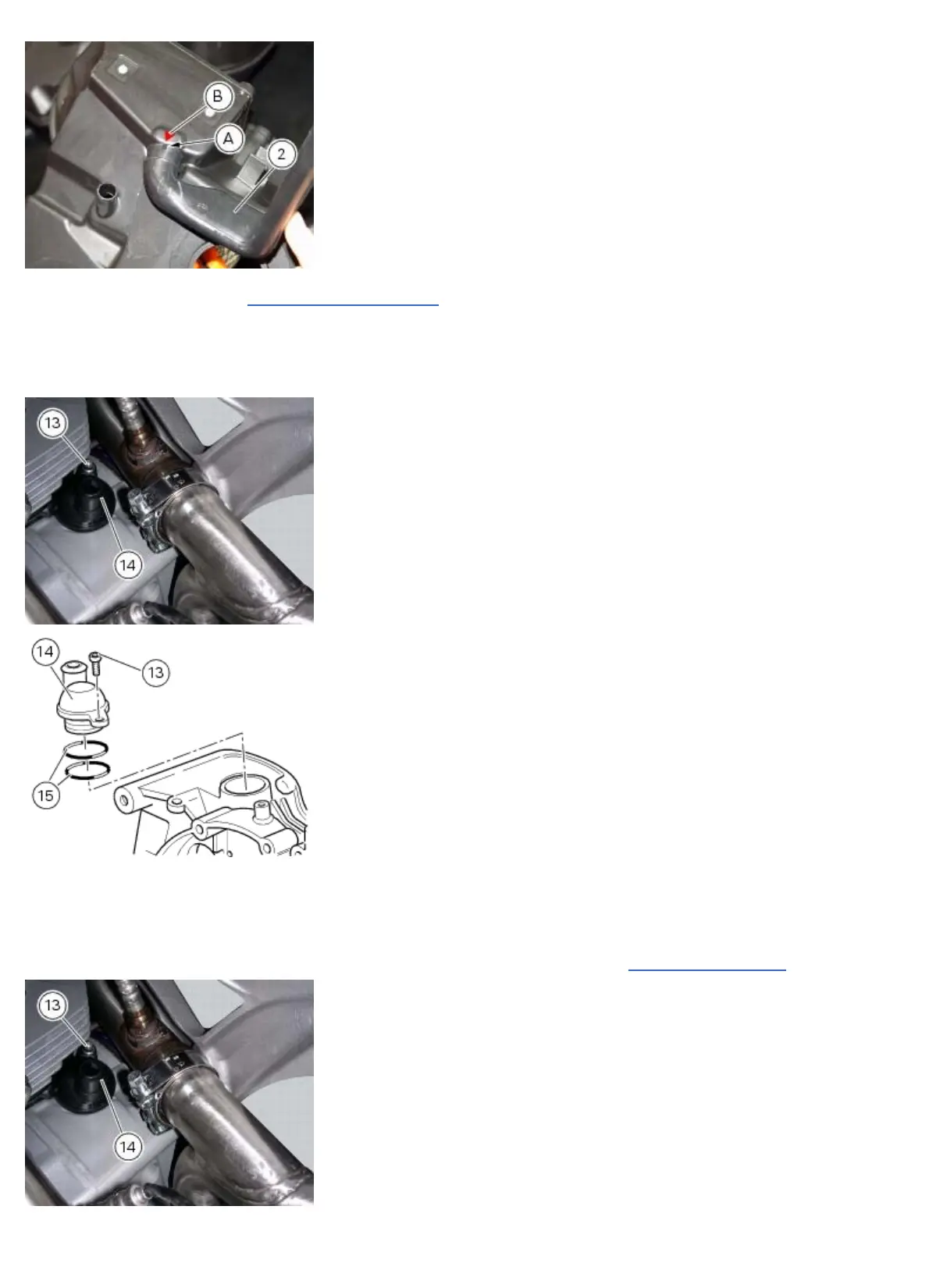

Removal of the oil breather valve
Undo the screw (13) and remove the oil breather valve (14) from the crankcase half.
Check the condition of O-rings (15) and renew them if necessary.
Refitting the oil breather valve
Lubricate the two O-rings (15) with engine oil.
Install the oil breather valve (14) in the hole on clutch-side casing aligning valve hole (L) with threaded hole (H) on casing
and starting screw (13).
Tighten the screw (13) to a torque of 10 Nm (Min 9 Nm - Max 11 Nm) (Sect. 3 - 3,
Frame torque settings).
