Stands
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_16.54.1.html[11/12/2015 18:40:37]

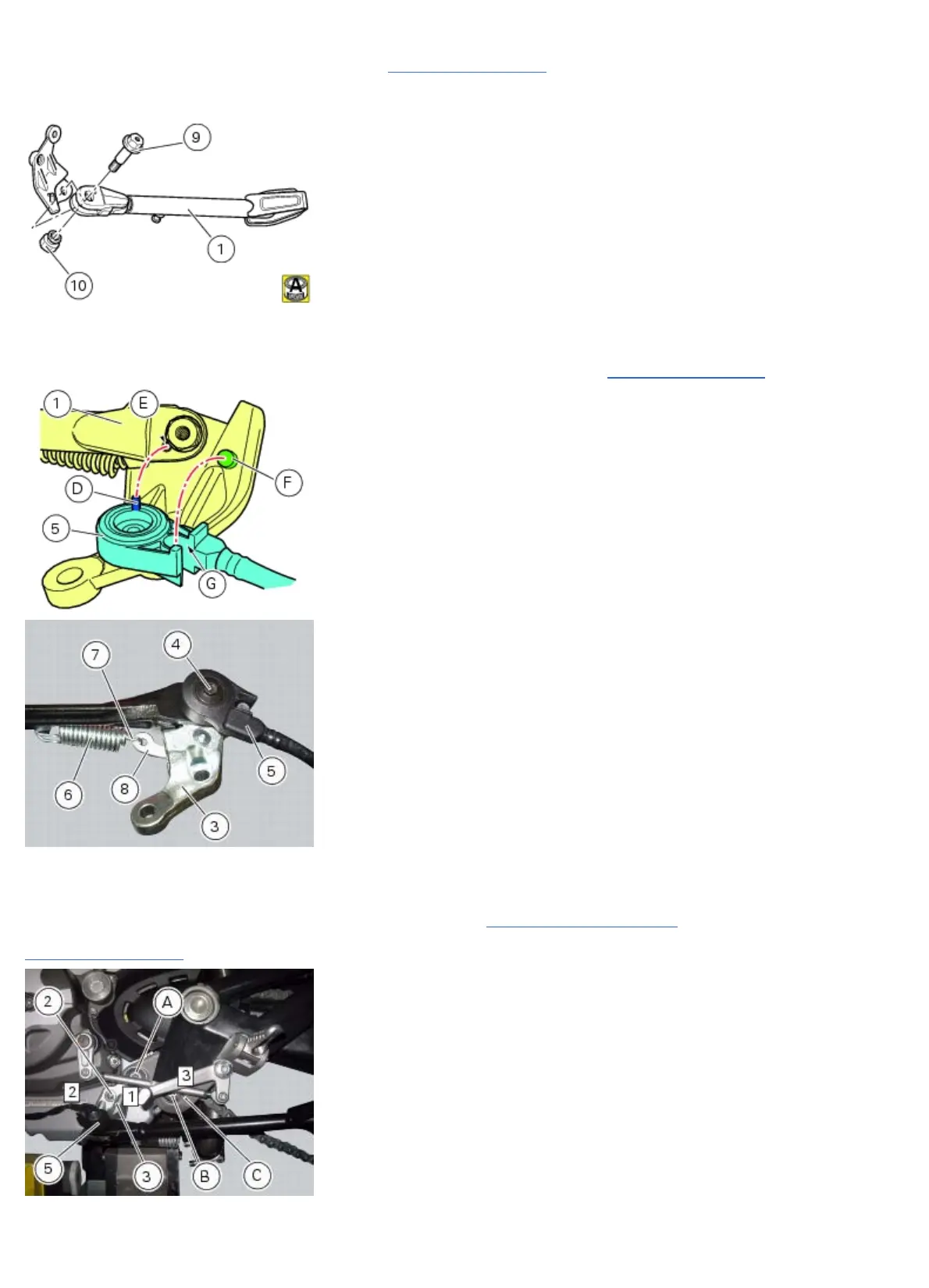

Grease the side stand leg (1) and fit it to the bracket (3). Secure it with the pivot screw (9) and the nut (10). Tighten the
nut (11) to a torque of 20 Nm ±10% (Sect. 3 - 3, Frame torque settings).
Position the side stand return springs (6) and (7) and attach them to plate (8) and to the stand (1).
Set switch (5) to stand (1) by inserting sensor pin (D) into the hole (E) and making sure pin (F) matches with groove (G)
on sensor.
Fit the retaining screw (4) and tighten it to a torque of 5 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Refitting the side stand
Locate the side stand bracket (3) between the engine and the LH footrest bracket (C) and fit the screw (2).
To place the stand switch wiring refer to the tables (Sect. 6 - 1,
Routing of wiring on frame).
Fit the screw (A) in the footrest bracket (C). Tighten the screws (2), (A) and (B) to a torque of 36 Nm ±10% (Sect. 3 - 3,
Frame torque settings), following the indicated sequence.
Connect the connector (5) of the side stand switch to the main wiring harness.
