Footrest brackets
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_15.53.1.html[11/12/2015 18:40:37]
The procedure is the same for the LH footrest.
Note
The footrest may also be removed with the footrest bracket installed on the motorcycle.
Refitting the footrest brackets
The refitting operations described below apply to both footrest brackets.

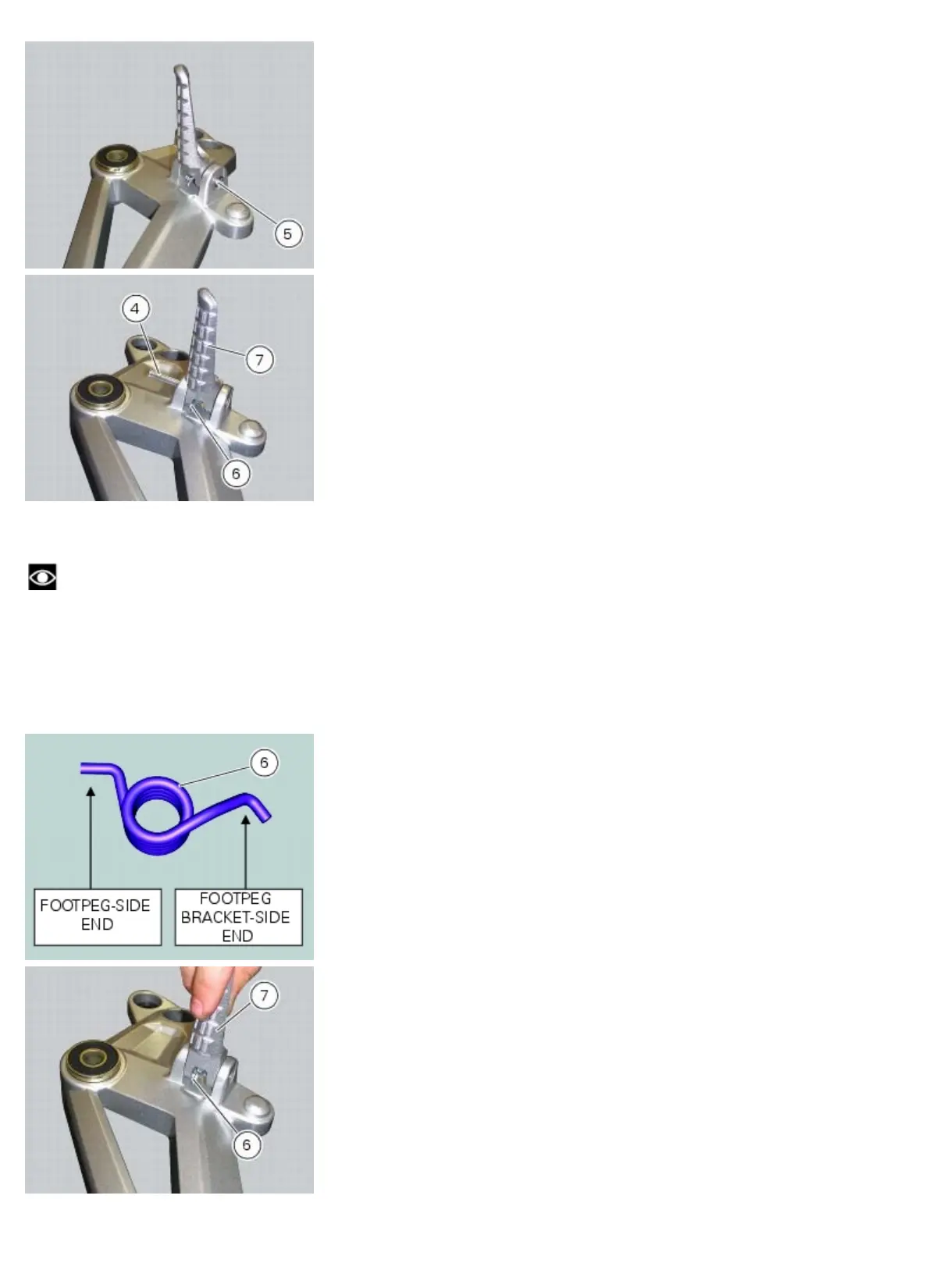

To reassemble the front RH footrest (7), locate the spring (6) between the footrest lugs and attach it to the footrest
bracket, inserting the straight end of the spring in the hole in the bracket.
Position the front footrest (7) in its seat.
Grease the pin (4) and insert it from the top, securing it on the other side with the circlip (5).
