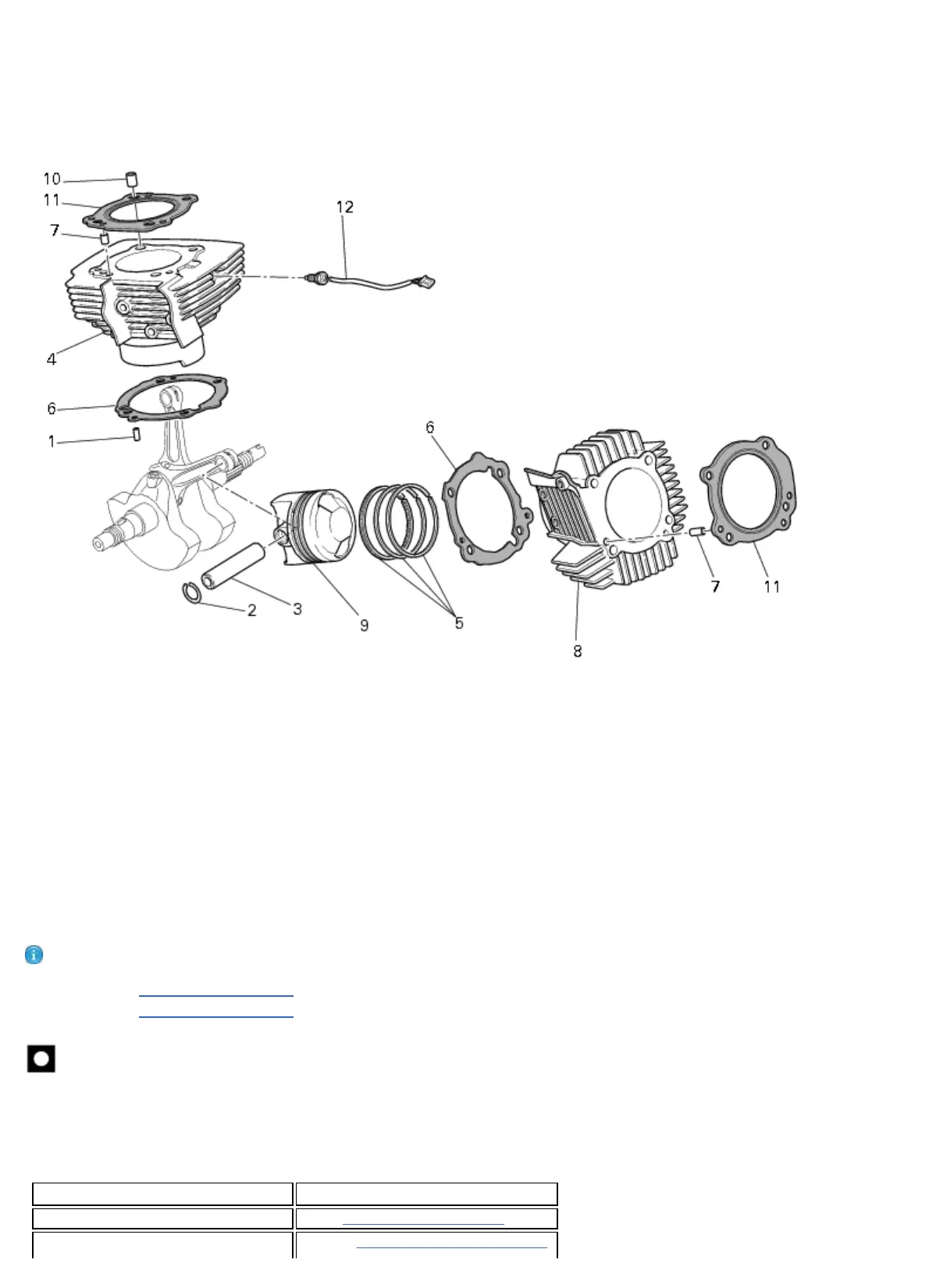

5 -Cylinder/piston assemblies
1 Pin
2 Circlip
3 Gudgeon pin
4 Vertical cylinder
5 Piston rings
6 Cylinder-crankcase gasket
7 Pin
8 Horizontal cylinder
9 Piston
10 Centring bush
11 Cylinder-head gasket
12 Cylinder temperature sensor
Spare parts catalogue
796
CYLINDERS - PISTONS
796 ABS
CYLINDERS - PISTONS
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
Removal of the cylinder/piston assembly
Operations Section reference
Remove the engine from the frame 9 - 1, Removal of the engine
Remove the side timing belt covers 9 - 4.2,
Removal of the timing belt
