Flywheel - alternator
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_8.77.1.html[11/12/2015 18:40:51]

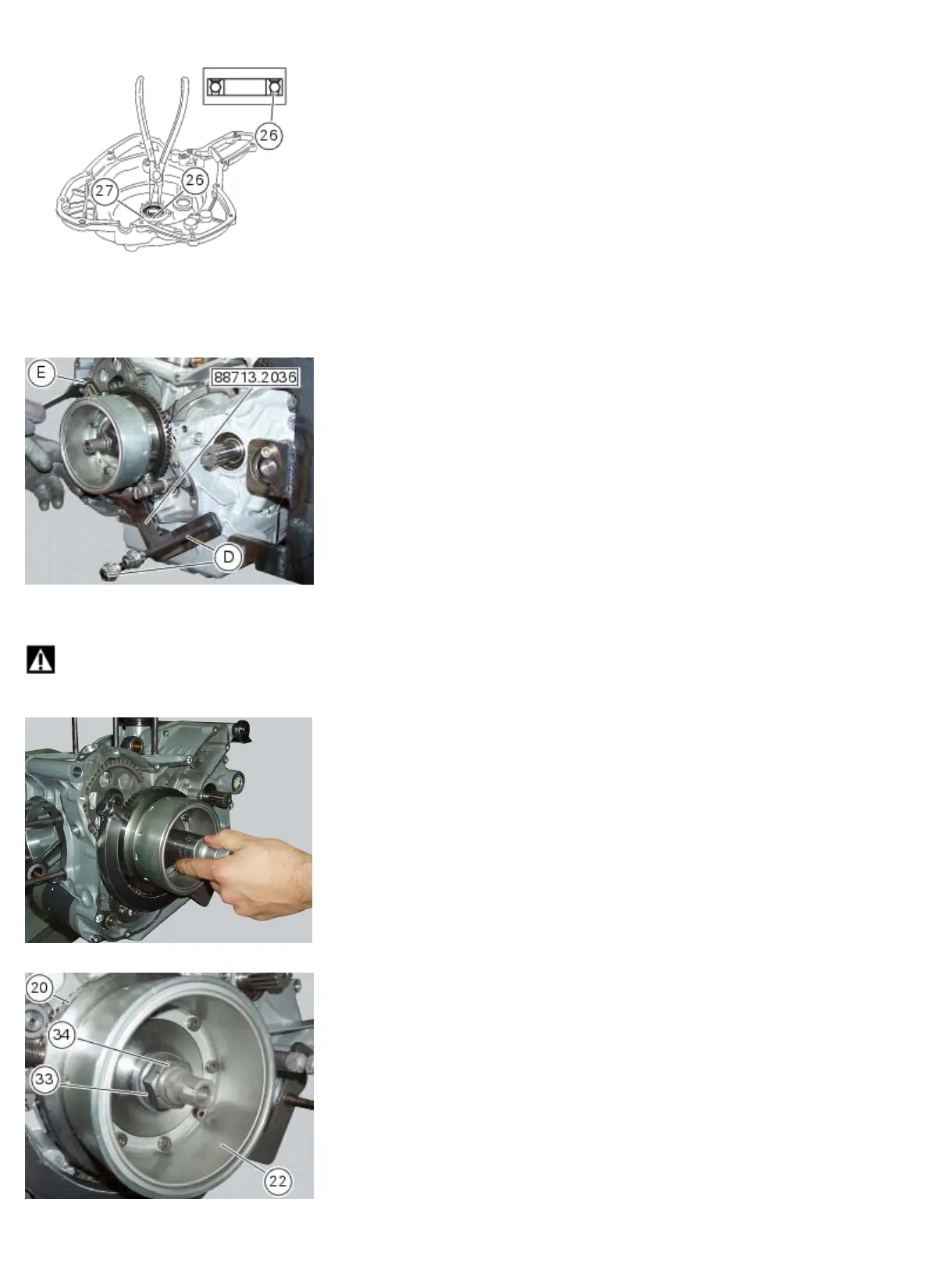

Removal of the flywheel/alternator assembly
Use service tool no. 88713.2036 fixed to the M10 side stand fixing holes (D).
Secure the tool to the flywheel with the screw (E).
Unscrew the alternator/flywheel nut (34), heating it with a hot air gun; do not use a naked flame as this could damage
the starting system components.
Warning
While unscrewing the nut, apply axial pressure to the socket to avoid damage or injury in the event of the wrench
suddenly slipping off the nut.
Remove the nut (34), the Belleville washer (33) and the flywheel assembly (22) together with gear (20).
Remove the inner race (18), the needle roller bearing (19) and the washer (17).
