Clutch assembly: APTC wet clutch
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_6A.72.1.html[11/12/2015 18:40:48]

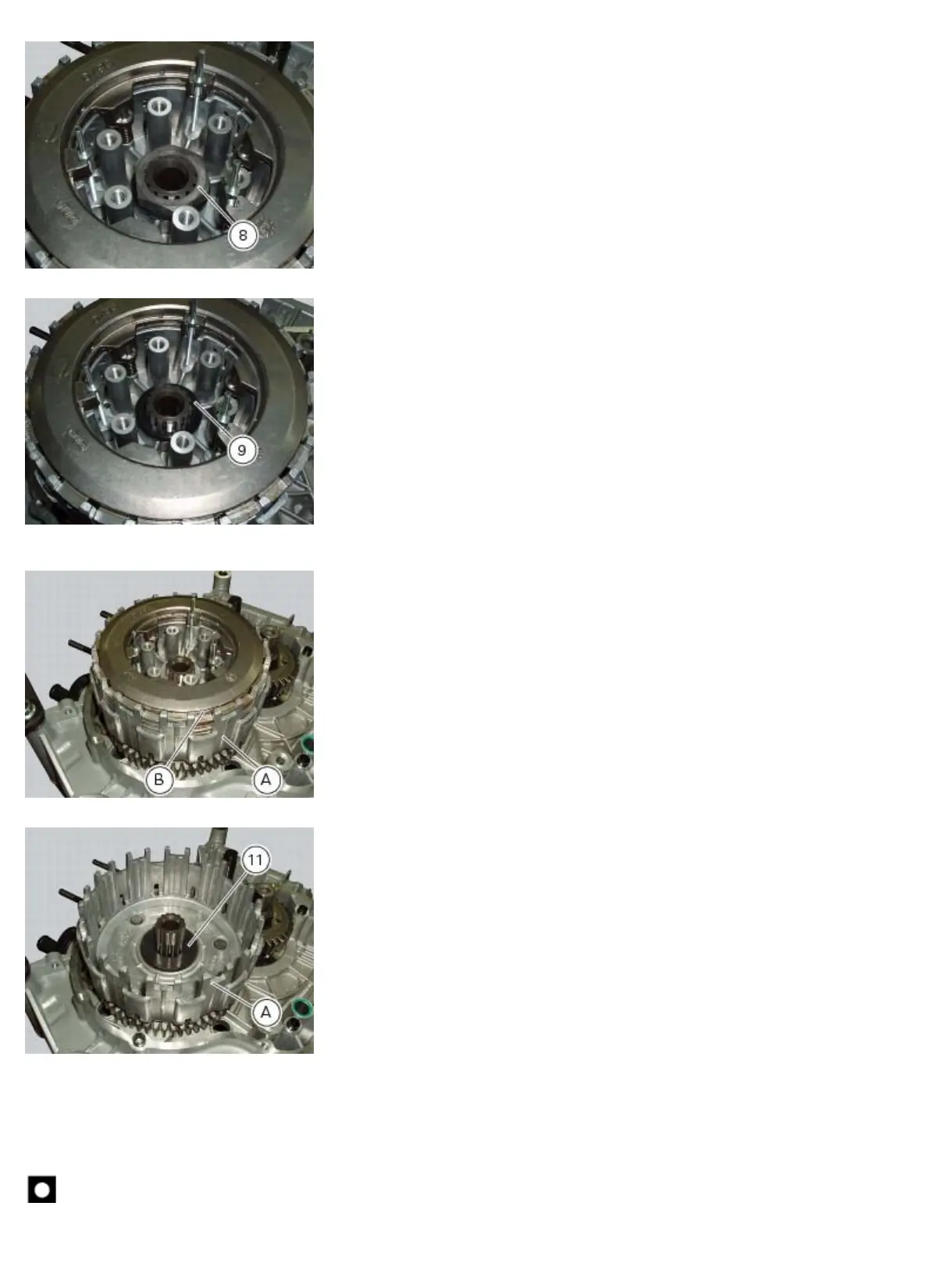

Remove the washer (9).
Withdraw the clutch hub-plates-centre assembly (B) from the clutch drum (A), marking the components so as to be able
to install them in the same position.
Remove the spacer (11) from the clutch drum (A).
Disassembly of the clutch hub-plates-centre assembly
Unscrew the three tools 88713.2591.
Withdraw the hub (13) and the plates (7) from the clutch centre (10). Recover the three springs (12).
Remove the clutch plates (7) from the hub (13).
Important
When removing the plates, keep them in the same order as they were originally installed, tying them together if
necessary.
