Ducati Monster 796 - Removing of the ABS Control Unit

System components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_6.43.1.html[11/12/2015 18:40:31]
Refit the right-hand footrest bracket (Sect. 7 - 15, Refitting the footrest brackets).

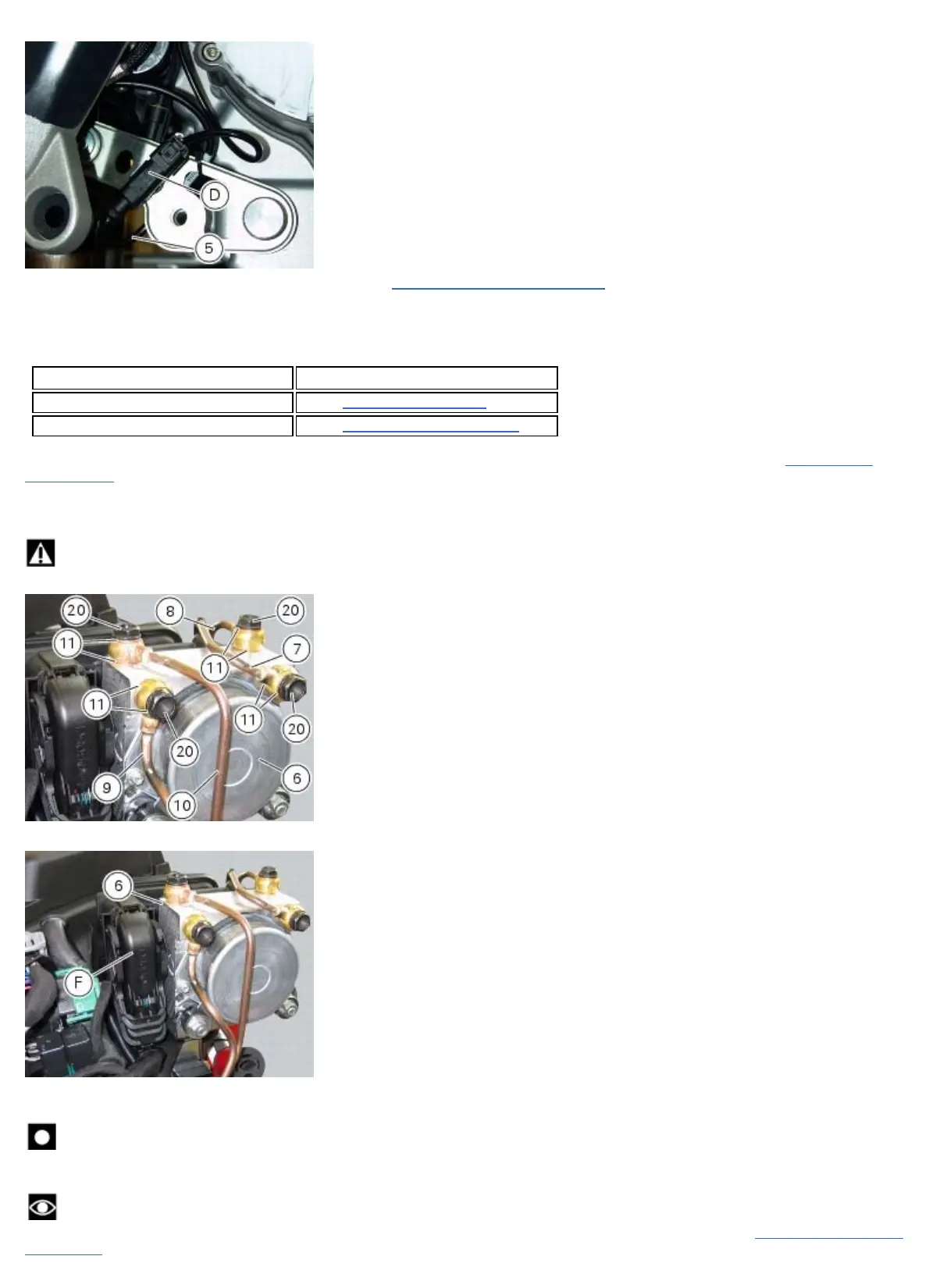

Removing of the ABS control unit
Operations Section reference
Remove the seat 5 - 3, Removal of the seat
Remove the fuel tank 8 - 2,
Removal of the fuel tank
Drain the brake fluid in the pipes disconnecting these from the cylinder and from the calliper (Sect. 4 - 3,
Draining the
brake circuit).
Loosen the four special screws (20) securing the pipes (10), (9), (8) and (7), on the ABS control unit (6), eliminating the
gaskets (11).
Warning
Every time that gaskets (11) are removed, they must be replaced with new gaskets (11).
Disconnect the connector (F) from the ABS control unit (6).
Remove the ABS control unit (6).
Important
Do not open the ABS control unit: if it is faulty, replace it.
Note
Should it be necessary to replace one or more hoses, follow the procedure outlines in the paragraph “Flexible wiring/hoses
positioning“ to determine the hose routing on the vehicle.
