If you do not have a brake bleeder available, connect a length of transparent plastic tubing to the bleed valve as outlined
in the draining procedure.
Press the lever or the pedal half way or until the pressure in the system is detected, open the bleed valve and take the
lever or pedal through the whole stroke; Tighten the bleed valve to the above mentioned torque (Sect. 3 - 3,
Frame
torque settings) and release the lever or the pedal.
Important
Do not release the brake lever (or pedal) until the bleed valve has been fully tightened.
Finally check that with the bleed valves closed the activation of the pressure with the lever or pedal is correctly.

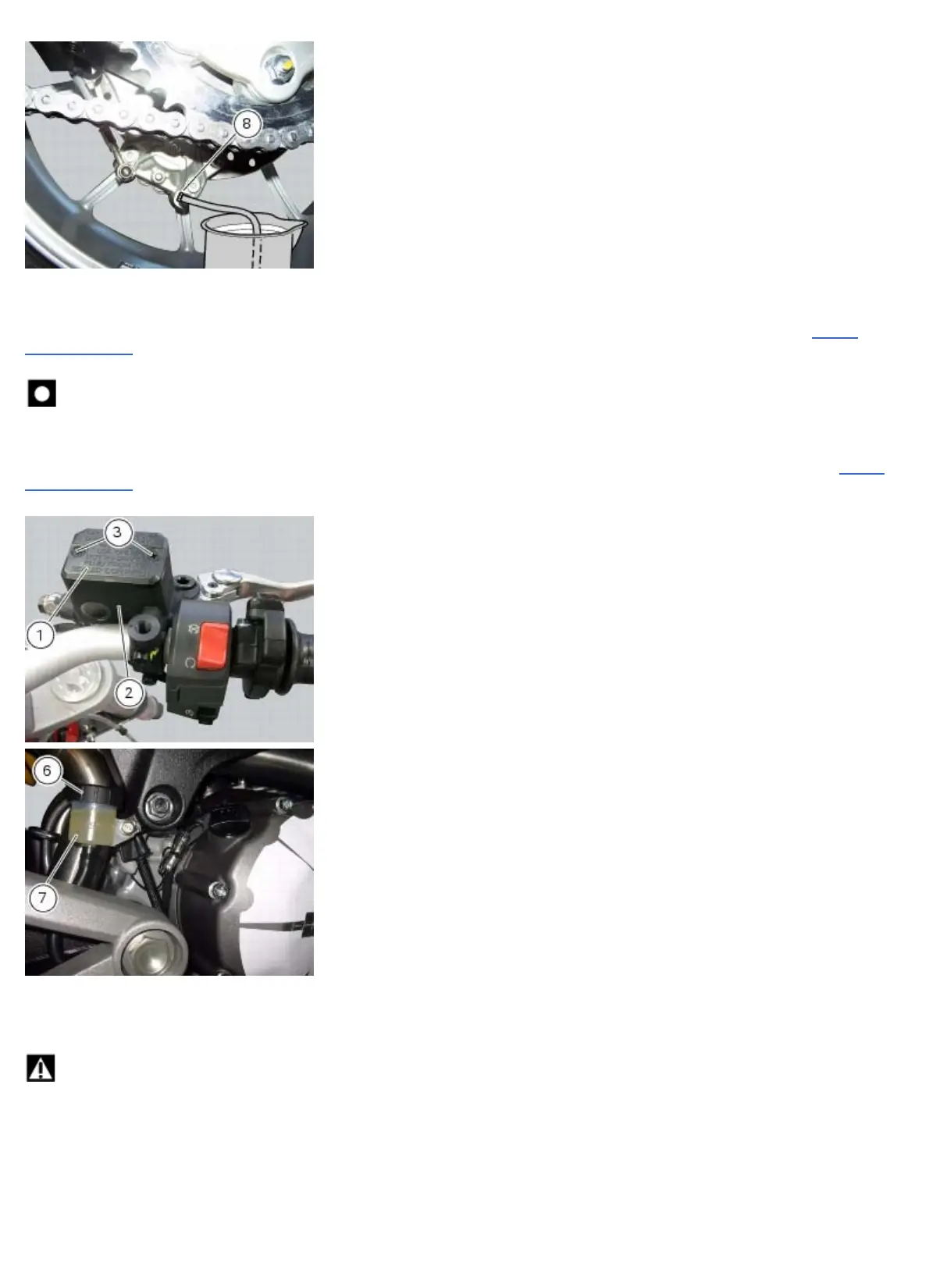

Tighten the bleed valve (5) to a torque of 4 Nm±10% and the valve (8) to a torque of 10 Nm±10% (Sect. 3 - 3,
Frame
torque settings) and mount the protection cap.
Level the liquid and refit the cover (1) by tightening the screws (3) on the tank (2) or the cap (6) on the tank (7).
Changing the clutch fluid
Warning
Clutch fluid will damage painted surfaces if spilled on them. It is also very harmful if it comes into contact with the skin or
with the eyes; in the event of accidental contact wash the affected area with abundant running water.
Undo the screws (3) and remove the cover and membrane (1) from the clutch fluid reservoir (2).
