Air intake
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_7.60.1.html[11/12/2015 18:40:41]
Refitting the airbox
Check that the rubber bushes (19) are present on the airbox.

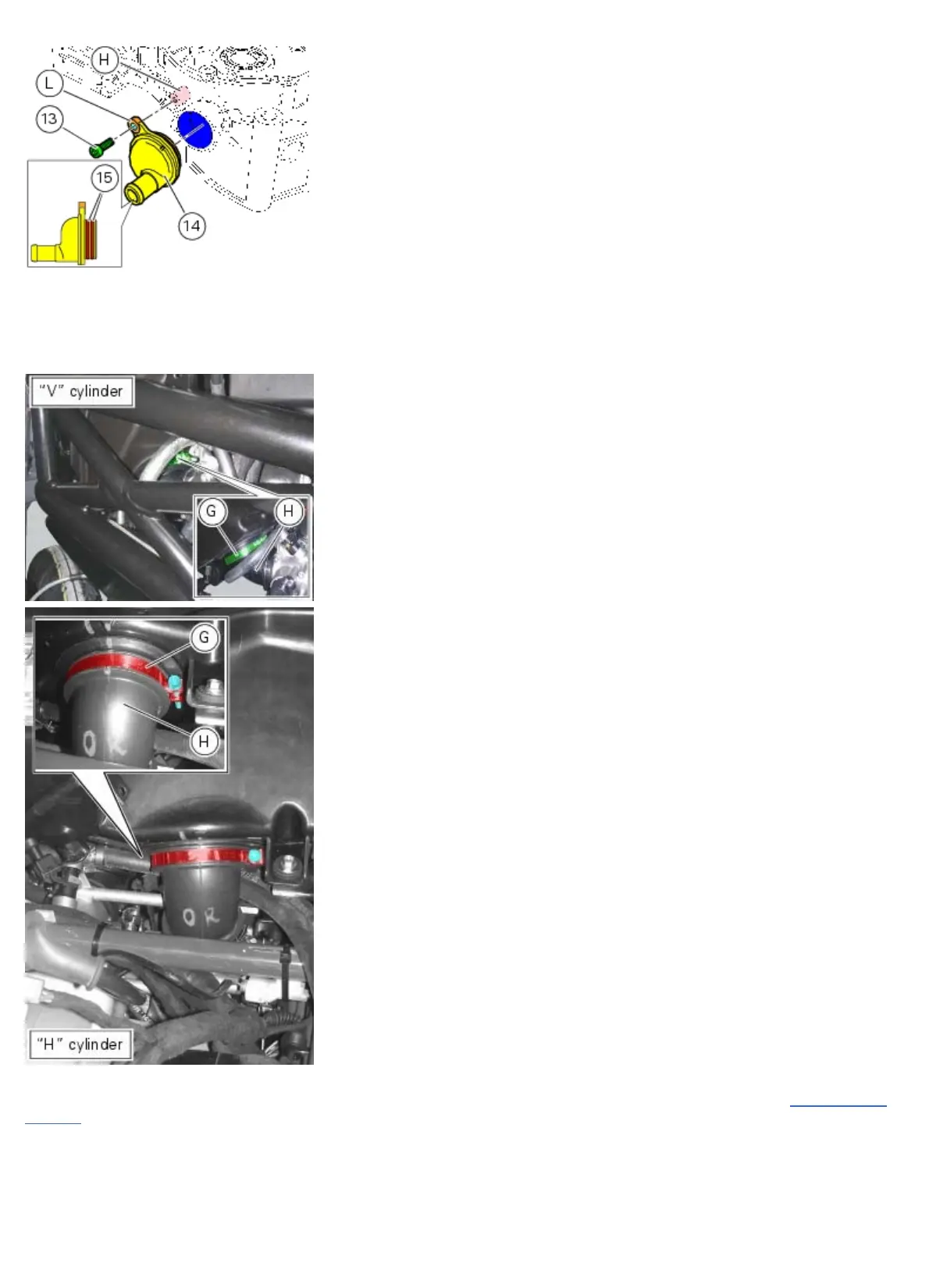

Check that clamps (G) are correctly positioned on intake manifolds (H), with the fixing screws oriented as shown in the
figure.
Locate the airbox assembly on the throttle body.
Fit and tighten the screws (16) with spacers (17) on the airbox, to a torque of 10 Nm ±10% (Sect. 3 - 3, Frame torque
settings).
