Ducati Monster 796 - Refitting the Timing Gears

Crankcase assembly: external components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9A.78.1.html[11/12/2015 18:40:52]

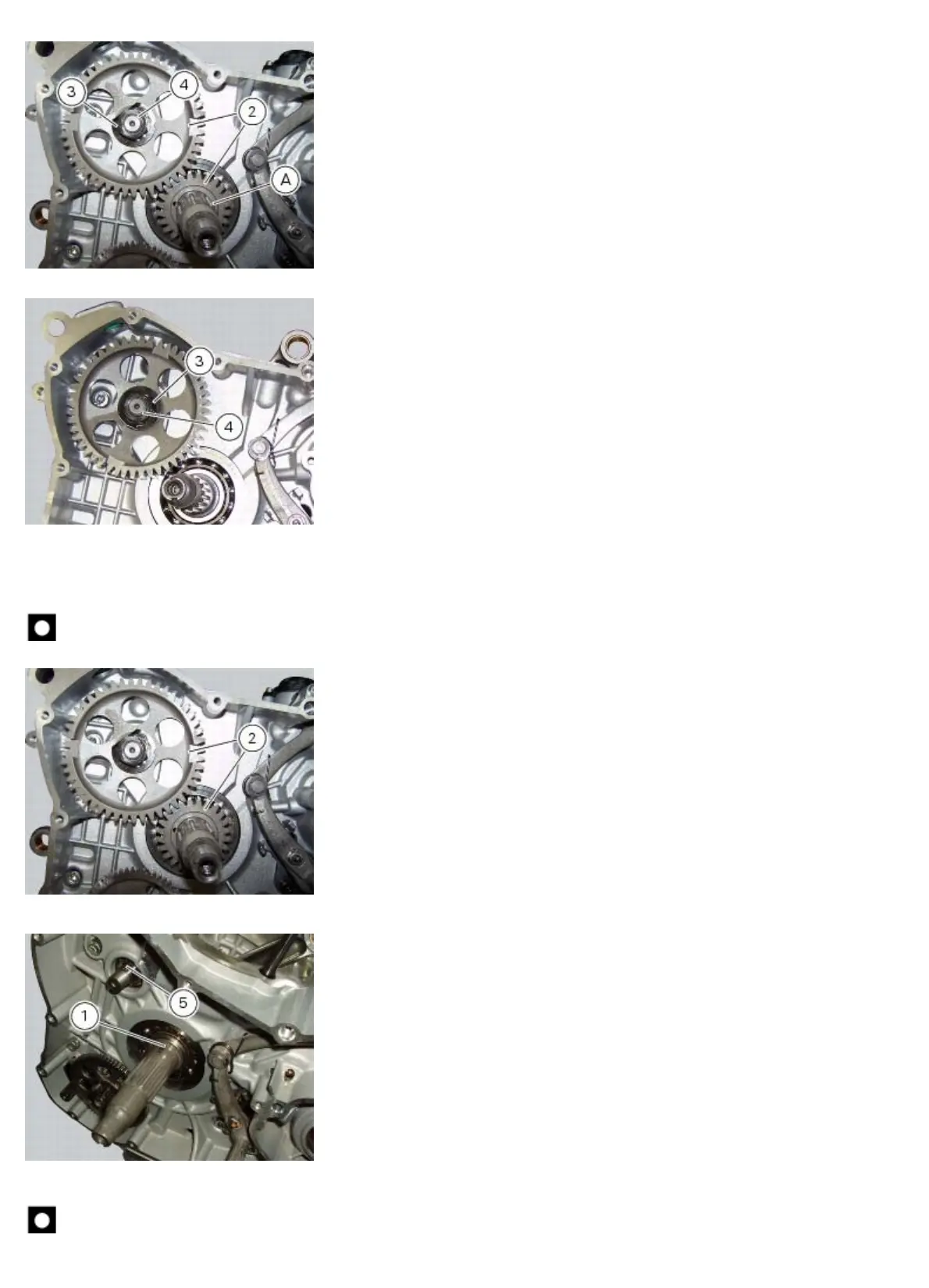

Remove the nut (4), the washer (3) and the timing driven gear (B).
Refitting the timing gears
Before refitting, check the wear on the timing gear pair (2) and renew if necessary.
Important
The timing gears (2) must always be renewed as a pair.
Check that the key (1) is correctly fitted on the timing belt driveshaft and that key (5) is correctly fitted on the
crankshaft.
Refitting is the reverse of removal.
Important
On completion of the refitting operations, check that tab washer (3) is staked against nut (4) in such a way as to prevent
