Ducati Monster 796 - Removal of the Swingarm

Rear swingarm
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_13.51.1.html[11/12/2015 18:40:35]

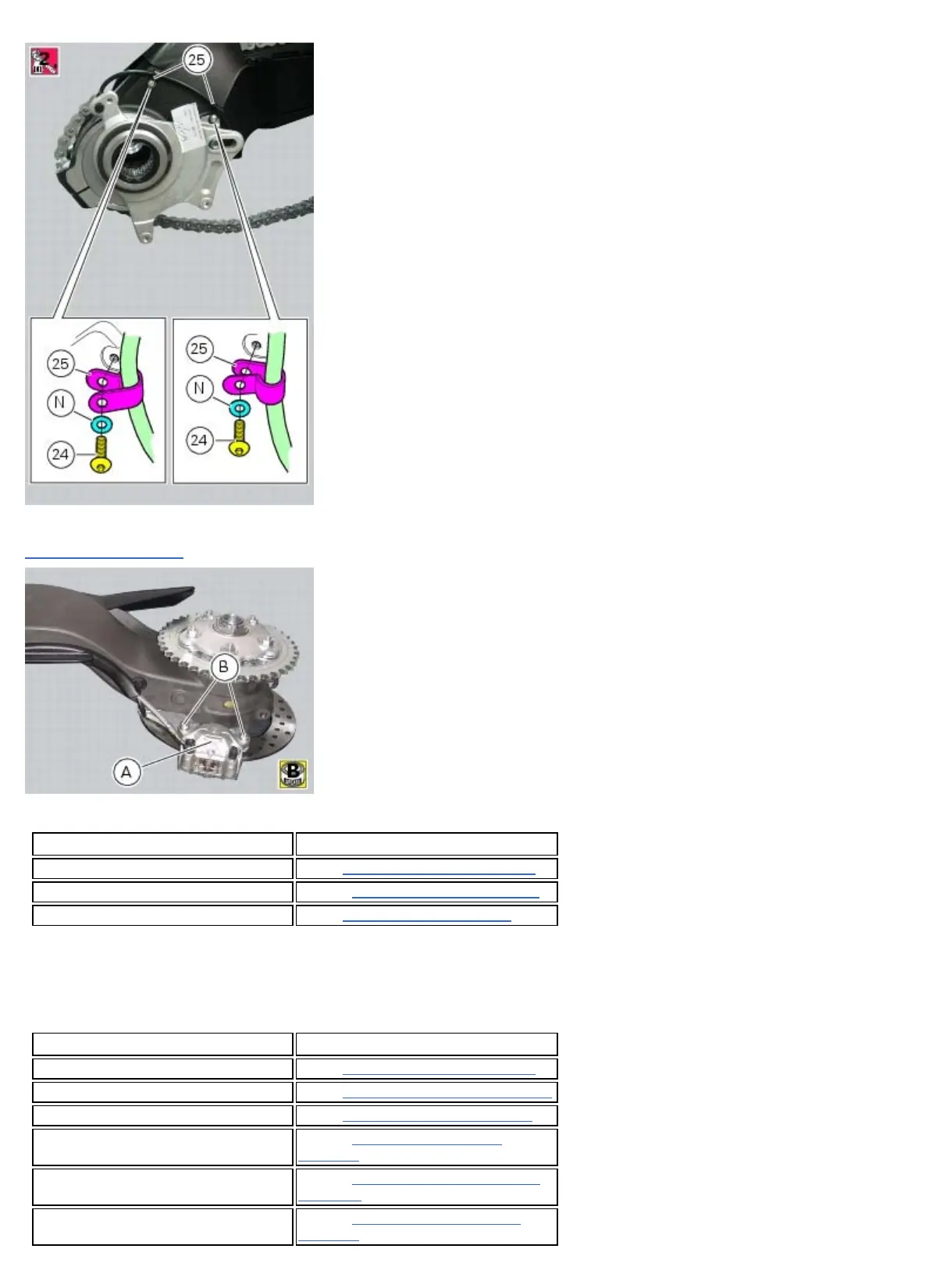

Fit the rear brake calliper (A) over the brake disc, aligning it with the holes in the calliper mounting bracket. Grease the
threads and undersides of the heads of the screws (B). Tighten the screws (B) to a torque of 25 Nm ±5% (Sect. 3 - 3,
Frame torque settings).
Operations Section reference
Tension the chain 4 - 3, Adjusting the chain tension
Refit the rear sprocket 7 - 14,
Refitting the rear sprocket
Refit the rear wheel 7 - 2,
Refitting the rear wheel
Removal of the swingarm
Before removing the parts in question, you must first carry out the following operations:
Operations Section reference
Slacken the chain 4 - 3,
Adjusting the chain tension
Remove the rear mudguard 5 - 4,
Removing the rear mudguard
Remove the rear wheel 7 - 2,
Removal of the rear wheel
Remove the rear sprocket 7 - 14,
Replacing of the rear
sprocket
Remove the shock absorber from
swinging arm
7 - 12,
Removal of the rear shock
absorber
Remove the footrests 7 - 15,
Removal of the footrest
brackets
