Rear wheel
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_2.39.1.html[11/12/2015 18:40:29]
Refitting the rear wheel
Clean the mating surfaces and lubricate the threaded end of the wheel shaft with the recommended grease.

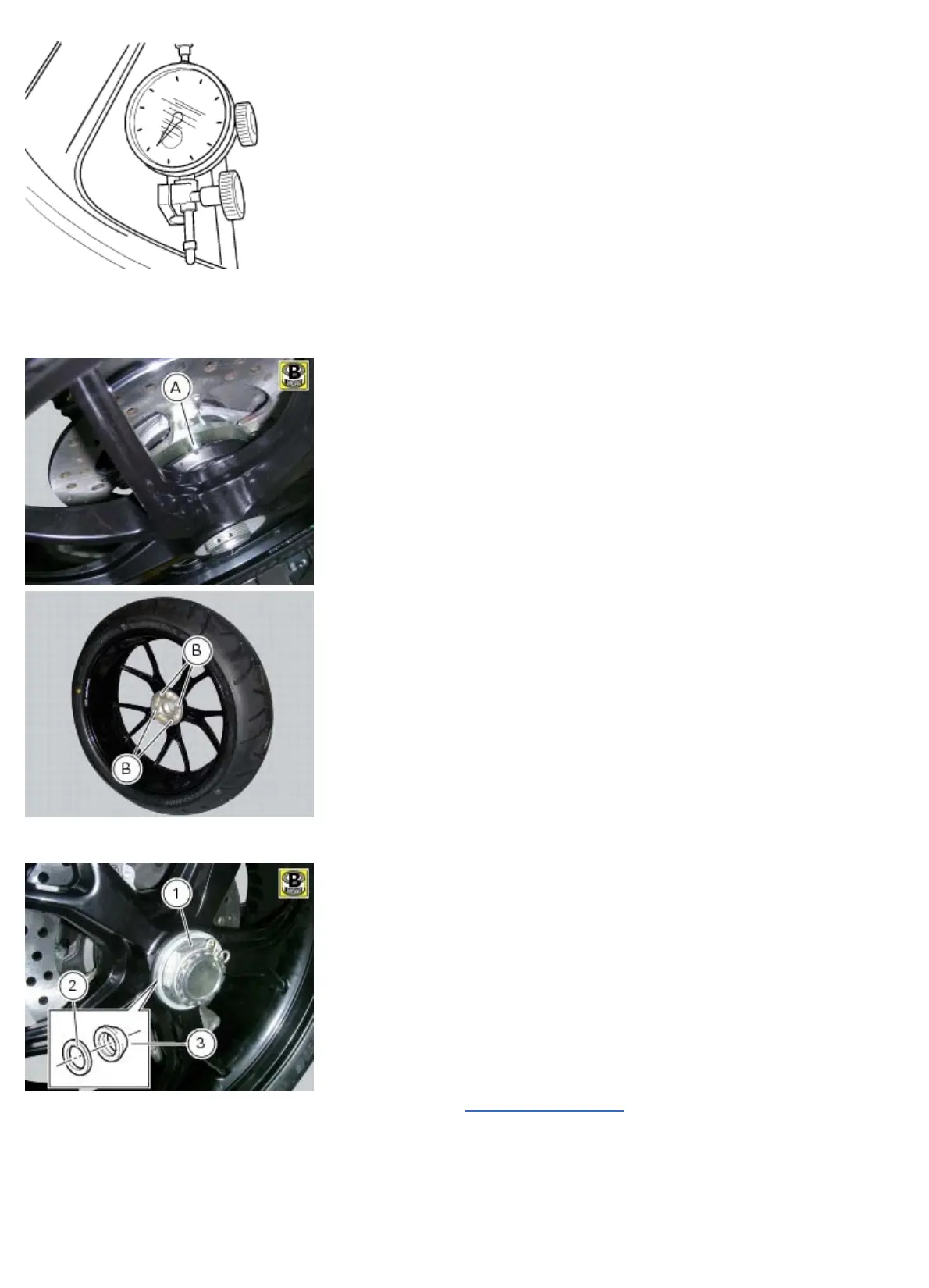

Fit the rear wheel centring it in the shaft and engaging pegs (A) into holes (B) on wheel.
Apply the recommended grease to the threads of the pin and of the nut (1).
Fit the bush (3) on shaft, setting it with the taper side facing the wheel, fit the washer (2) and insert nut (1) by hand.
Tighten the nut (1) to a torque of 176 Nm ±5% (Sect. 3 - 3, Frame torque settings) checking that the hole on the nut is
aligned with one of those in the wheel shaft.
Possibly obtain this condition by slightly turning the nut.
Install clip (6) on nut, with the bent end (A) toward the wheel.
Insert clip (6) bent end (A) into nut hole (1) and wheel shaft hole.
Then push circlip (6) inside nut groove (1).
