Ducati Monster 796 - 12 Rear Shock Absorber Assembly; Rear Suspension System; Removal of the Rear Shock Absorber

Rear shock absorber assembly
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_12.50.1.html[11/12/2015 18:40:35]

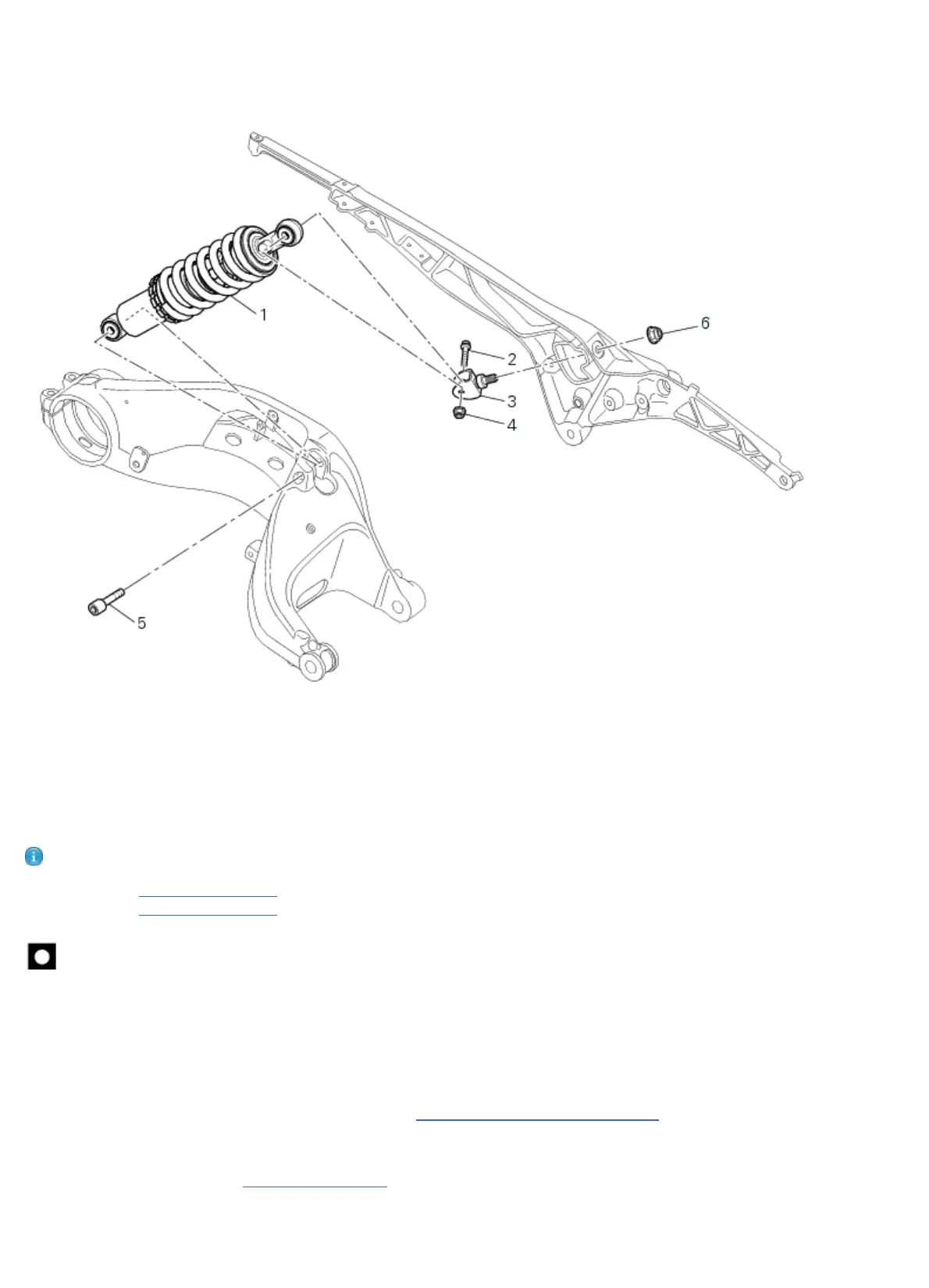

12 -Rear shock absorber assembly
1 Shock absorber
2 Screw
3 Shock absorber mounting
4 Nut
5 Screw
6 Nut
Spare parts catalogue
796
REAR SUSPENSION
796 ABS
REAR SUSPENSION
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text, but which can be found in
the exploded view diagram.
Rear suspension system
The rear suspension system uses a hydraulic monoshock absorber (1) with rebound and spring preload adjustment.
The shock absorber is pivot-mounted to the swingarm at the lower end and to the rear subframe frame at the upper end.
This system gives the motorcycle excellent stability.
To adjust the rear shock absorber refer to Sect. 4 - 3,
Adjusting the rear shock absorber.
Removal of the rear shock absorber
Remove the seat (Sect. 5 - 3, Removal of the seat).
To remove the rear shock absorber from the vehicle, undo the nut (6) and screw (5).
