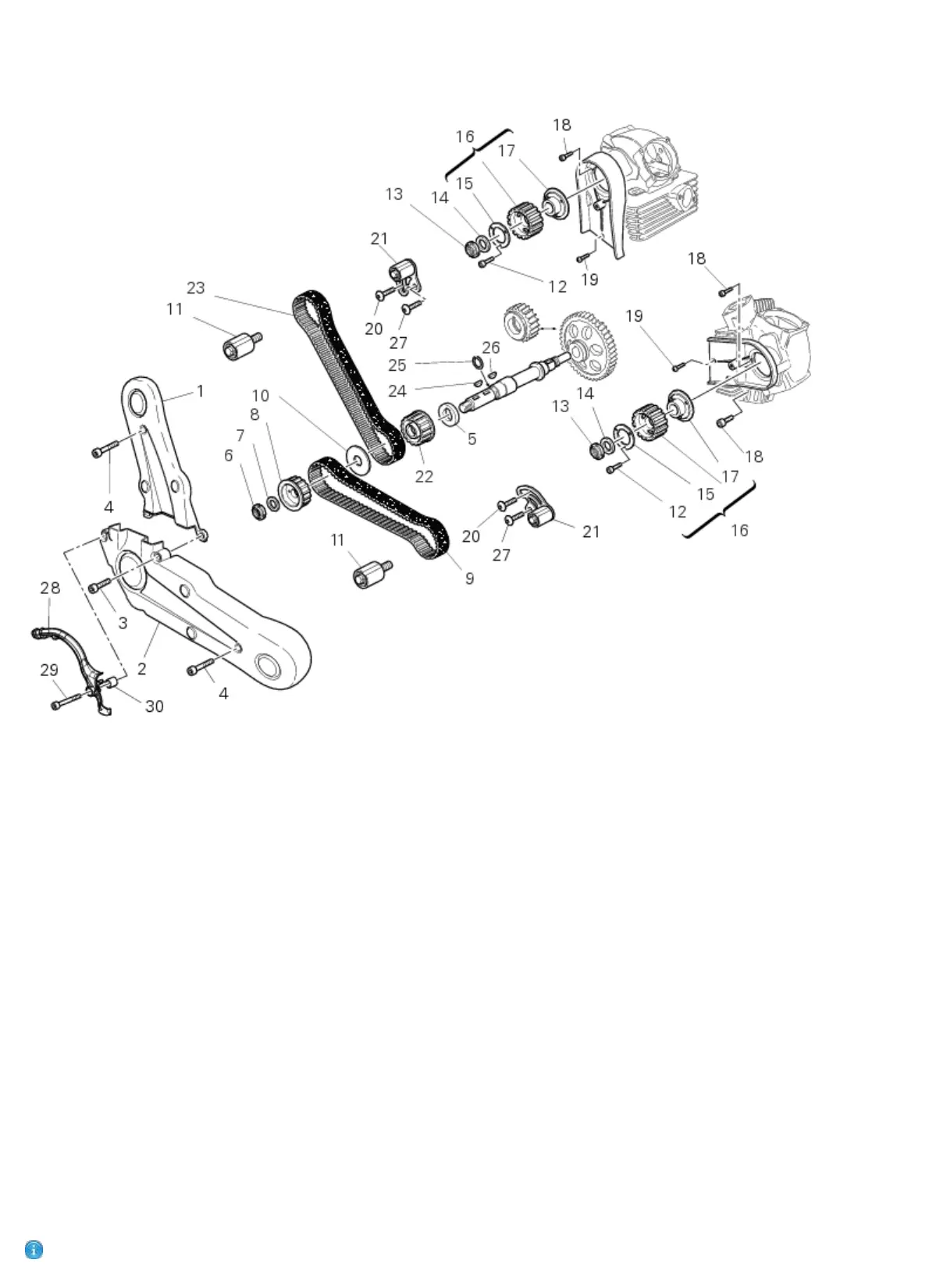

4.2 -Cylinder head assemblies: timing belt covers/timing system
1 Vertical cylinder timing belt cover
2 Horizontal cylinder timing belt cover
3 Screw
4 Screw
5 Spacer
6 Elastic stop ring
7 Washer
8 Outer timing belt driveshaft pulley
9 Horizontal cylinder timing belt
10 Intermediate spacer
11 Idler pulley assembly
12 Screw
13 Elastic stop ring
14 Washer
15 Special washer
16 Camshaft pulley
17 Flange
18 Screw
19 Screw
20 Screw
21 Tensioner pulley assembly
22 Inner timing belt driveshaft pulley
23 Vertical cylinder timing belt
24 Key
25 Circlip
26 Key
27 Screw
28 Guide
29 Screw
30 Spacer
