them, if necessary.
Note
If the two O-rings (17) need to be replaced, it is necessary to replace also the O-ring (13) of the unit (14).
Refitting the clutch transmission unit
Note
If the clutch pushrod (16) is replaced, it is necessary also to replace the O-rings (17) and (13) of the unit (14).

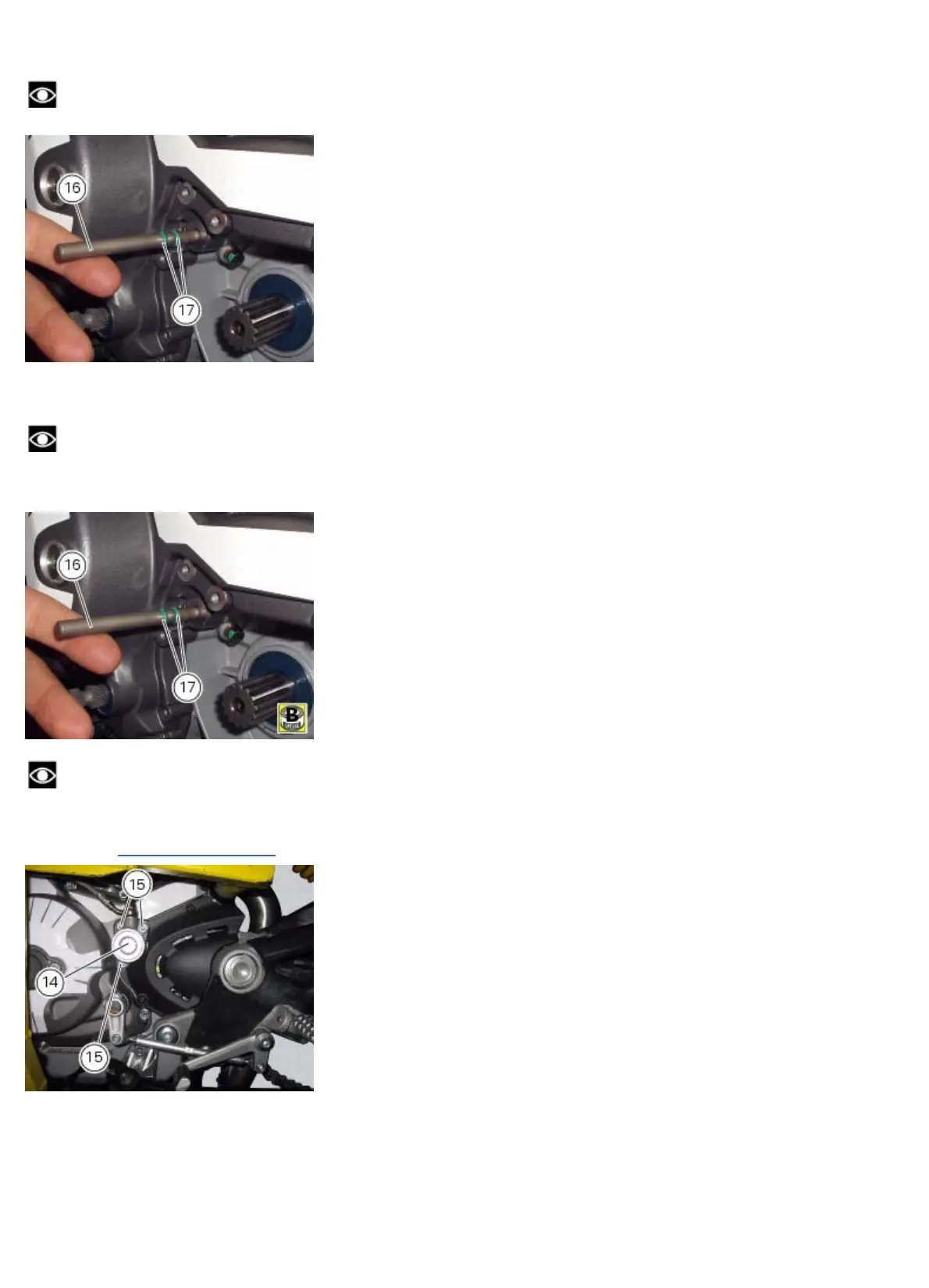

Grease and refit the clutch pushrod (16) with the two O-rings (17).
Note
If the unit (14) is replaced, it is necessary also replace the O-ring (13) and the two O-rings (17) of the pushrod (16).
Place the unit (14) on the crankcase, tighten the screws (15) to a torque of 10 Nm ±10% in the sequence 1-2-3-1
(Sect. 3 - 3,
Frame torque settings).
Locate the pipe (6) on the clutch transmission unit(14), paying attention to the pipe retainer direction in the unit (23).
